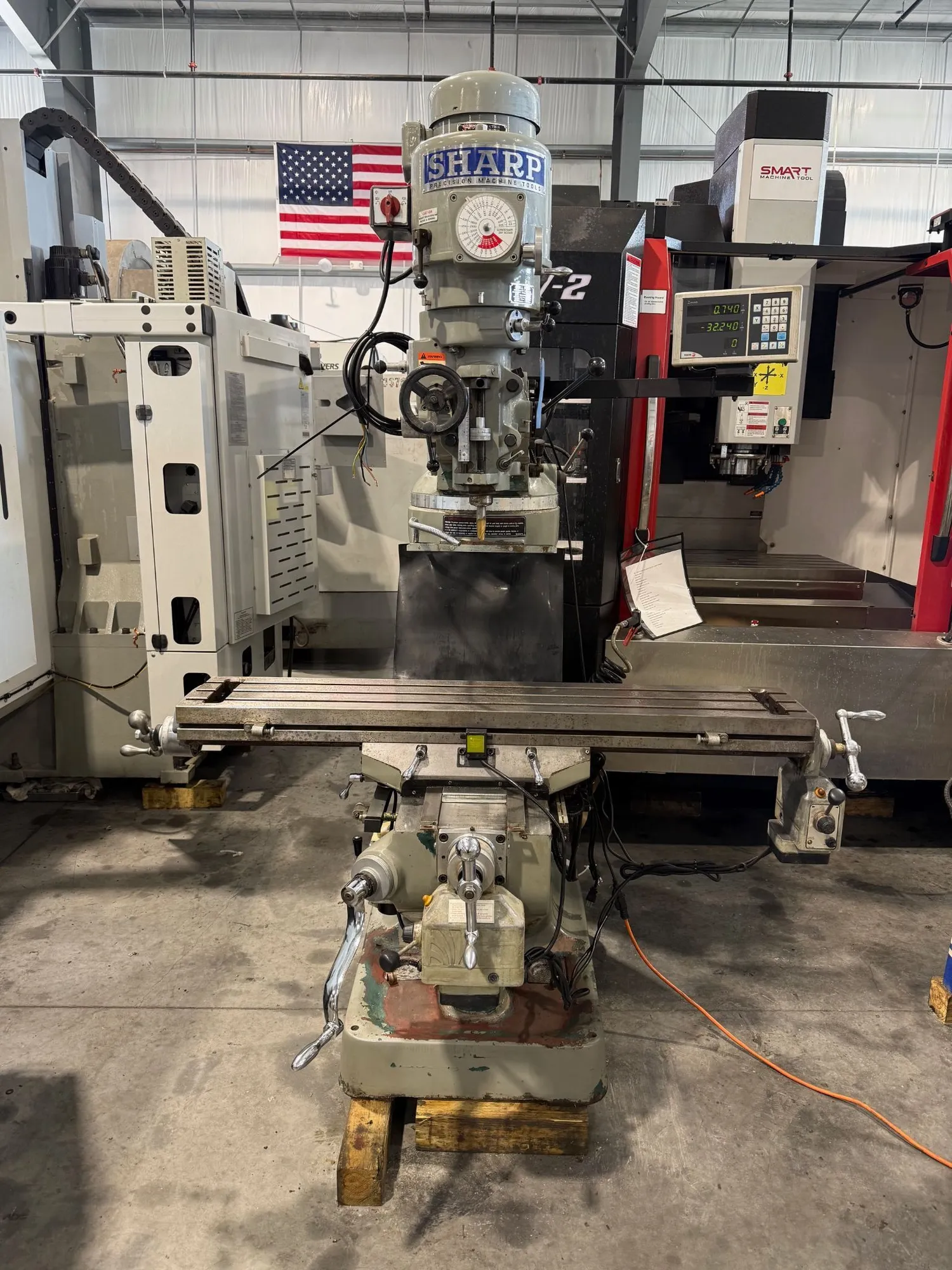

SHARP LMV-50 Vertical Milling Machine 2 Axis DRO 2009’ #8198
| Table-W | 9" | 228.6 mm |
| Table-L | 50" | 1,270 mm |
| Travel-Long | 12" | 304.8 mm |
| Travel-Cross | 37" | 939.8 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 4,500 RPM | 4,500 RPM |
| Taper | R-8 | R-8 |
| Dimensions | 60” x 55” x 83” | 60” x 55” x 83” |
| Weight | 2400 Lbs. | 2400 Lbs. |
SHARP LMV-50 Vertical Milling Machine 2 Axis DRO 2009’ #8198
Reference #8198
Model # LMV-50
Serial # 70630487
Year of manufacture- 2009’
Working surface- 9” x 50”
Number of T slots- (3) / 5/8”
Longitudinal travel- 37”
Cross travel- 12”
Ram travel- 12”
Quill travel- 5”
Knee travel- 16”
Spindle center to column 6.75”-18.5”
Vertical spindle to nose to table top- 2.13” – 18”
Spindle taper- R-8
Spindle speed range- 60 – 4,500 R.P.M.
Quill feed- .0015, .003, .006
Head tilt right to left- 90°
Head tilt up and down- 45°
FAGOR 2 Axis Digital Read out
Power feed on X & Y axis
One shot lubrication system
3 H.P. Motor 220 / 440 volt
Machine is currently wired for 220 volt / 3 phase/ 60 H.Z.
Machine weight- 2400 Lbs.
Machine dimensions- 60” x 55” x 83”
