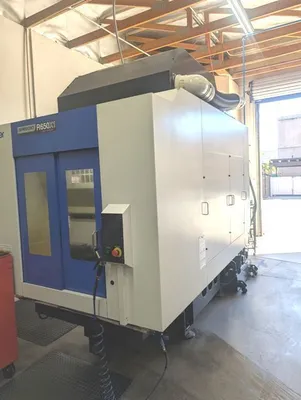

USED 2018 BROTHER SPEEDIO R650X1 CNC DRILLING & TAPPING CENTER
Overview
Description
Built new in 2017. Installed new in 2018. Less than 4000 hours of use.
Specifications
| X | 25.6" | 650.24 mm |
|---|---|---|
| Y | 15.7" | 398.78 mm |
| Z | 12" | 304.8 mm |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 22 | 22 |
| Taper | 30 | 30 |
Purchase new in 2018, build plate is 2017.

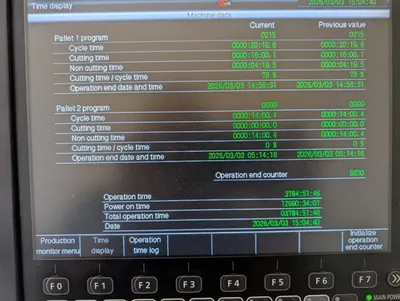

About 3900 cycle time hours.
This is a 10K rpm High Torque Big Plus machine.
Can drill 1.5" Diameter in Steel, cut tap 1"-8 in steel and run all day long at 10K rpm for the aluminum jobs... Can still run on a 30A breaker!
Equipped With
10k rpm
22 ATC
CTS package with Hydracell 435 psi pump

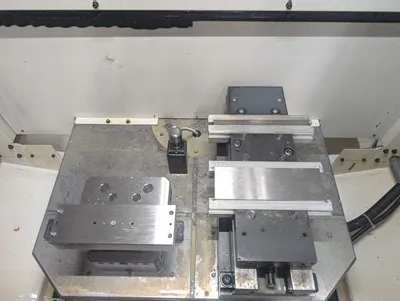

Integrated Quick Table pallet system with 3.4 second pallet change during first tool change

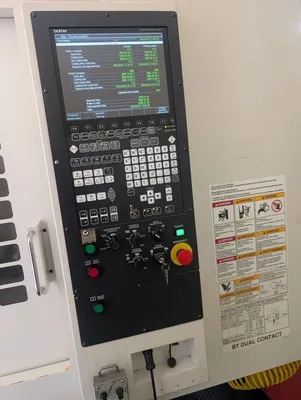

High Accuracy BII control upgrade
100 Mb standard memory with USB and ethernet ports
Auto Grease
MPG handwheel
LED work lights
Wash gun
Note:
Work holding, tool setters, mist collector not included but can possibly be negotiated in.
May have some tool holders that can be included as well.
