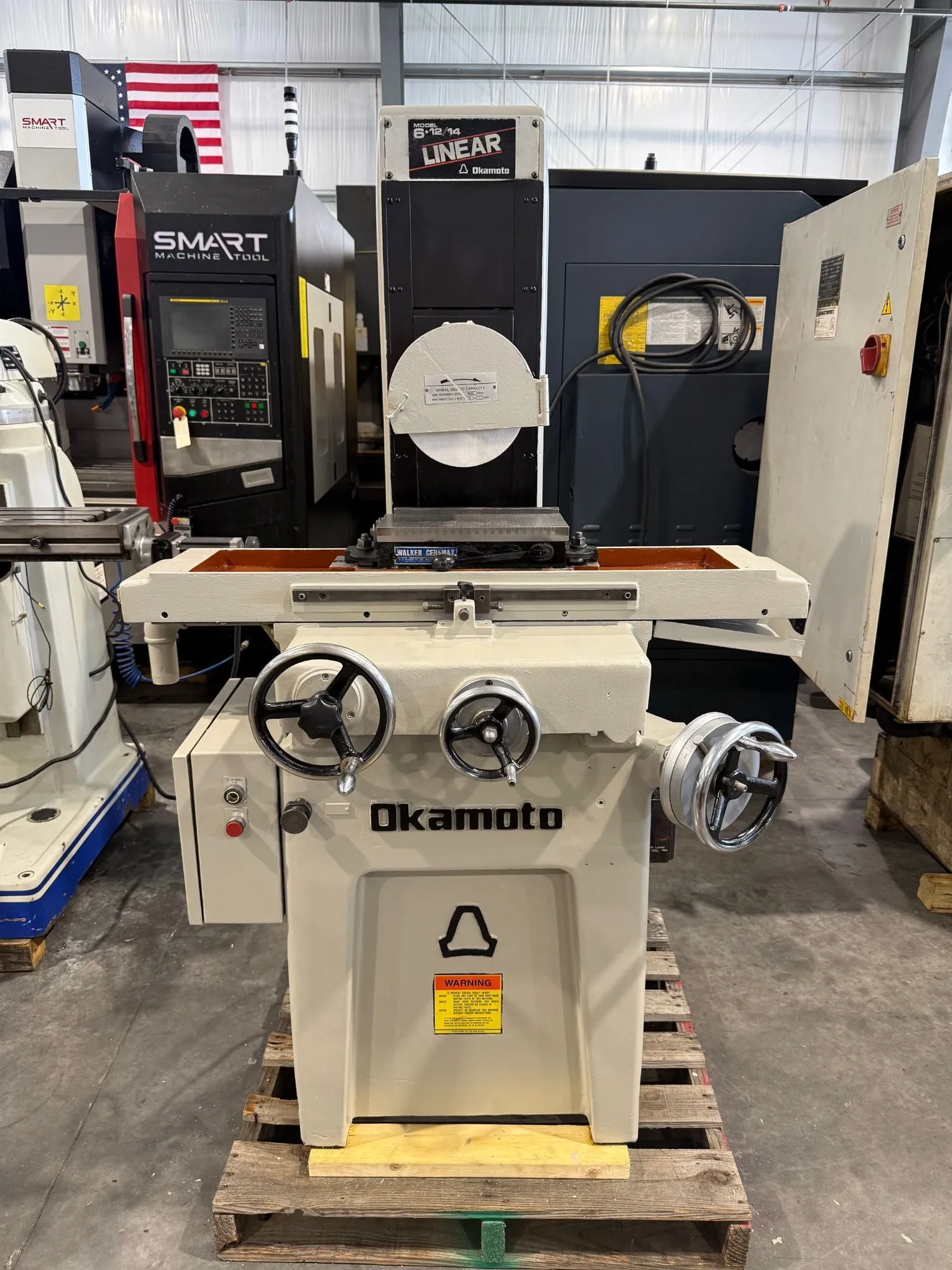

USED OKAMOTO LINEAR 612/14

OKAMOTO LINEAR 612 6” x 12” Precision Hand Feed Surface Grinder #8197
Reference # 8197
Model # L-612
Serial # 27930
Maximum width and length ground- 7.5” x 14”
Maximum distance, top of table to centerline of spindle- 18”
Maximum work height under 8" diameter wheel to top of chuck- 11”
Longitudinal travel of table per revolution of hand wheel- 4”
Cross travel of saddle per revolution of handwheel- 0.1”
Cross feed handwheel vernier reads to- 0.001”
Vertical travel of wheelhead wheel per revolution of handwheel- 0.005”
Vertical feed handwheel reads to 0.0002”
Grinding wheel- 8” diameter x 1-1/4” bore x ¾” wide (maximum capacity 1”)
