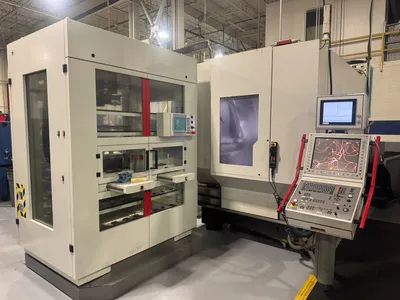

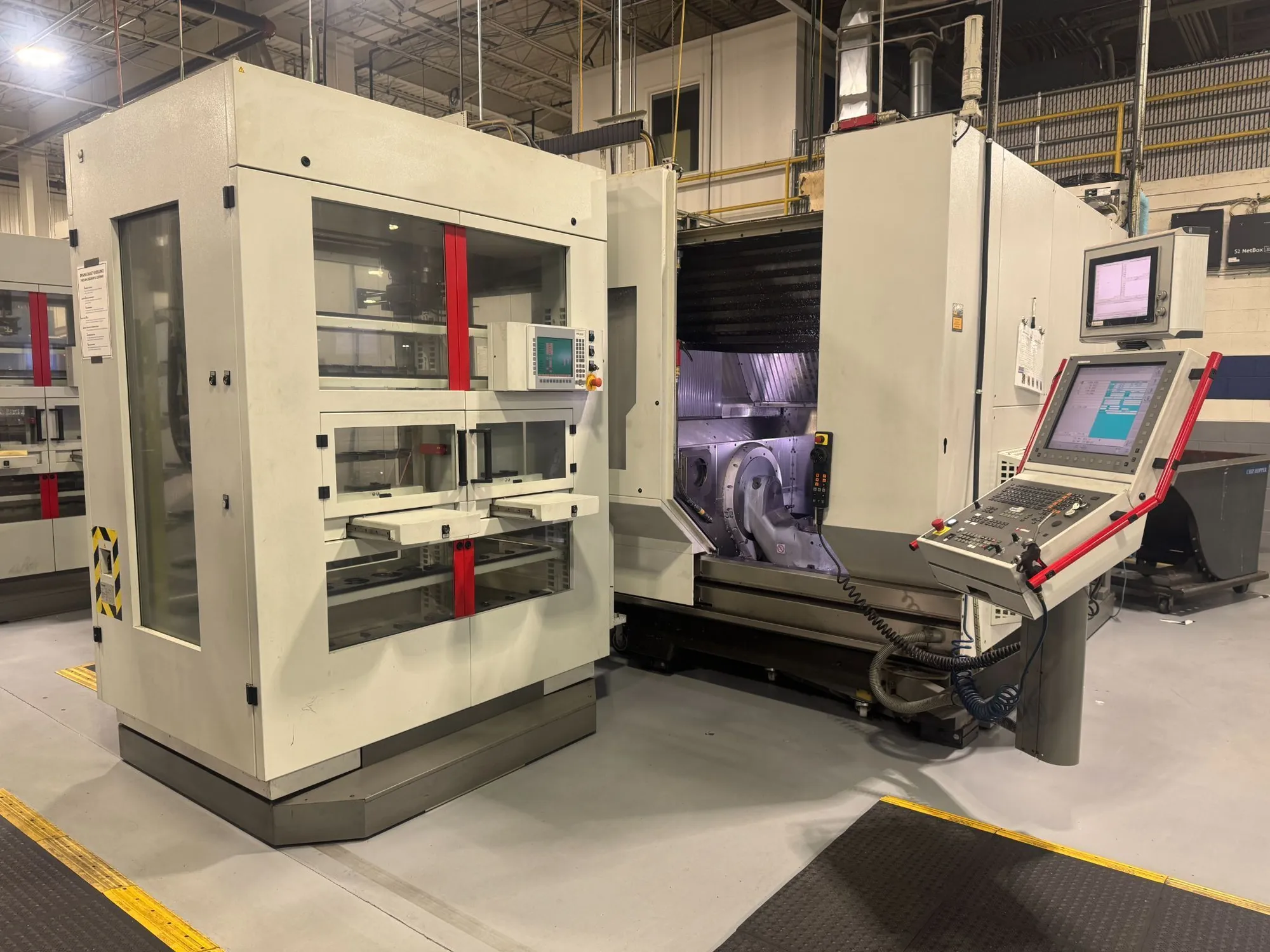

USED 2012 HERMLE C22U

Highlights: - Heidenhain iTNC-530 CNC Control - 96 Station HSK 100 Receiver Pallet Pool - (2) Loading/Unloading Stations - Glass Scales on X/Y/Z Axes - Hi-Pressure Coolant Thru Spindle - Blum Laser - Tool Break Off Detection - Capable of Running with or without Loading Station

Table Size 12.6" Diameter
Max Table Load 330 lb 149.69 kg
X-Axis Travel 17.7 in / 449.58 mm
Y-Axis Travel 23.6 in / 599.44 mm
Z-Axis Travel 12.99 in / 329.95 mm
B Axis Rotary +/- 135°
A Axis Rotation 0.001°
Spindle Taper HSK 63
Spindle Speed 18,000 rpm
ATC Capacity 55 55
Coolant Thru Spindle yes
Machine Dimensions 185" x 93" x 125"
Machine Weight 20000 lb 9,071.84 kg

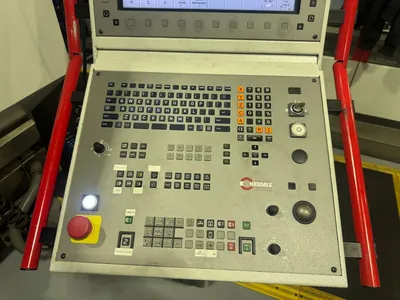

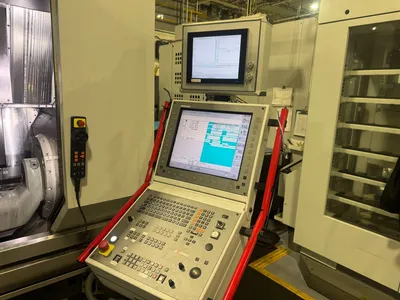

Heidenhain iTNC-530 CNC Control

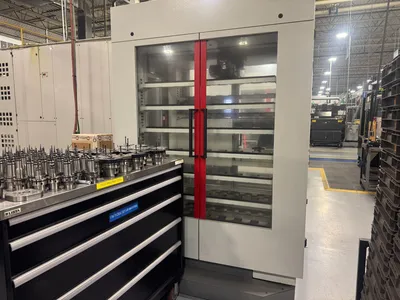

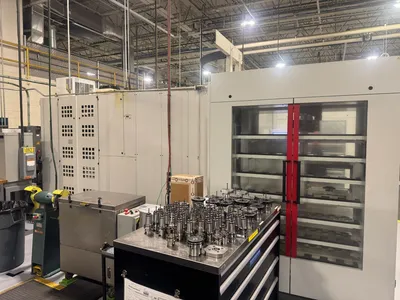

96 Station HSK 100 Receiver Pallet Pool

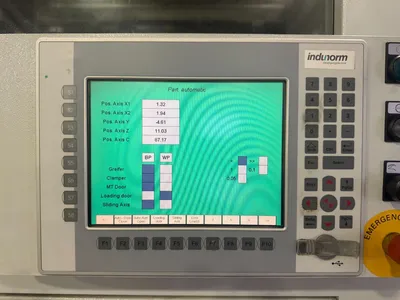

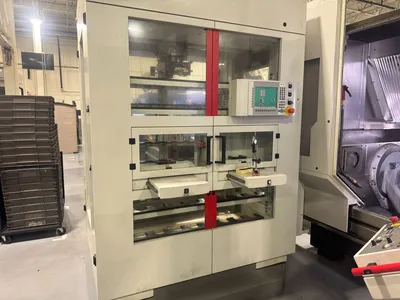

(2) Loading/Unloading Stations

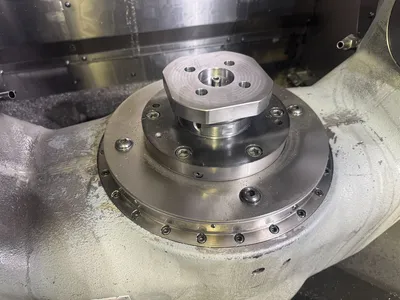

Table Receiver is HSK 100
Chip Conveyor
Coolant Tank & Pump
Glass Scales on X/Y/Z Axes
Hi-Pressure Coolant Thru Spindle
Blum Laser
Tool Break Off Detection
Capable of Running with or without Loading Station
Kinematic Opt - Hardware

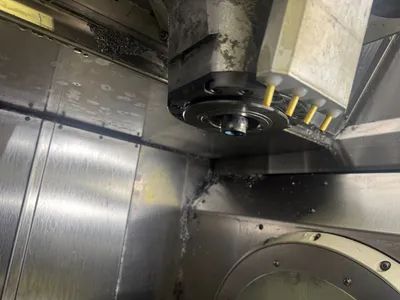

Spindle 18,000 1/min HSK-A63
Linear Axis Dynamic Version

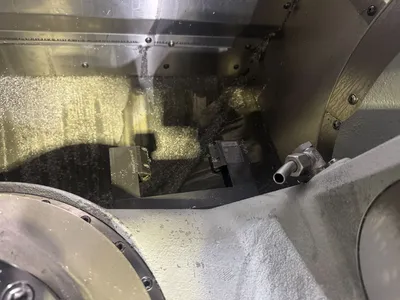

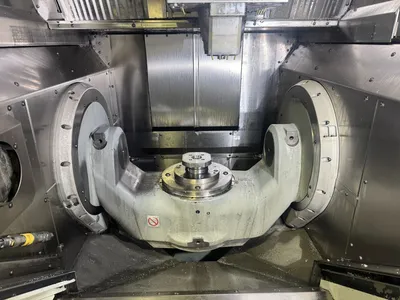

NC swivel rotary table Ø 320
Torque drive
A-axis dynamics package
Internal coolant supply 80 bar
Blowing air through the center of the spindle
Swarf Spray Gun
Bed Wash
Oil mist extraction
Automatic Cabin Door
Electr. iTNC Heat Compensation
Electr. iTNC manual control module
