MULTICAM V SERIES Plasma Cutter, 2012 model, used. Features a 60" cut width and 120" length, with cutting speed at 800 and rapid traverse speed of 1200. Ideal for precise metal cutting needs.
| Cut-Width | 60" | 1,524 mm |
| Cut-Length | 120" | 3,048 mm |
| Plasma Power | 25 a | 25 A |
| Cutting Speed | 800 ipm | |
| Rapid Traverse Speed | 1200 ipm | |
| Control | CNC | CNC |
Make: MultiCam
Model: V-Series
Year: 2012
Table Size: Approx. 4' x 8'
Voltage: 220V
Phase: 3 Phase
Frequency: 50 / 60 Hz
Amps: 25 A
Pump Motor: Bosch Rexroth
Horsepower: 30 HP
Motor Speed: 1775 RPM
Voltage: 230 / 460 VAC
Full Load Amps: 64 / 37 Amps
Frame Size: 286TYZ
Service Factor: 1.15
Motor Efficiency: 91.7% NEMA Nominal
Power Factor: 82%
Motor Enclosure: TEFC
Bearing (Drive End): 6211
Bearing (Opposite Drive End): 6309

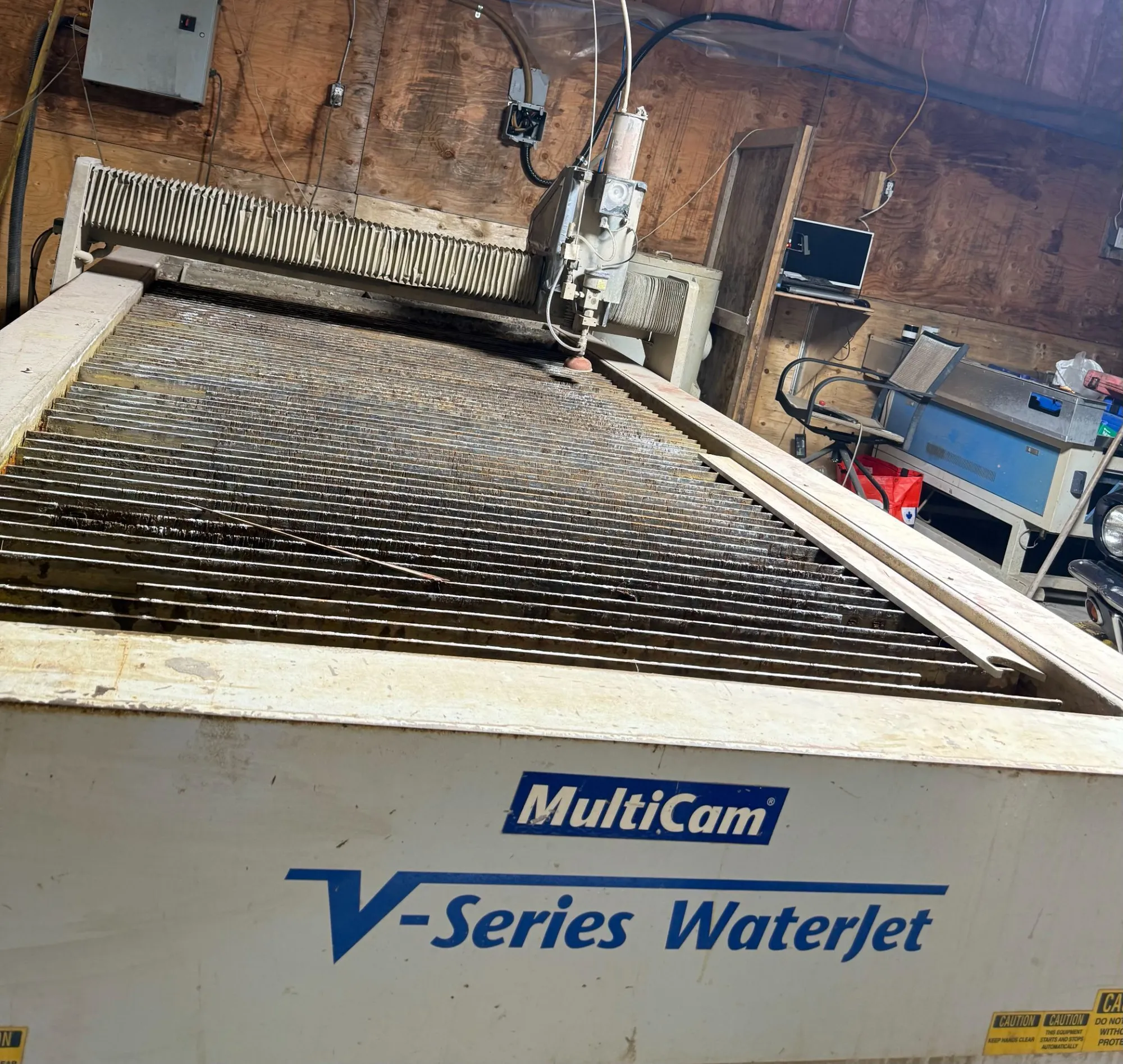

MultiCam V-Series CNC Waterjet Cutting Table
High-Pressure Intensifier Pump Unit
Bosch Rexroth 30 HP Drive Motor
Water Filtration System
Operator Control Computer & Monitor
Water Table Cutting Bed
High Pressure Plumbing & Gauge Assembly
