USED DORIAN TOOL D35CXA Holders

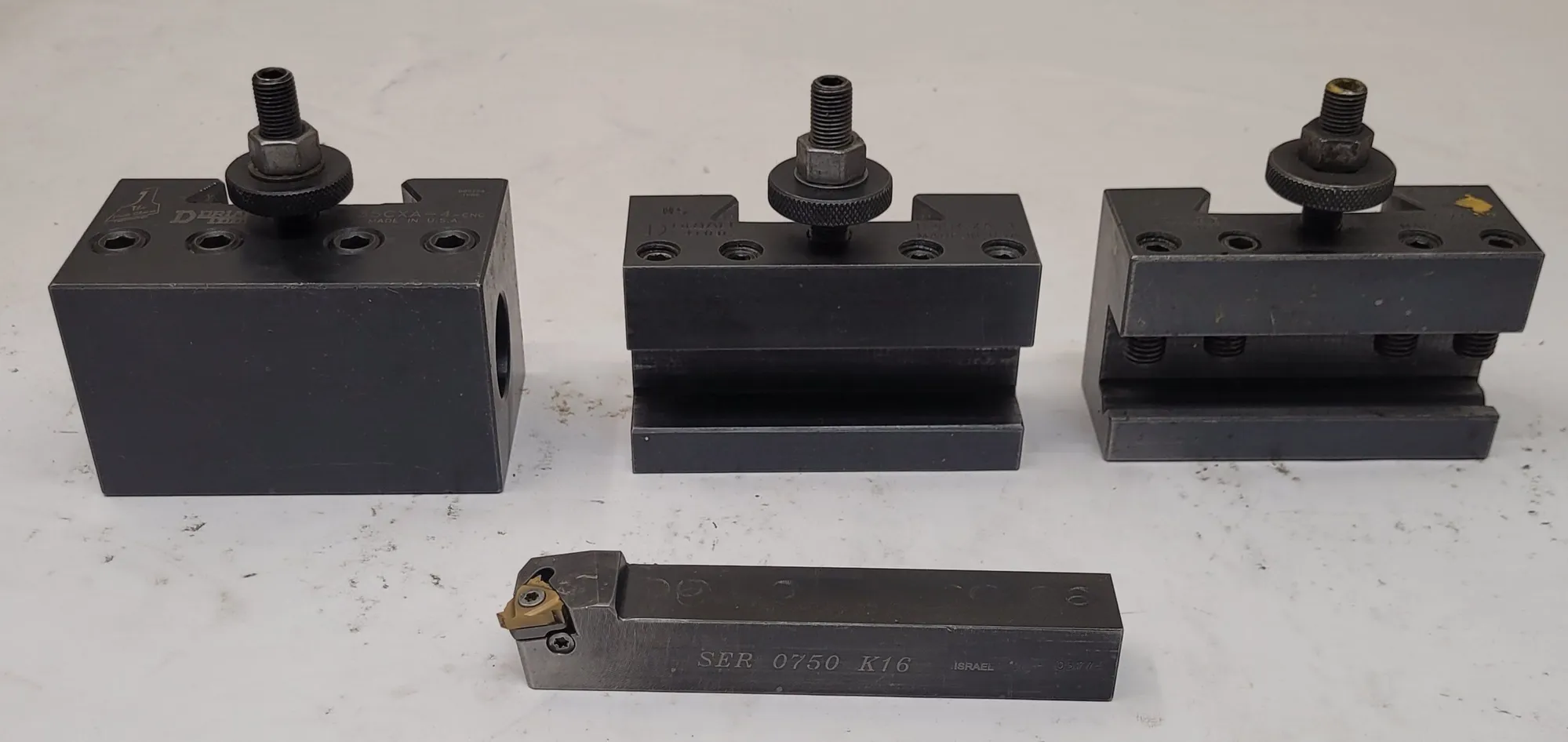

Dorian Tool – Set of 3 Tool Holders w/ Iscar Tool

Brand: Dorian Tool
Set of 3
Part Numbers Include:
D35CXA-1
Holder Number: #1 (Turning & Facing)
Series: CXA (for 14" to 17" swing lathes)
Tool Capacity: 3/4" to 1" square shank
Dimensions: 3.75" Length (C) x 2.5" Height (E) x 1.75" Width (D)
Centerline Height: 2.29" (Maximum)

D35CXA-2
Lathe Swing: 14 to 17 inches
Shank Capacity (Square): 3/4" - 1"
Boring Bar Capacity: Up to 1"
Overall Width: 3.75"
Overall Height: 2.5"
Maximum Centerline Height: 2.29"
Features: V-Groove for versatility

D35CXA-4-CNC – Boring Bar Holder
Lathe Swing: 14" – 17”
Dimensions:
L – 2-1/4” / W – 3-3/4” / H – 2-1/4”
Bore: 1”

Also includes:
1 – Iscar SER 0750 K16 Tool

Shank Height: 3/4″
Body Material Steel
Shank Width: 3/4″
Tool Type External Non-Rotating Threading Tools
Cutting Direction (HAND) Right Hand
Measurement Type Inch
Application: External Grooving/Threading
Functional Width: 3/4″
Functional Length: 5″
