52" KING VERTICAL BORING MILL - 5-Position Turret Head - Side Head - Swiveling Ram Head w/7.5 HP Internal Grinding Spindle - Threading Capabilities - Digital Readouts
| Table Dia | 52" | 1,320.8 mm |
| Swing | 56" | 1,422.4 mm |
| Work Ht-U/R | 44" | 1,117.6 mm |
| Power | 25 hp | 18.6 kW |
| Dimensions | 180" x 132" x 135" | 180" x 132" x 135" |
| Weight | 47000 | 47000 |

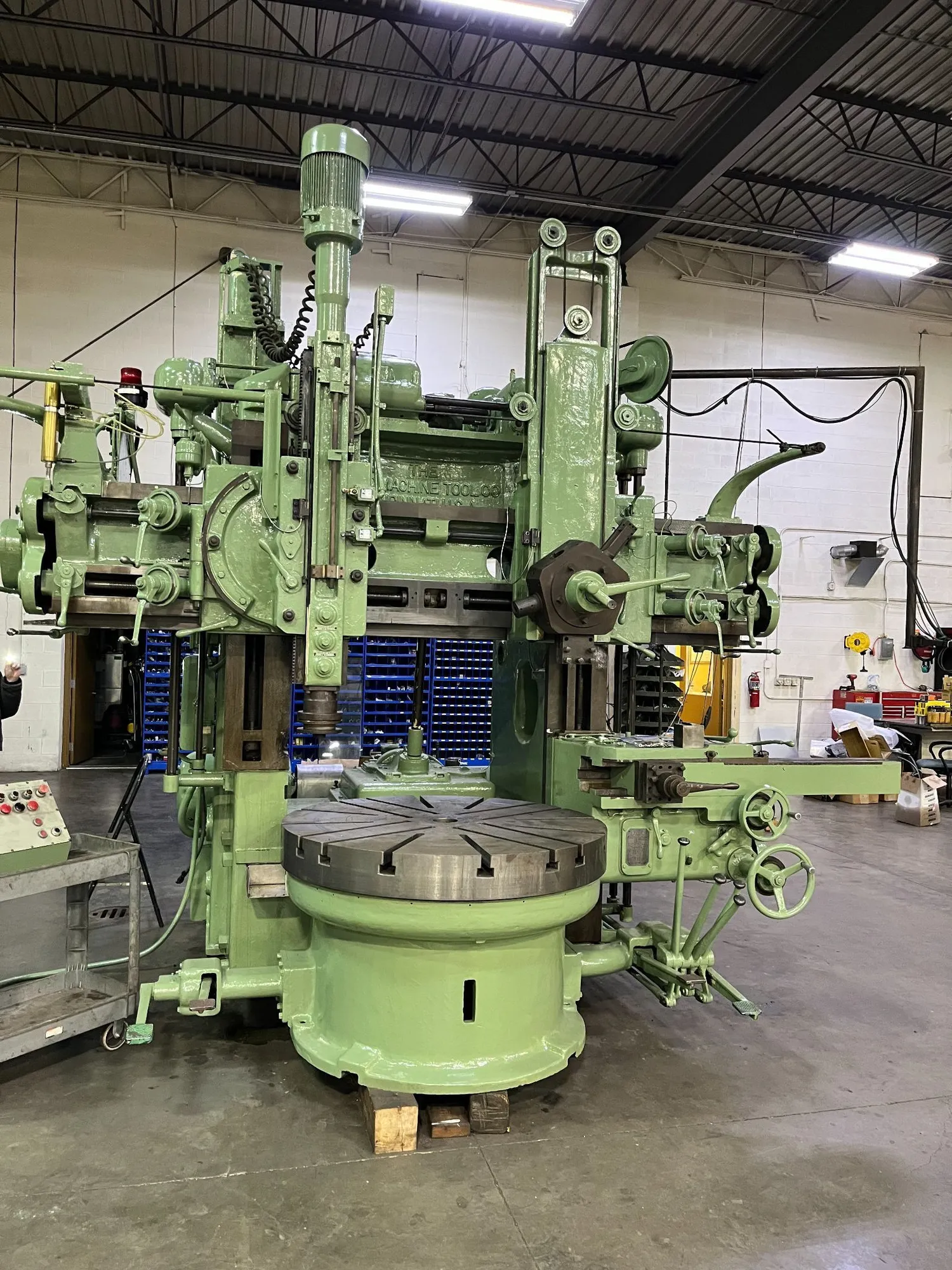

52" KING VERTICAL BORING MILL
Serial No 217/1589, Model 52
EQUIPPED WITH:
Newall DP900 Digital Readouts
52" T-Slotted Table
(1) Ram-Head w/7.5HP Mounted Grinding Spindle
(1) 5-Position Turret-Head (Swiveling-Type)
Threading Capabilities
Side Head - Power Rail Elevation
CATALOG SPECIFICATIONS:
Table Diameter 52"
Swing, Maximum 56"
Height Under Rail, Maximum 42"
Ram-Head Travel, Vertical 40"
Turret-Head Travel, Vertical 35"
Side-Head Travel, Vertical 41.5"
(16) Table Speeds, Range 2.2 to 72 RPM
(16) Feeds, Range .0025 to .500 IPR
(16) Thread Changes, Range 2 to 16 TPI
Main Motor, Horsepower 25 HP
Electrical System 460/3/60
Floor Space Required, W X D 11'8" X 9'4"
Overall Height 12'4"
Weight, Approximately 35000 LBS
NOTE: UNDER POWER CINCINNATI OHIO
