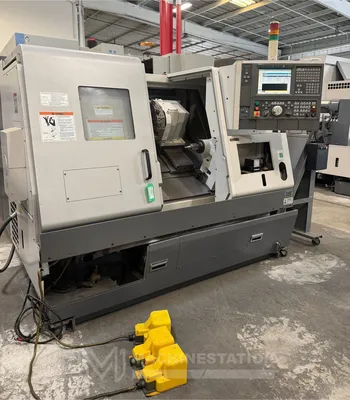

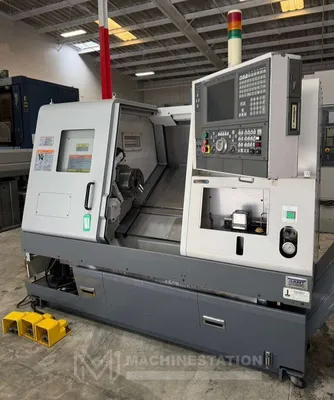

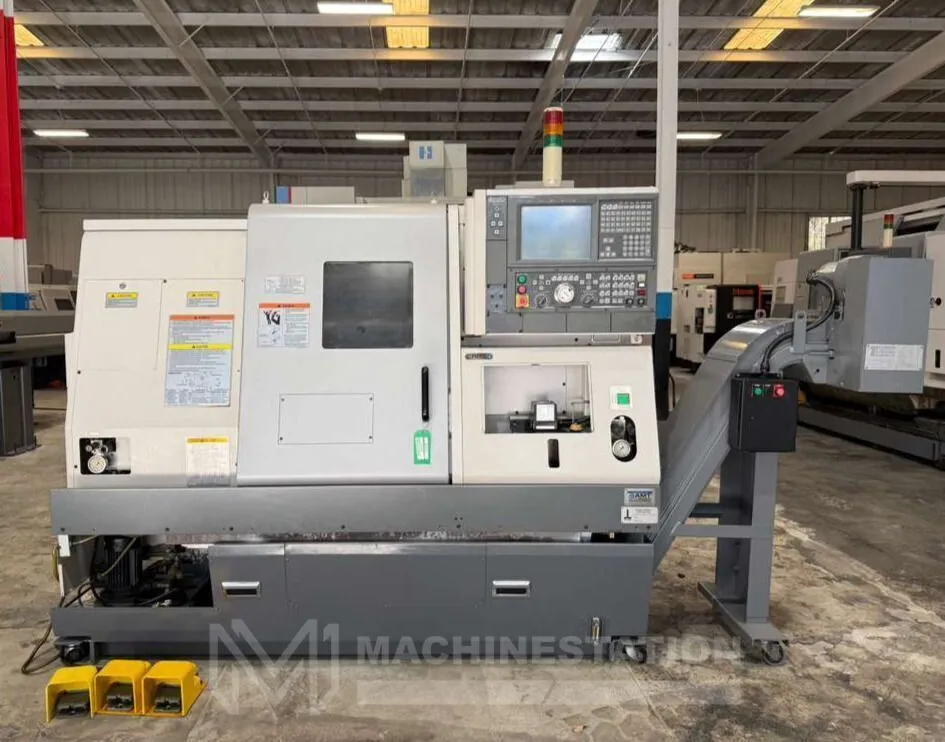

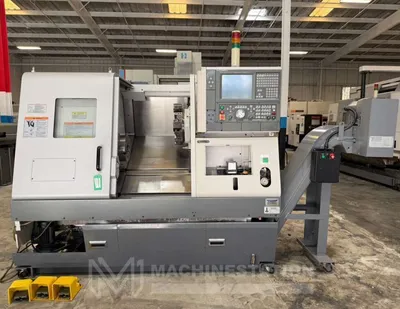

USED 2006 OKUMA CAPTAIN L-370
Overview
Specifications
| Swing | 20.86" | 529.84 mm |
|---|---|---|
| Machining Length | 19.68" | 499.87 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 2.54" | 64.516 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 3,800 RPM | 3,800 RPM |
| Turning Dia | 14.57" | 370.08 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Okuma OSP-P100 CNC Control) | CNC (Okuma OSP-P100 CNC Control) |
| Dimensions | 88″ x 68″ x 70″ High | 88″ x 68″ x 70″ High |
| Weight | 9,500 lbs Approx. | 9,500 lbs Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

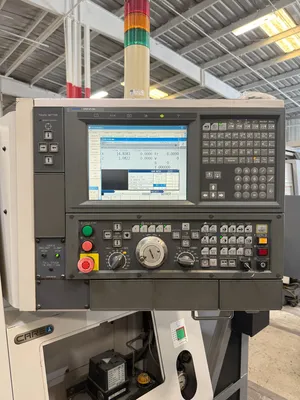

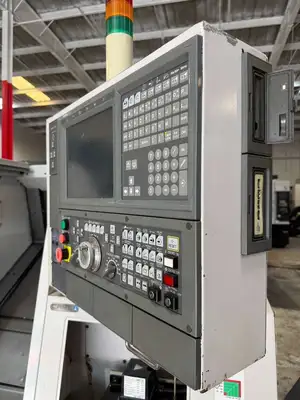

OSP-P100 CNC Control

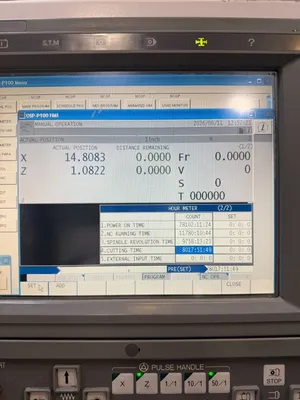

8,017 Hours Cutting Time
USB Ports
Floppy Drive
Automatic Lubrication system
Coolant Tank
Capacity:
Max Turning Diameter : 14.57″
Max Swing Over Bed : 20.86″
Max Turning Length: 19.68″
Max Bar Capacity : 2.54″
Distance Between Center: 20.0″
Travels:
X Axis Travel : 10.23″
Z1 Axis Travel : 20.47″
Feedrate:
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 984 IPM
Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.15″
Spindle Speed: 3800 RPM
Spindle Motor: 20 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second
Tailstock:
Tailstock Body Travel: 14.3″
Tailstock Taper: MT-5
Tailstock Quill Dia.: 3.54″
Tailstock Quill Travel: 3.93″
General:

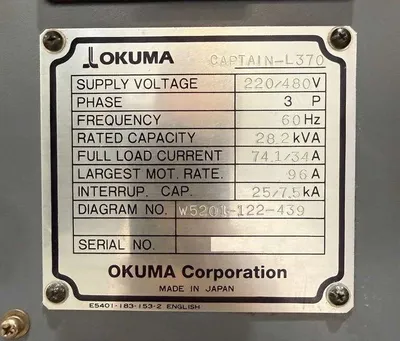

Power Source: AC 220v/480v / 3-Phase / 60 Hz
Power Requirement: 28.2 kva
Machine Dimensions: 88″ x 68″ x 70″ High
Machine Weight: 9,500 lbs Approx.
Equipped With

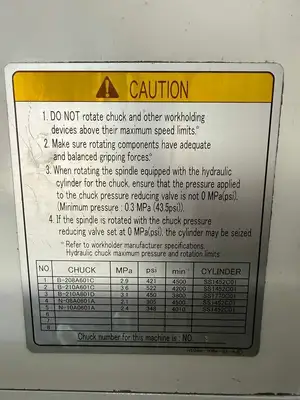

10″ 3-Jaw Kitagawa B-210 Hydraulic Chuck
12-Station Automatic Turret
Hydraulic Tailstock with Power Quill
Tool Presetter

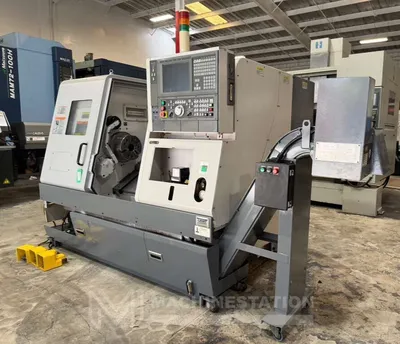

Turbo System Chip Conveyor
Foot Operated Control for Chuck and Tailstock
(2) Boring Tool Holders Equipped on Turret (As Shown in the Images)
