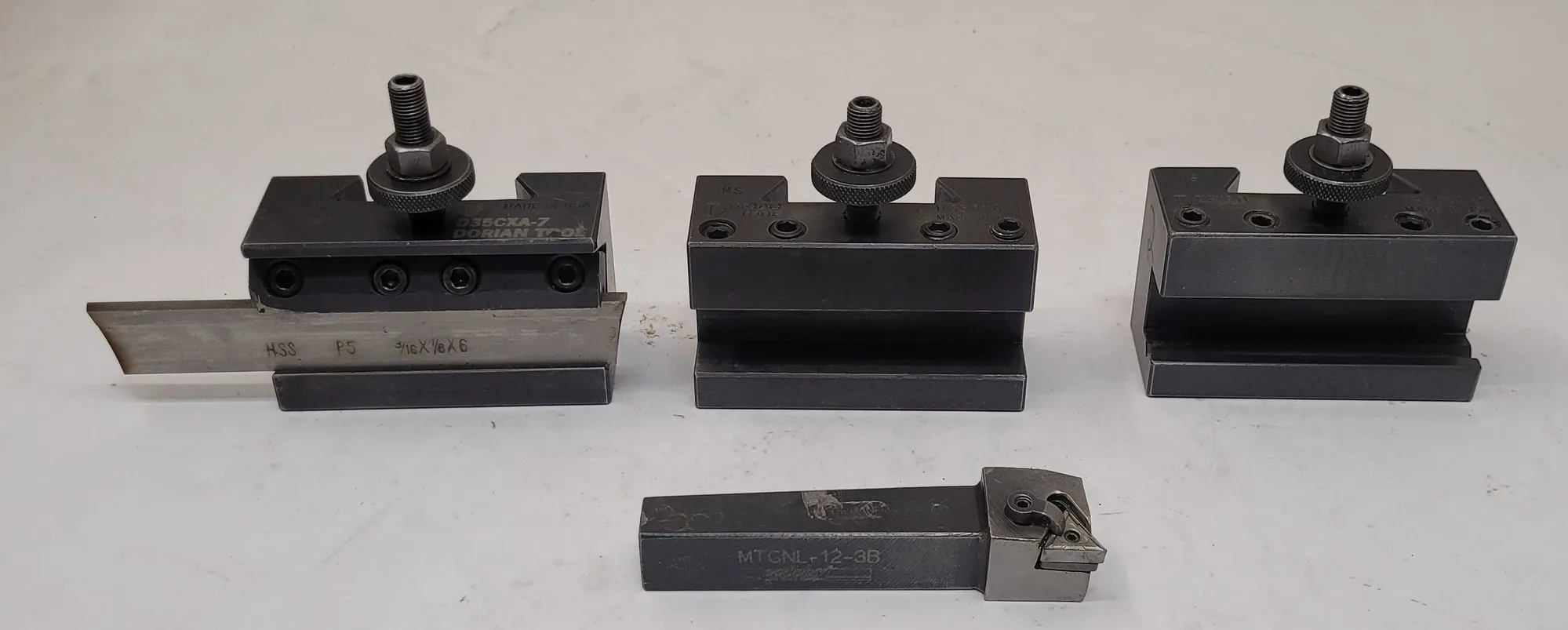

USED DORIAN TOOL D35CXA Holders

Dorian Tool – Set of 3 Tool Holders w/ Carboloy Tool

Brand: Dorian Tool
Set of 3
Part Numbers Include:
D35CXA-1
Holder Number: #1 (Turning & Facing)
Series: CXA (for 14" to 17" swing lathes)
Tool Capacity: 3/4" to 1" square shank
Dimensions: 3.75" Length (C) x 2.5" Height (E) x 1.75" Width (D)
Centerline Height: 2.29" (Maximum)

D35CXA-2
Lathe Swing: 14 to 17 inches
Shank Capacity (Square): 3/4" - 1"
Boring Bar Capacity: Up to 1"
Overall Width: 3.75"
Overall Height: 2.5"
Maximum Centerline Height: 2.29"
Features: V-Groove for versatility

D35CXA-7
Compatible Blade Series: SGIH 26 (2mm - 6mm)
Max Shank Size: 1" (SGIH 26-6)
Lathe Swing: 14" - 17"
Overall Height: 2.5" (63.5mm)
Overall Width: 3.75"
Max Centerline Height: 2.04"
Holder Type: Reversible/Cut-off

Also includes:
1 – Seco Carboloy MTGNL-12-3B Tool
Shank Size: .750” x .750” (19.05 mm)
Overall Length (OAL): 4.50”
