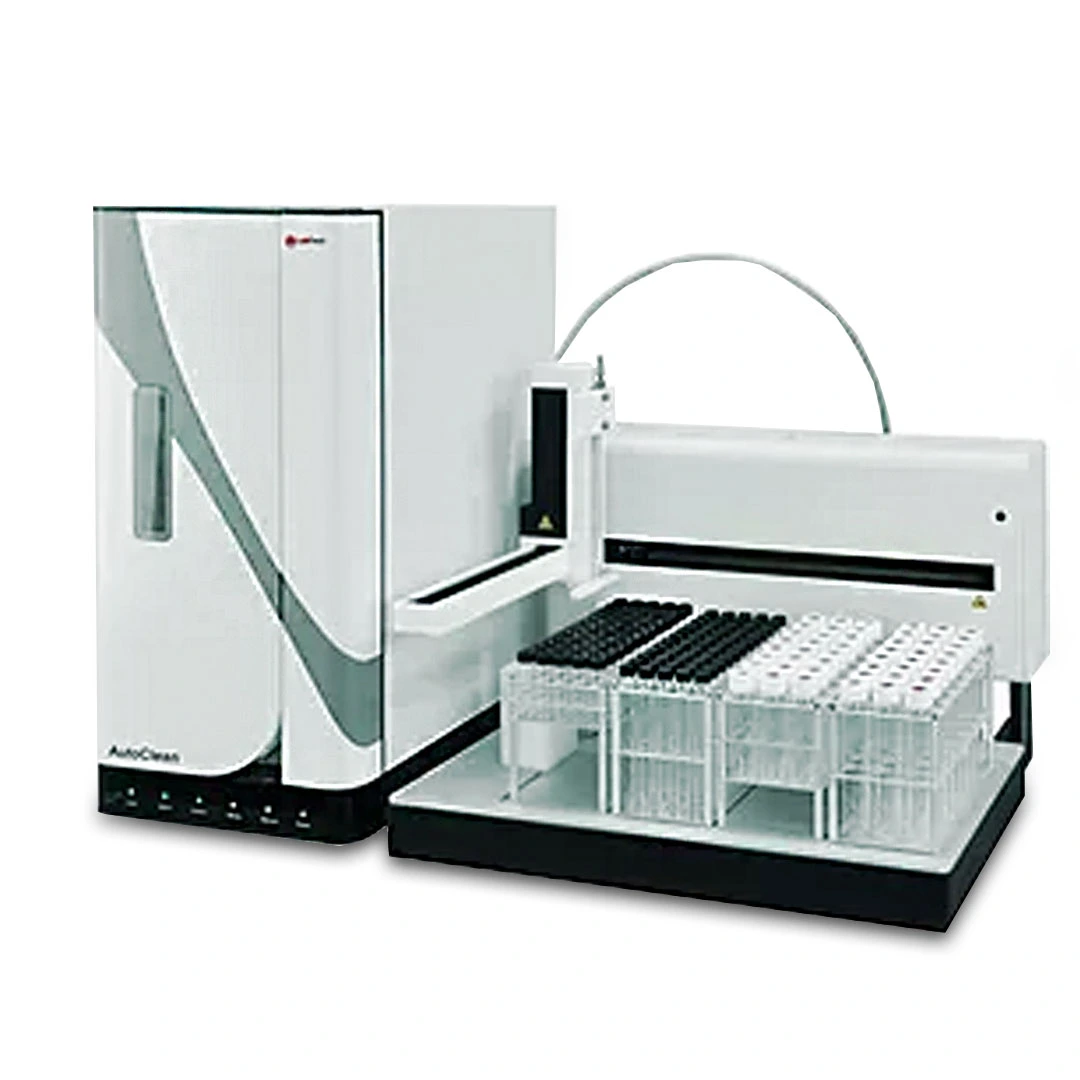

This is a new LabTech AutoClean US-MP001F GPC Automated Gel Permeation Chromatography Clean-Up System.
The AutoClean system was designed with the principle of gel permeation chromatography (GPC) to separate and fractionate solutes according to their sizes in a solution. It effectively removes the macromolecular matrix and interferences of small molecules. As a result, the sensitivity and accuracy of the subsequent analysis are considerably enhanced. The lifespan of the instrument analyzing the sample is also increased. The AutoClean system conforms to EPA3640 and has been widely applied in environmental monitoring, agricultural testing, food testing and life sciences.
Features:
Automate sample preparation procedures including injection, separation & purification, collection and solvent recovery
User friendly software, with intuitive graphic interface
High precision dual plunger infusion pump
High efficiency stainless steel gel purification column saves time and solvents
Automatic needle rinse on inner and outer surface minimizes cross contamination
Fraction collection can be programmed by time, peak, and/or a combination of six collection methods
Solvent recovery function increases savings by reducing solvent use
System can be integrated with the SepLine-S1 Auto SPE
A variety of vial sizes and rack configurations are available
Financing Available
Includes:
Double-piston Pump
Precision Syringe Pump
Autoclean Streams Manager with Solvent Recovery
UV/Vis Detector
Double-Piston Pump :
Double-piston design
Flow Rate Range: 0.01ml – 50.00ml/min
Working Pressure up to 20MPa
Precision Syringe Pump:
Accurately Controls Sample Volume
Standard 5ml Syringe
Autoclean Streams Manager:
Solvent、Fraction、Waste Switching
Standard Sample Loop 2ml
UV/Vis Detector :
Wavelength: 190-600nm
Analytical Flowcell
Warranty Coverage
