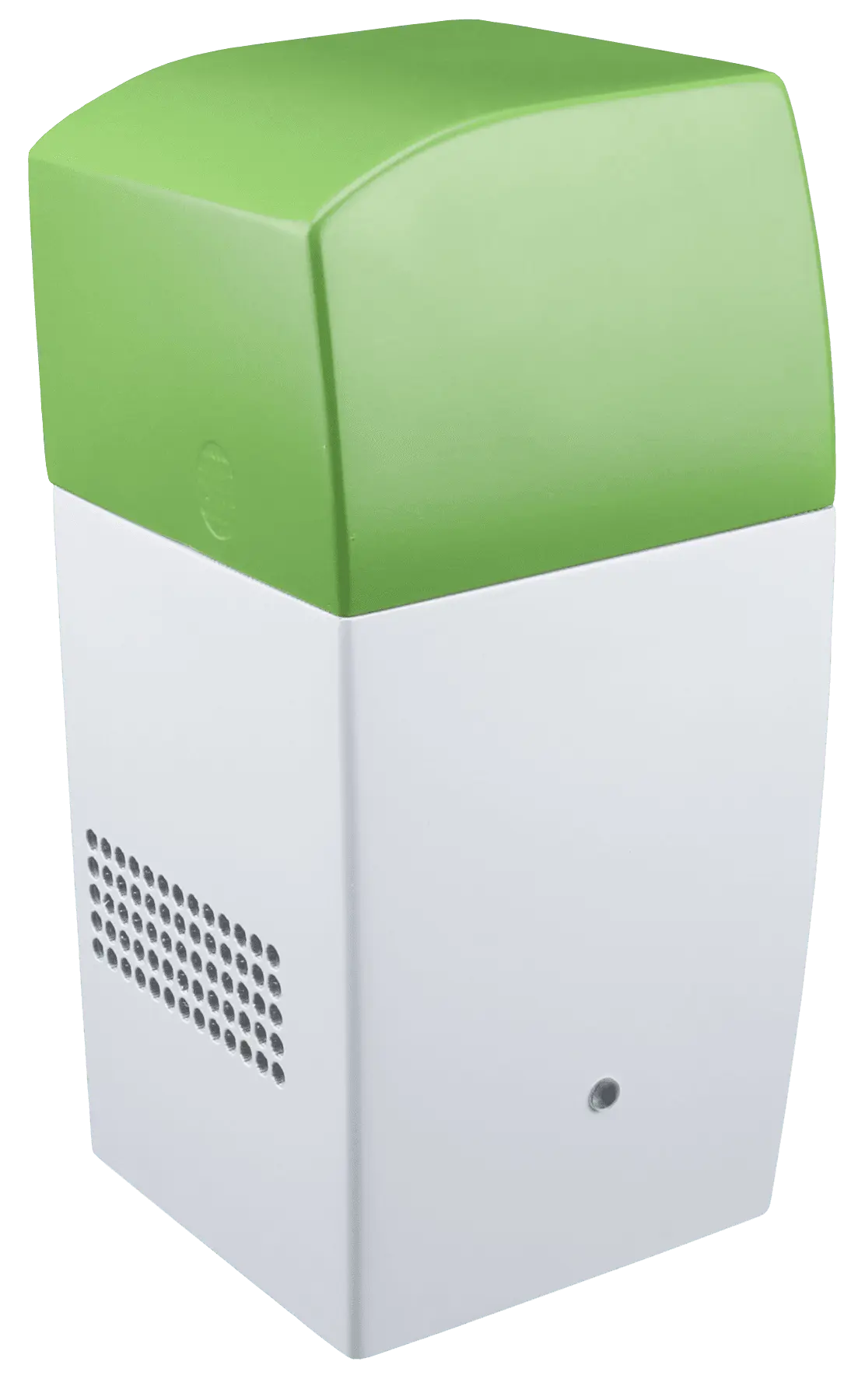

PC3X Peltier Heater/Cooler for NexION 2000/1000

The PC3X is a compact, Peltier-heated or cooled inlet system which incorporates the ESI cyclonic spray chamber. In cooling mode the PC3X cools the outer walls of the cyclonic spray chamber, reducing the water or solvent vapor loading on the plasma, resulting in enhanced stability and performance. In heating mode, sensitivity can be improved for low flow rate applications.
Temperature control from -10 °C to +80 °C
Controlled directly through Syngistix
Thermal stabilization of spray chamber improves long-term stability
Last set temperature saved for stand-alone operation
Remote monitoring and control
The PC3X for cyclonic spray chambers is included in the NexION 2000 ICP-MS Core Configuration’s Sample Introduction Kit (N8150035), the Productivity Configuration’s Sample Introduction Kit (N8150036), and the Semi Configuration’s Sample Introduction Kit (N8150037).

This PC3X Peltier heated and cooled inlet system, which includes drain tube, mounting bracket, and two M4x20 screws, is for cyclonic spray chambers used with NexION 1000 and 2000 ICP-MS series instruments. Does not include spray chamber.

Product Compatibility: NexION 2000, NexION 1000
Product Brand Name: Peltier
Product Group: Temperature Controlled Spray Chambers
