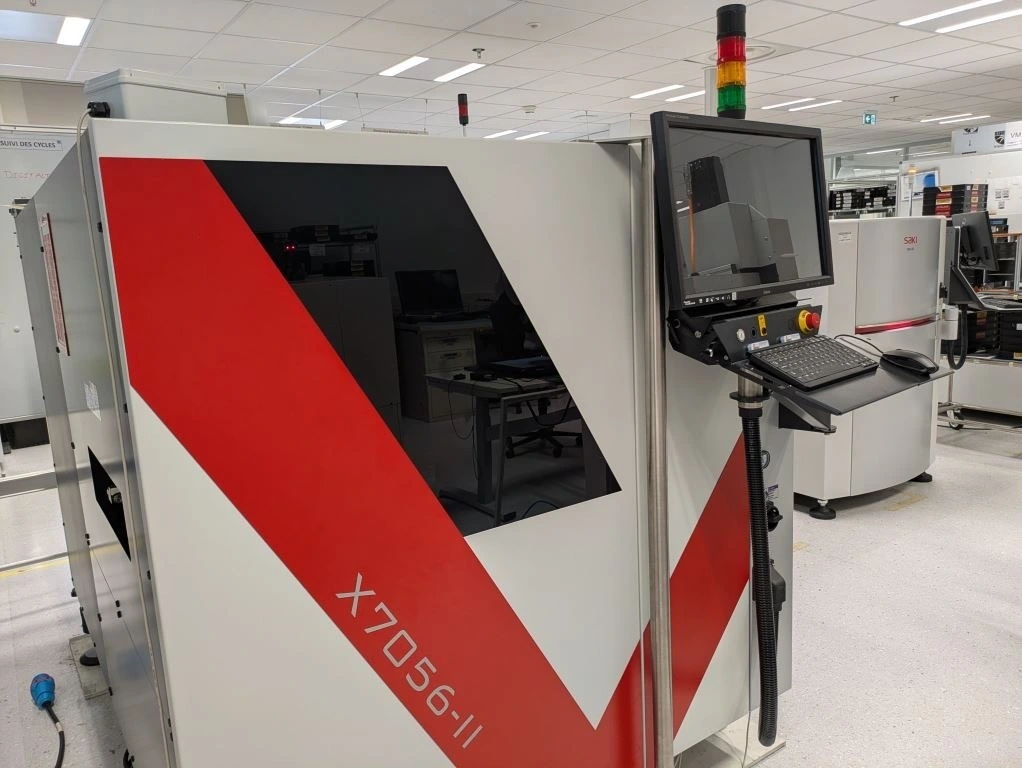

USED 2023 VISCOM X7056-II

We are pleased to offer on behalf of Airbus a VISCOM X7056-II 3D X-ray + AOI inspection system – practically new, with only 1,500 hours of operation. This high-performance system is immediately available at Airbus Toulouse and ready to integrate into your production line.

Key Highlights:
• Automatic 3D X-ray (AXI) + 3D optical inspection (AOI)
• Option Z laser included (no calibration plate)
• Original new value: €460,000 (with Z option)
• Our price: EXW Toulouse – mint condition, as new
• Immediate delivery, fully operational

Technical Specs:
• Housing: 1,493 x 1,631 x 2,251 mm (W x H x D)
• FPD detector, 14-bit grayscale, 6–32 μm/pixel

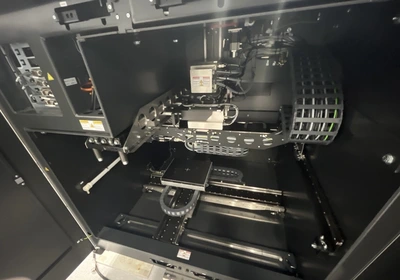

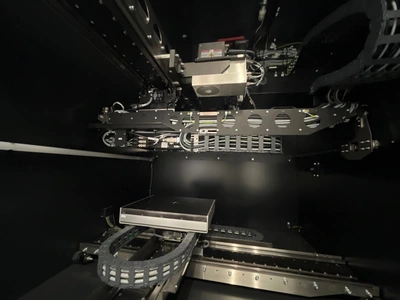

• 1 FPD on XY table + 5 stationary FPDs
• Supports 2D / 2.5D / 3D X-ray inspection, AOI/AXI combined

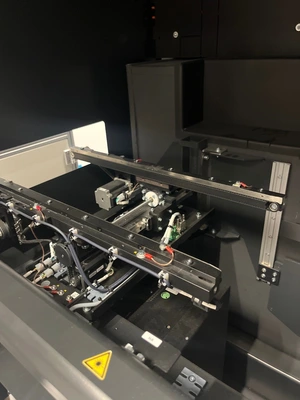

• Revolutionary xFastFlow PCB transfer: change PCBs in 4 seconds max
• Integrated Viscom vVision/EasyPro software for fast program generation
• Traceability, multi-line verification, global calibration

Applications:
• Solder joints inspection (BGA, QFN, etc.)
• Detection of bridges, bubbles, missing solder
• Component misplacement or polarity errors
• SMD and THT assembly verification

This is a rare opportunity to acquire a high-end Airbus-approved inspection system at ~40% of new price. Availability is limited – first come, first served.
