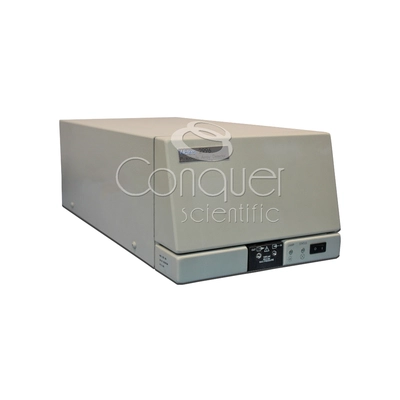

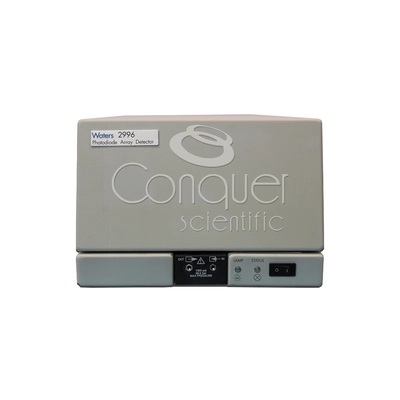

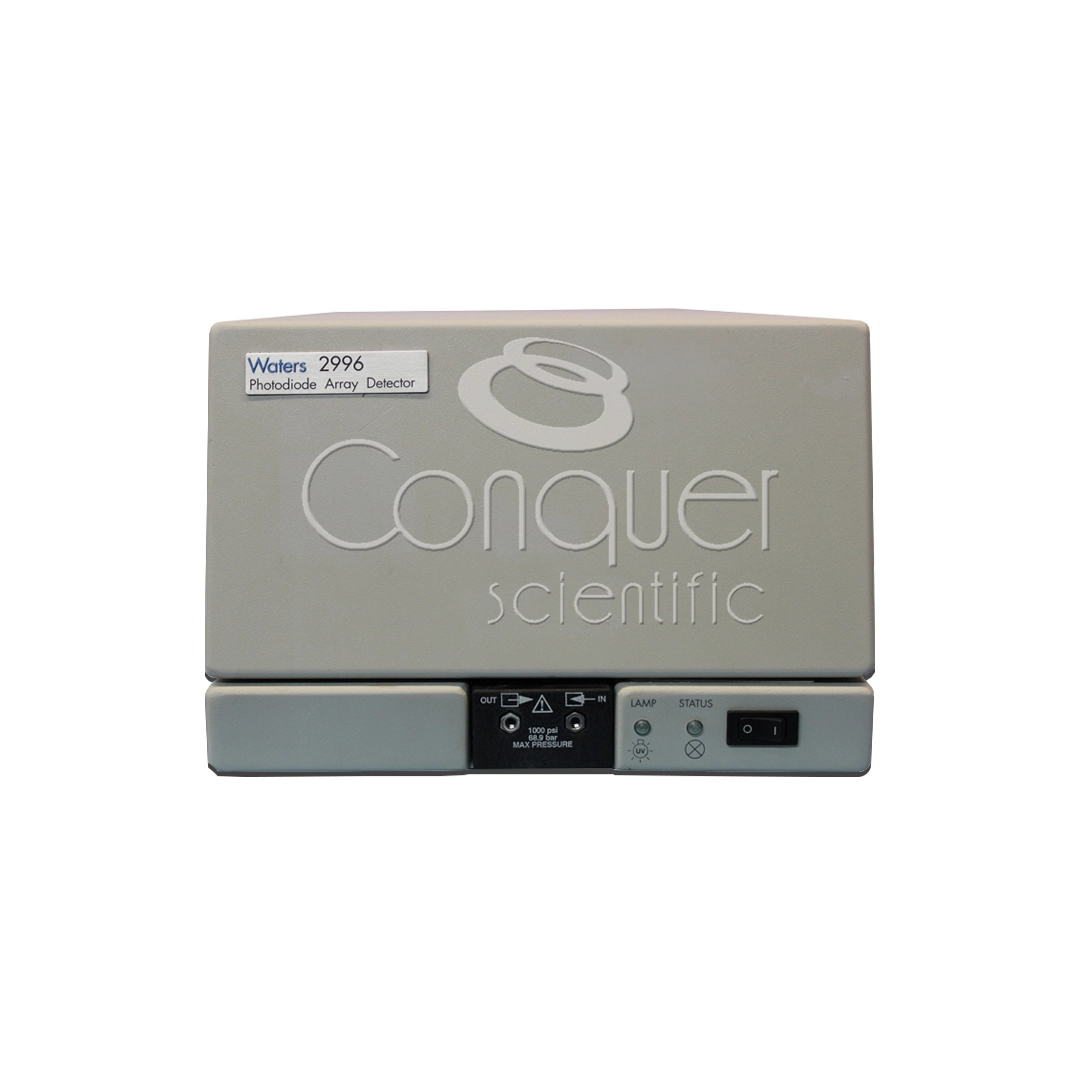

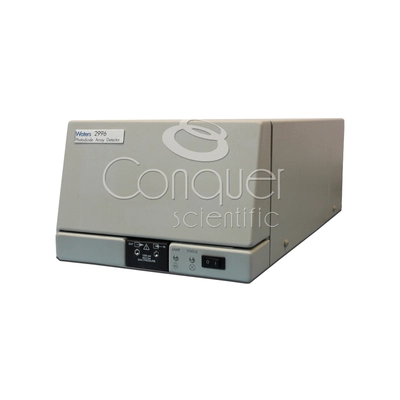

This is a refurbished Waters 2996 PDA Detector.
The Waters 2996 PDA Detector ( Photodiode Array Detector ) incorporates uniquely-integrated software and optics innovations that deliver no-compromise chromatographic and spectral sensitivity, reliability and ease of use for analytical and preparative separations. Advanced spectral analysis enhances component recognition and homogeneity assessment.
Features:
Maximum chromatographic sensitivity means unprecedented trace impurity detection and quantification.
Optimized spectral sensitivity and Waters purity algorithms mean definitive compound identification and co-elution detection.
Superior linearity range defined by a fixed optical bandpass
Simplified optics that are reliable and easy to maintain
Method development and validation are fast and straight forward with uncomplicated method development tools within Empower
Compliance-ready for the FDA Electronic Records and Electronic Signatures Rule
Start-up diagnostics that ensure detector performance prior to use
Specifications:
Linearity range: 5% over -0.1 to 2.0 AU
Spectral resolution: 1.2 nm per photodiode
Baseline noise: 5 x 10 -5 AU peak-to-peak
Drift: 1 x 10 -3 AU/hour at 254 nm (after warmup)
Operating temperature: 4 to 40 (39 to 104 )
Operating humidity: 20 to 80% non-condensing
Wavelength accuracy: 1nm
Wavelength range: 190 to 800 nm
Flow cells:
Standard path length: 10 mm
Semi-preparative path length: 3 mm
Microbore path length: 6 mm
Inert path length: 10 mm
Includes:
Waters 2996 PDA Photodiode Array Detector
Cables and connectors
Warranty Coverage
Financing Available
