USED DIONEX, THERMO SCIENTIFIC HPG-3400 RS / SRD-3400

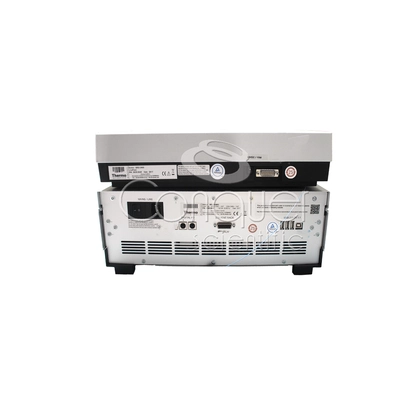

This is a refurbished Thermo Scientific Dionex UltiMate 3000 Focused RS Pump (HPG-3400 RS) and Degasser ( SRD-3400).
The Thermo Dionex HPG-3400 RS is a high-performance liquid chromatography (HPLC) system that is designed for the separation and analysis of complex samples. It uses a unique column heater and thermostatting system to provide consistent and reproducible results, even at high temperatures. The system also features a high-pressure gradient pump that can handle a wide range of flow rates and column dimensions.
The Thermo Dionex Ultimate 3000 SRD-3400 degasser is a high-performance liquid chromatography (HPLC) accessory that is designed to remove dissolved gases from the mobile phase. It uses a unique supersonic gas removal technology, which creates high-frequency sound waves to remove dissolved gases, resulting in improved column performance and increased sample resolution.
HPG-3400 RS Specifications:
Description HPG-3400 RS Binary RS Pump
Biocompatible Version Yes
Flow Accuracy ±0.1%
Flow Precision <0.05% RSD or <0.01 min SD, whichever is greater
Gradient Formation High-Pressure Proportioning
Max. Flow Rate 8 mL/min.
Pressure Range 2 to 103.4 MPa up to 5 mL/min; 2 to 80 MPa up to 8 mL/min
Type Serial Dual-Piston Binary Rapid Separation Pump with Solvent Selector Valves
Emission Sound Pressure Level <70 dB(A) in 1-m-distance
For Use With (Equipment) 15-Pin D-Sub Connector for Solvent Rack/Degasser Connection
GLP Features Full support of Thermo Scientific Dionex AutoQ instrument qualification, qualification status and system wellness
monitoring. All system parameters are logged in the Chromeleon Audit Trail.
Gradient Delay Volume 35-1550 µL (Depending on the SpinFlow mixer configuration)Default: 200 µL
I/O Interfaces 2 digital inputs, 2 relay outputs.
Min. Flow Rate 0.0001 mL/min. (Recommended 0.1 mL/min.)
No. of Eluent Lines 2
Operating Principle Serial dual-piston
PC Connection USB hub with 3 sockets integrated
Pressure Ripple Typically: <0.2 MPa or <1% whichever is greater
Proportioning Accuracy ±0.2% (full scale)
Proportioning Precision <0.15% SD
Solvent Degassing External (optional)
Version with Solvent Selector Valve HPG-3400 RS
Overall Width (English) 16.5 in.
Overall Width (Metric) 42 cm
Overall Height (English) 6.3 in.
Overall Height (Metric) 16 cm
Overall Depth (English) 20 in.
Overall Depth (Metric) 51 cm
Weight (English) 35.2 lb.
Weight (Metric) 16.2 kg
Voltage 100-120 V, 60 Hz; 200-240 V, 50 Hz
Frequency 100-120 V, 60 Hz; 200-240 V, 50 Hz
Unit Size Each
SRD-3400 Degasser Specifications:
For Use With (Equipment) UltiMate 3000 Pumps
Solvent Channels 4 Degasser Channels
Type Solvent Rack
Voltage 30 V
Weight (Metric) 4.8 kg
Width (Metric) 3 kg
Description SRD-3400 Solvent Rack with 4 degasser channels
Unit Size Each
Includes:
HPG-3400 RS pump
SRD-3400 Degasser
Cables
Options:
Installation & Familiarization
Extended Warranty
Financing Available
