USED THERMO SCIENTIFIC LTQ ORBITRAP XL / LTQ XL MS
Overview
Description

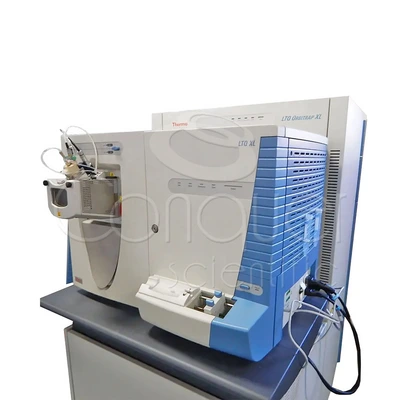

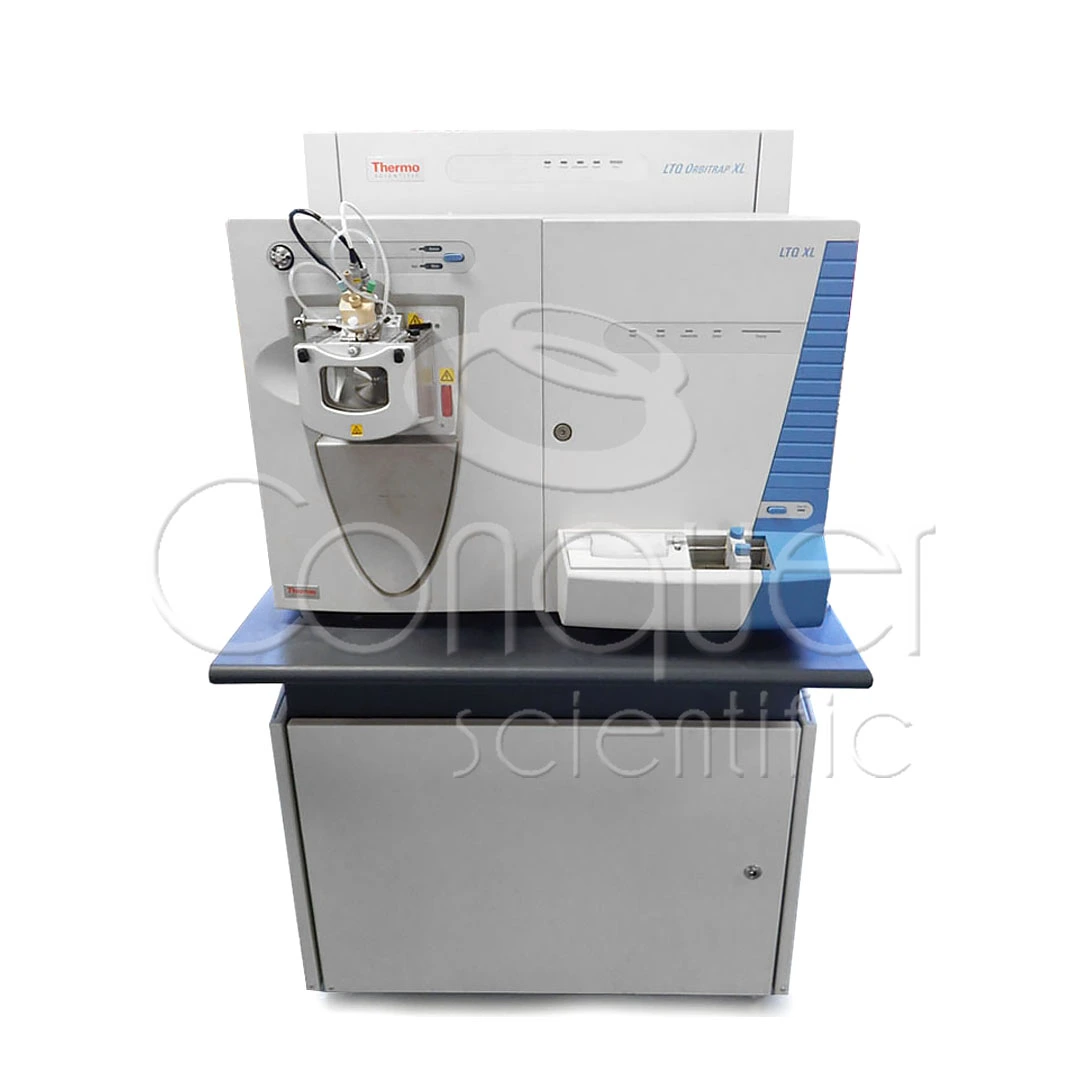

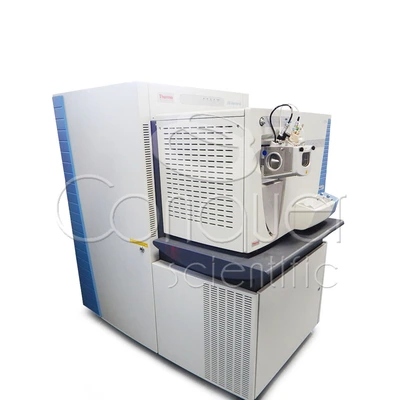

This is a refurbished Thermo LTQ Orbitrap XL with LTQ XL Mass Spectrometer.
The Thermo Scientific LTQ Orbitrap XL with LTQ XL Mass Spectrometer is a high-resolution hybrid mass spectrometry system designed for advanced proteomics, metabolomics, and complex biomolecular analysis. Combining the fast ion trapping capabilities of the LTQ XL linear ion trap with the ultra-high mass accuracy and resolving power of Orbitrap technology, this system delivers exceptional sensitivity and precise mass measurements for confident compound identification and structural characterization. Ideal for research, pharmaceutical, and academic laboratories, the LTQ Orbitrap XL supports a wide range of applications including protein identification, post-translational modification analysis, and small molecule profiling.
Resolution (apodized)
60000 (FWHM) @ m/z 400 with a scan repetition rate of 1 second
Minimum resolution 7500@ m/z 400
Maximum resolution 100000 @ m/z 400
Cycle Time
1 scan at 60000 resolution @ m/z 400 per second
Mass Range
m/z 50–2000
m/z 200–4000
Mass Accuracy
<3 ppm RMS for 2 h period with external calibration using defined conditions
<2 ppm RMS with internal calibration
Dynamic Range
>10000 between mass spectra,
>4000 between highest and lowest detectable mass in one spectrum
MS/MS
MS/MS and MSn scan functions
Financing Available
Includes:
Thermo LTQ Orbitrap XL
Thermo LTQ XL MS
Two (2) Mechanical Pumps
Data System
Warranty Coverage
Options:
Source Options:
Nano or APCI Source
MS Sample Introduction
Generator
Air Compressor
Mass Spec Workbench
Installation & Familiarization
Extended Warranty
