| size | 21.6" x 27.6" | 21.6" x 27.6" |
| Swing | 21" | 533.4 mm |
| Stroke | 27" | 685.8 mm |
| Travel-Long | 27" | 685.8 mm |
| Workhead Power | 4.1 hp | 3.1 kW |
| Wheel Power | 24 hp | 17.9 kW |
| Workhead Speed | 800 RPM | 800 RPM |
| Dresser | Yes | Yes |

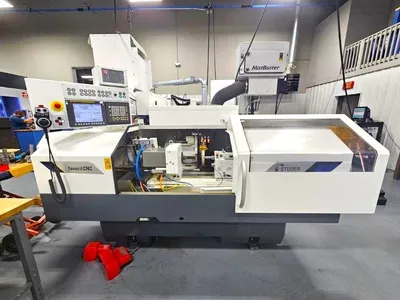

Studer S151 FavoritCNC Cylindrical Grinder (2021)
Workpiece Length
27.6 inch
Workpiece Diameter
21.6 inch
Max. Workpiece Weight
550 lbs
Center Height
10.8 inch
Linear Axes
Max. Travel X
19.7 inch
Max. Travel Speed X
787 inch/min
Max. Travel Z
19.7 inch
Max. Travel Speed Z
787 inch/min
Spindle drive
Max. Spindle Power
24 hp
Max. Number Of Revolutions
120'000 rpm
Max. Grinding Wheel Diameter
12 inch
Max. Grinding Wheel Width
1.3 inch
Swiveling Axes
Swiveling Range B
330 deg
Swiveling Range C
∞ deg
Approx Dimensions: 10′ x 7′ x 7′
Approx Weight: 11,500 lbs
Fanuc Oi-TD Control
Tailstock
60-piece collet set and (6) wheels. Plus other accessories.
