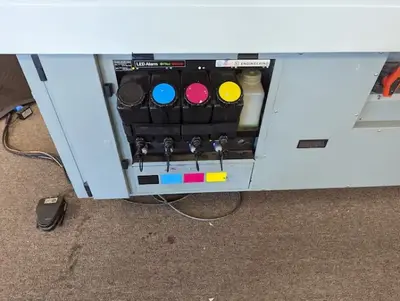

OCE Arizona 460GT 4C

Rigid media

Media size 49.2" × 98.4" × 1.89" (1.25 m × 2.5 m × 48 mm)

Print area 49.6" × 98.8" (1.26 m × 2.51 m)

Edge-to-edge printing (full bleed)

Roll Media Option

Roll width 36" to 86.6" (0.9 m to 2.2 m)

Print width 86.2" (2.19 m) maximum

Roll diameter Up to 9.45" (240 mm)

Core inner diameter 3" (76.2 mm)

Roll mass Up to 110 lbs. (50 kg), width dependent

Media winding direction (input) Print side in or out

Geometric Accuracy Measured over Max error

Print width 2.5 m ±0.8 mm

Print length 1.25 m ±0.4 mm

Line straightness/width 2.5 m 0.7 mm

Line straightness/length 1.25 m 0.7 mm

Diagonal error 1.25 × 2.5 m 1.0 mm

Software

Image processing ONYX® Thrive™ Océ Edition print workflow software or

ONYX ProductionHouse™ (version X10 or greater) Océ Edition RIP software

Environmental Data

Power requirements 2×60 Hz, 200 to 240 VAC, single phase, 16A

Connectivity 100/1000Base-T

Temperature 64˚ to 86˚ F (18˚ to 30˚ C)

RH 30–70%, not condensing

(certain media may require a higher RH operating range)

Size & Weight

Printer only 183.5" × 78.7" (4.66 m × 2.0 m), 1,709 lbs. (775 kg)

Printer + roll media option 183.5" × 90.6" (4.66 m × 2.3 m), 2,260 lbs. (1,025 kg)

Table height 34.6" (0.88 m)

Overall height 51.2" (1.3 m
