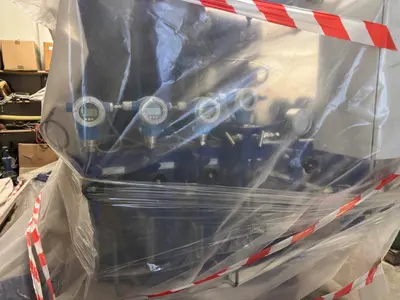

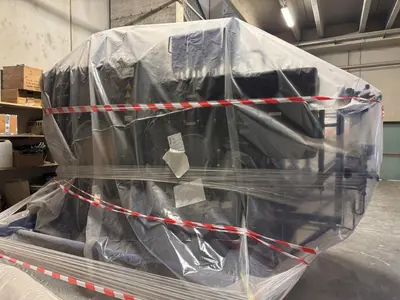

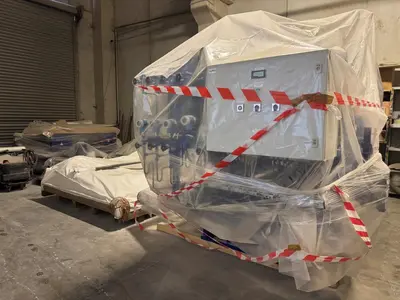

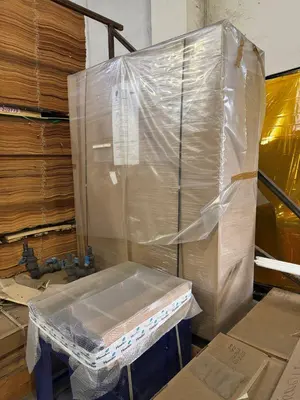

USED 2024 HOWDEN TWIN CA46

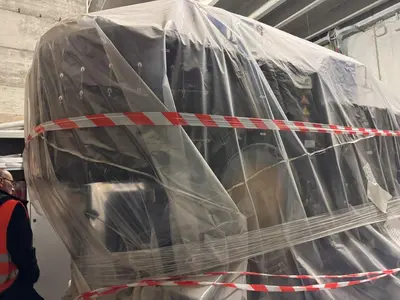

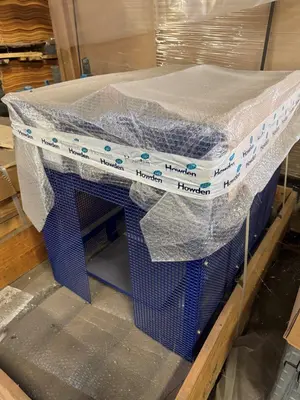

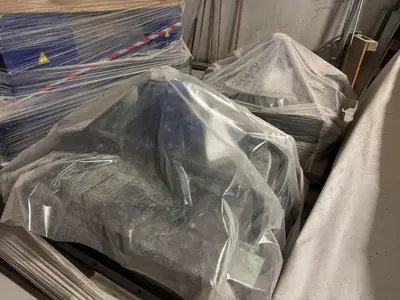

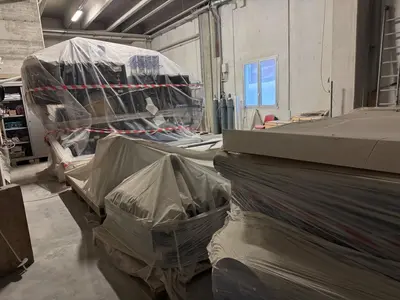

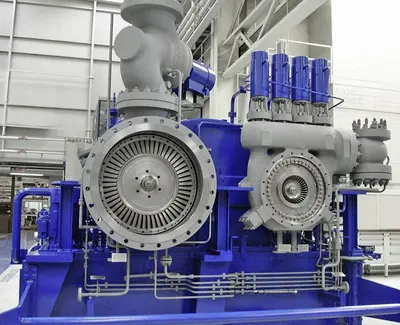

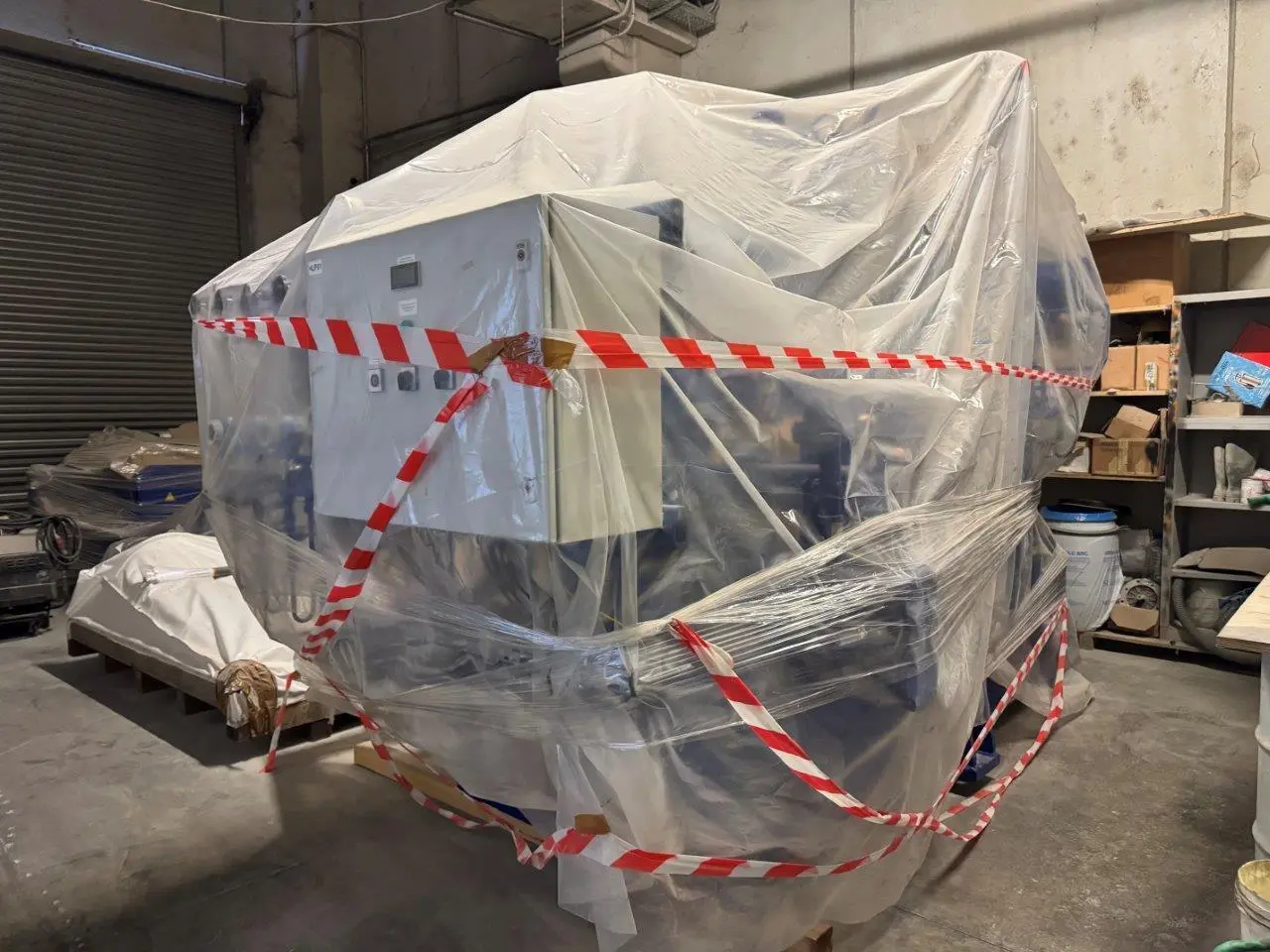

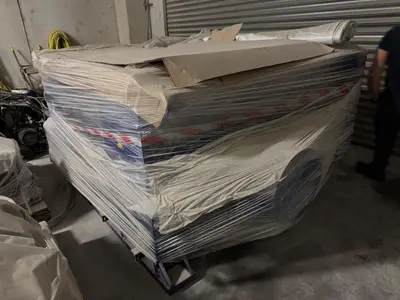

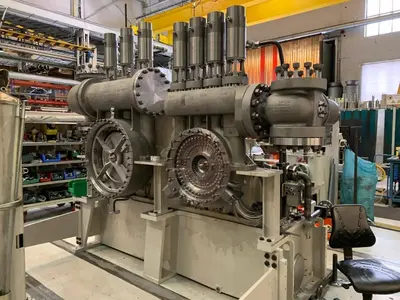

Unused Howden (KK&K) Twin CA46 Steam Turbogenerator with capacity 1595 kW. Equipment was manufactured in 2024 and maintained in climate-controlled indoor storage. It has never been installed or commissioned.

Performance Specifications:
- Electrical power: Up to 1595 kW
- Mechanical power: Up to 1658 kW
- HP Casing: Inlet 16 bara at 400 degrees Celsius, exhaust pressure 2.5 bara, steam flow rate 10,000kg/hour
- LP Casing: Inlet: 2.4 bara at 223 degrees Celsius, exhaust pressure 0.3 bara condensing/vacuum, steam flowrate 5,000 - 10,000 kg/hour
- Gearbox output speed: 1500 RPM

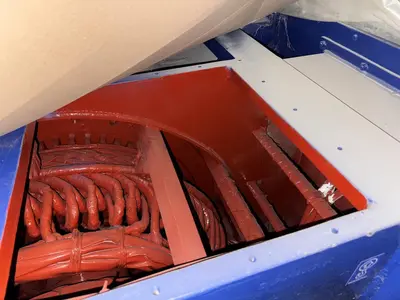

- Generator: 3-phase synchronous rated 1994 kVA, 6000V, 50 Hz, 0.8 power factor, 1500 RPM, up to 96.19% efficiency, protection degree IP44 R, cooling system IC31 air cooled and self ventilated, brushless execution with integrated excitation, designed for parallel operation with the grid.

- Digital control: Siemens SIPROTEC 5 with PROFINET interface and SC901 electronic governor.

Auxiliaries Included:
- Integrated oil system, main mechanical oil pump, electric oil pump, water-cooled oil heat exchanger, duplex oil filter, skid base with integrated oil tank, flexible coupling with safety guard.
