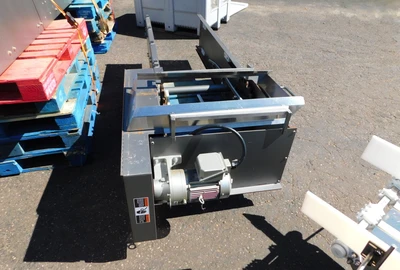

USED RBM Z BUCKET LIFT LH 300 SW CSI

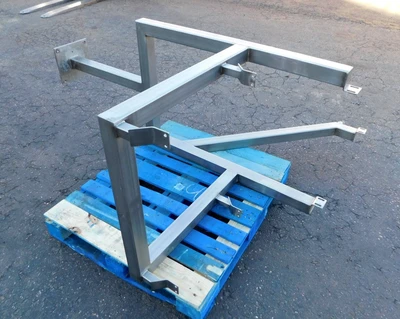

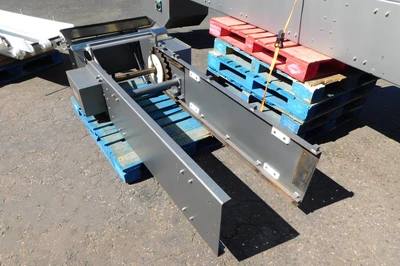

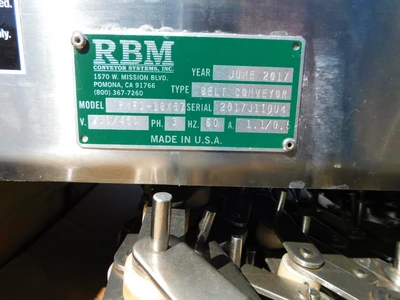

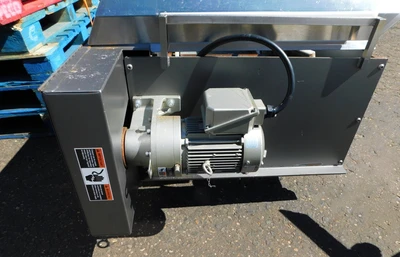

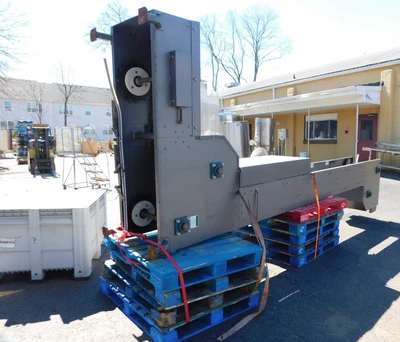

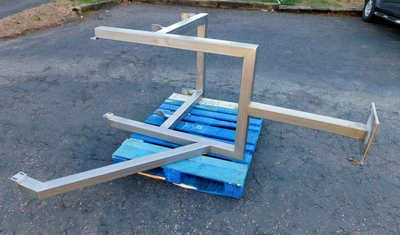

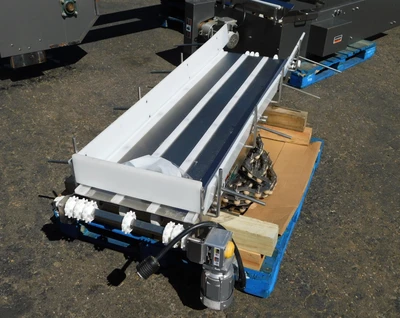

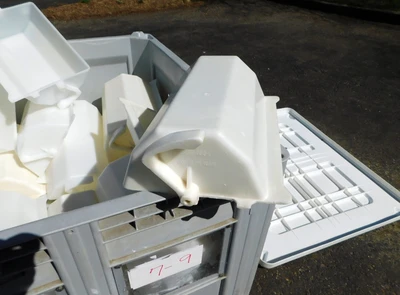

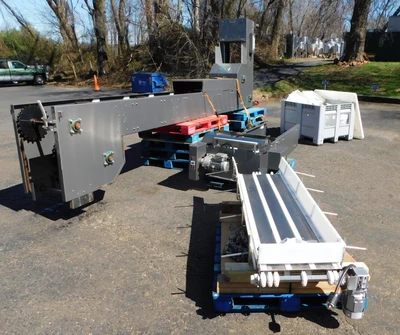

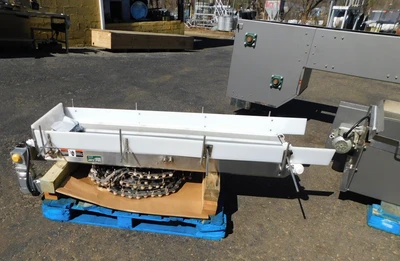

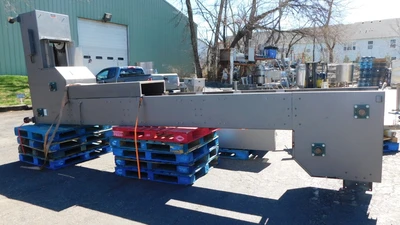

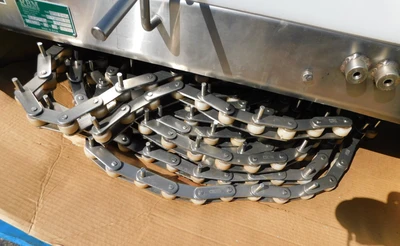

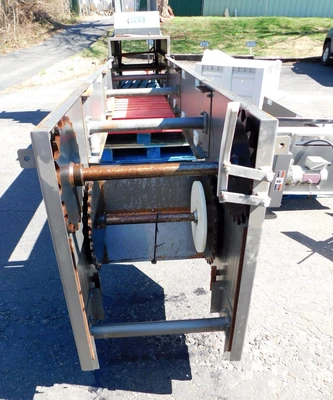

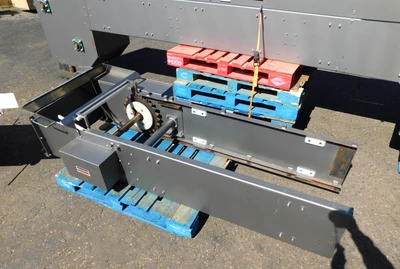

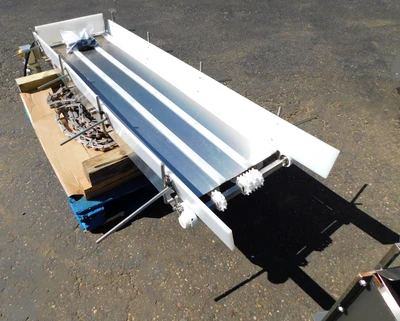

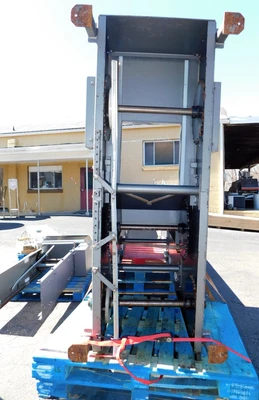

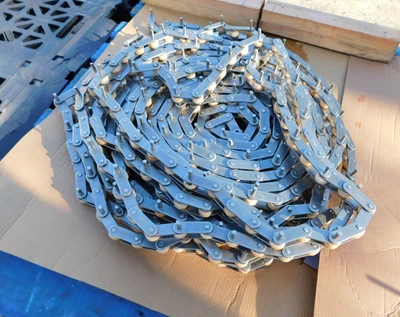

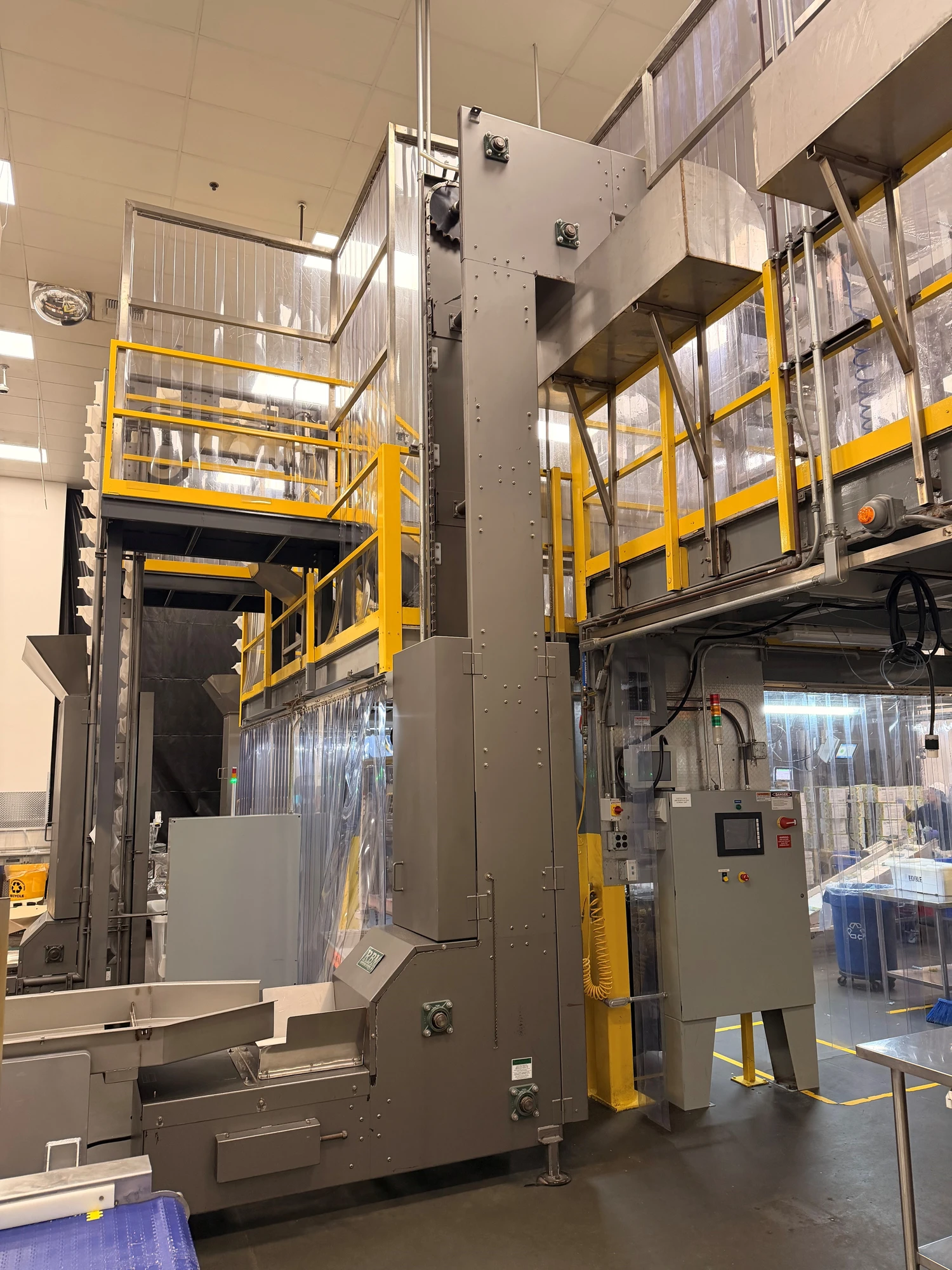

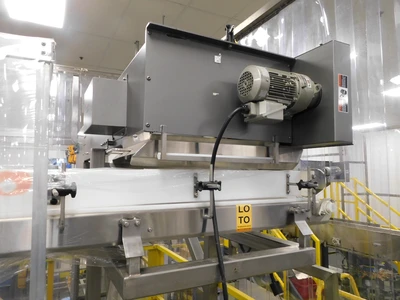

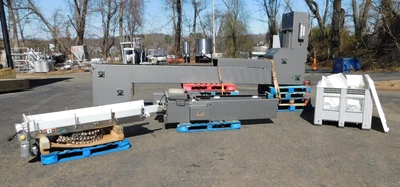

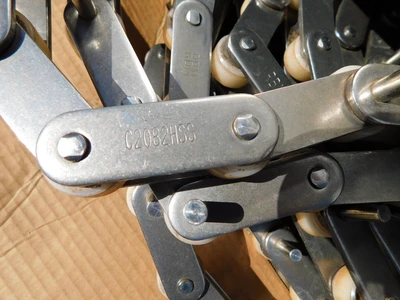

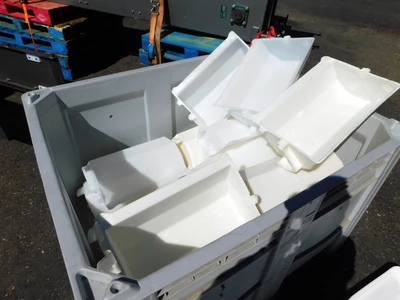

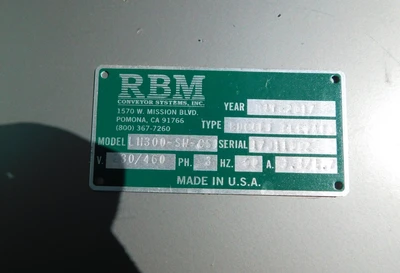

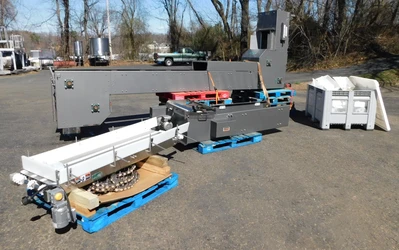

Rbm z lift style bucket elevator, model lh 300 sw csi, serial # 17j110u2. Features 18" wide fda approved copolymer polypropylene buckets, mfg rates at 710 cu/inch per bucket, for 1,850 cu/ft/hr @ 75 fpm chain speed @ 100% full bucket, (97 total with system), conveyor is constructed of 7 ga. Paint steel, ss 2" extended pitch roller chain with 1 1/8" diameter oversized rollers, hinged guards over vertical leg at floor level, 174" floor height under discharge length, 209" to top of discharge, 28" loading height, driven by 1 horsepower sumitomo gear motor, 230/460/3 phase voltage, 60 hz, 3. 38/1. 69 amps, 1. 15 service factor, all ss 18" wide belt conveyor with integrated mounting frame connecting elevator and discharge conveyor for 90 degree directional change. Formerly used in snack food packaging. See video taken at dismatling on our youtube channel at https://www. Youtube. Com/shorts/ufsh1353vje? Feature=share
