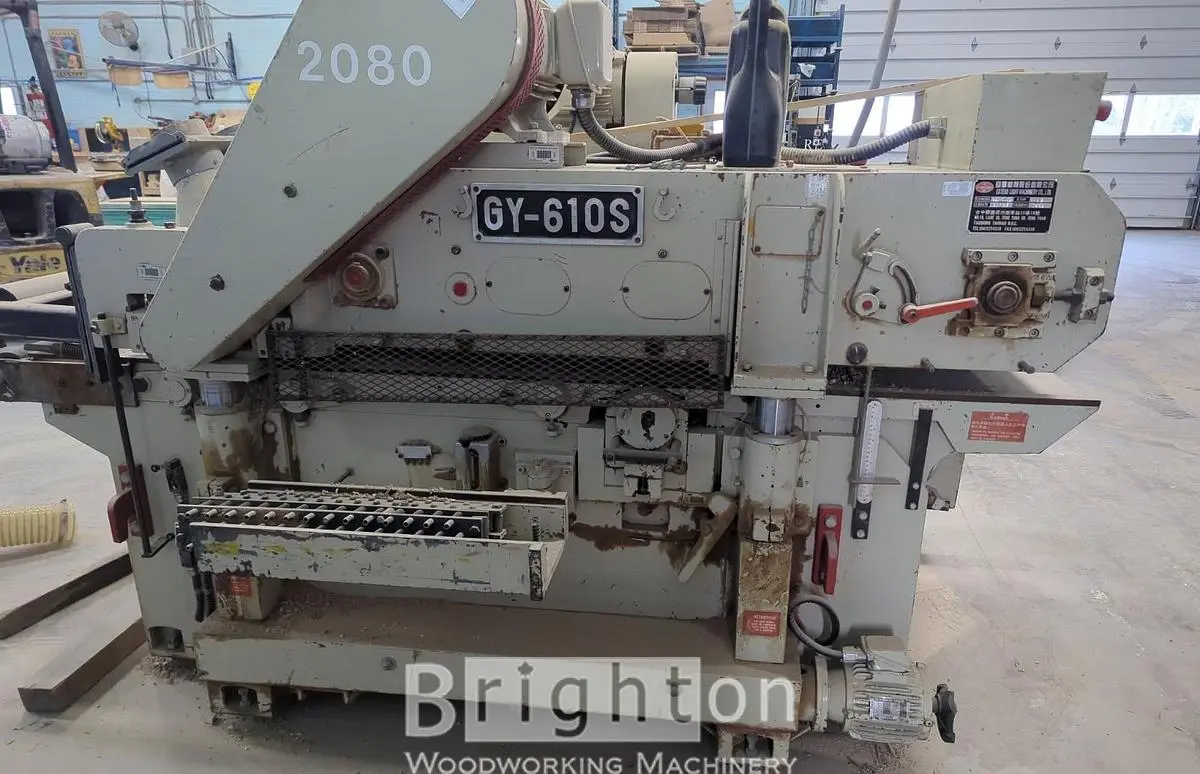

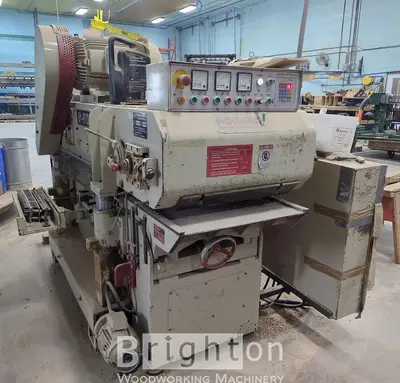

USED 2003 EXTENDLIGHT GY-610S

The 2003 Extend Light GY-610-S Double Side Planer is a heavy-duty industrial surfacer designed for high-precision, large-scale woodworking. Often branded as the #1 selling planer in its class, it is built to handle the demands of three-shift production lines while remaining affordable for one-shift operations

For pricing please click “REQUEST QUOTE” wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.
Click for leasing information
Click for shipping information.
Click for electrical information.
EXTEND LIGHT - GY610-S:

Double-Sided Strato Planer 24" x 8" Cap.,

min. material length 12-1/2"

min. thickness 3/8".Equipped with:

25 HP Top & 20 HP Bottom belt drive motors. 3hp feed.

Helical Spiral cutterheads that rotate @ 4,600 RPM; (6) rows or spirals of 4-sided carbide inserts 14mm X 14 mm.

Variable feed speed from 20 - 95 FPM; powered by 3 HP drive to lower feed rolls & upper feed mat.

Infeed table: Hard chrome plated for max. wear resistance; relieves upper feed mat with spring loaded spikes; allows cupped bowed or warped boards to feed into the heads for max. straightening capability.

Powered lowering & raising of bed table on: (4) Columns via a 1 HP motor; handwheel for fine adjustment of thickness control.

Spiral cutterheads; digital control for accurate thickness setting.

Side-mounted electrical control & Operator Panel.

Automatic feed chain tensioning.

Staggered upper infeed fingers to eliminate small part jambs.

* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. Buyer is responsible to make sure all local regulations for installation and use are followed for area in which it is being installed. Govenment regulations may differ, depending on location.

Quality: Very Good
Electrics: V / Ph / 60 Hz
