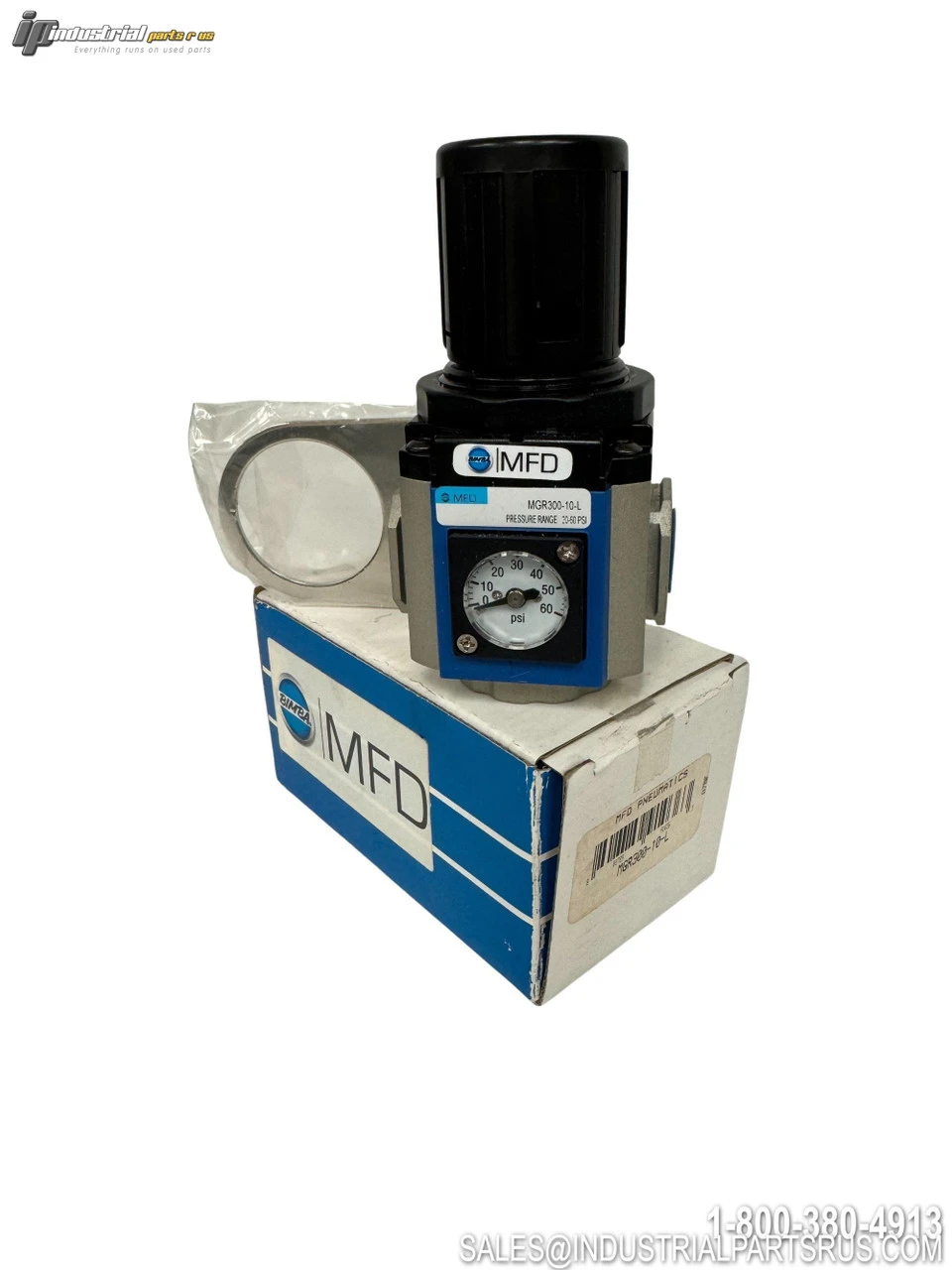

NEW MFD MGR300-10-L

The Mfd MGR300-10-L is a modular pneumatic pressure regulator designed for compressed air systems. This relieving regulator features excellent regulation and flow characteristics with a space-efficient design ideal for panel or inline mounting. The push-to-lock adjustment knob ensures desired outlet pressure is maintained while the modular design allows connection to other MFD FRL components.
Specification
Value
Brand
Mfd
Model/Part Number
MGR300-10-L
Manufacturer
IMI Bimba
Product Series
MGR300 Series
Main Function
Pressure Regulator
Pressure Range
7-60 PSI (0-4 bar)
Gauge Type
Square Pressure Gauge
Connection Type
3/8" NPT (Female)
Number of Ports
2
Flow Direction
Left-to-Right
Adjustment Type
Push-to-Lock Knob
Material
Aluminum Alloy Housing
Mounting
Stamped Steel Bracket
Height
112.5mm (4.43")
Width
72mm (2.83")
Depth
60mm (2.36")
Operating Temperature
-4°F to +158°F (-20°C to +70°C)
Application Type
Compressed Air
Design Type
Modular Air Regulator
We warranty all items for 30 days from date of purchase.

SKU: AI0895
UPC: 679523686185
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Manufacturer: Mfd
Part Number: MGR300-10-L
Shelf: K-51
Model: MGR300-10-L
MPN: MGR300-10-L
Type: Pneumatic Valve
