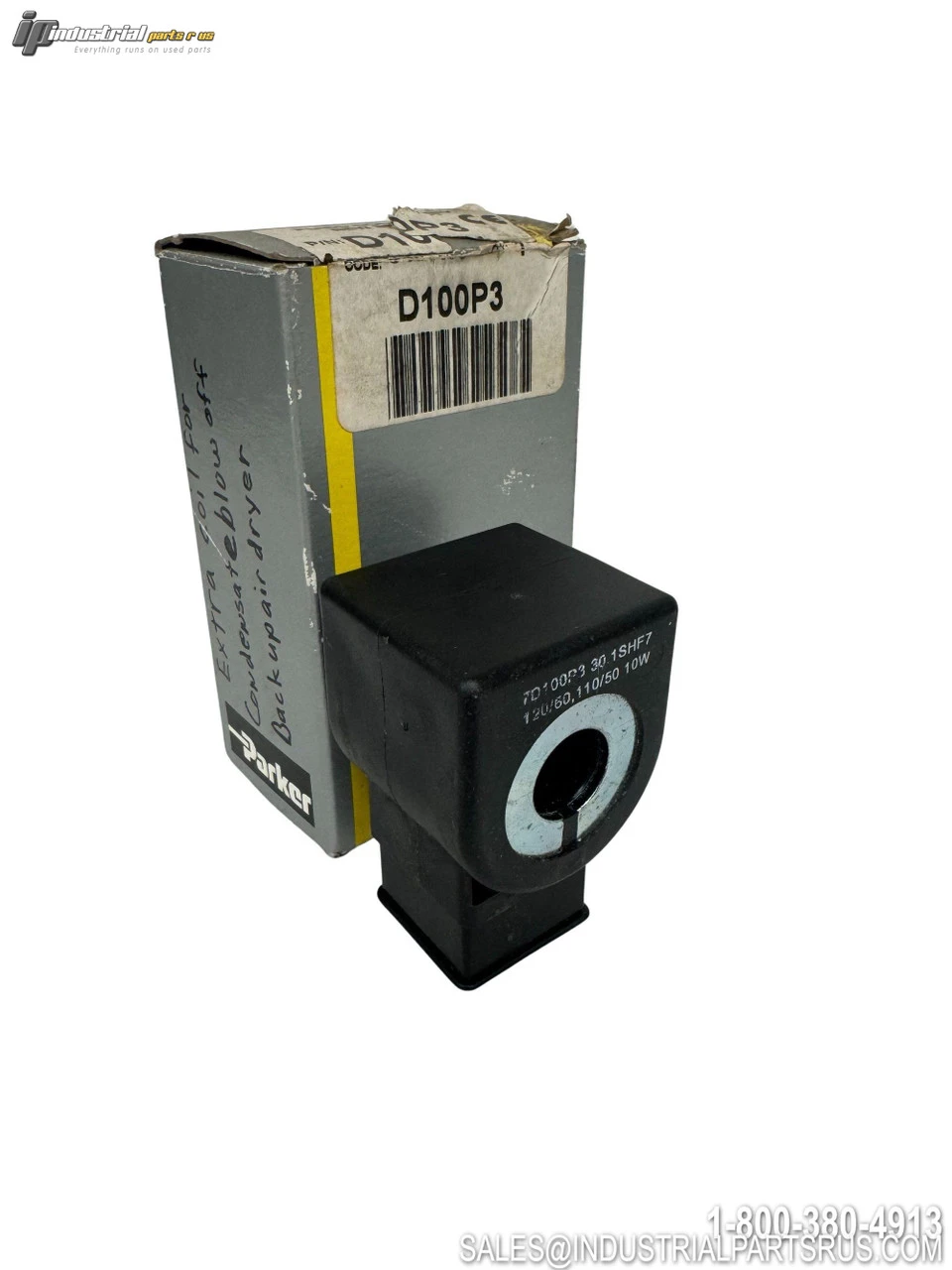

NEW PARKER D100P3

The Parker D100P3 is a solenoid coil designed for use with Parker Skinner 7000 series solenoid valves. This 10-watt coil operates at 120/60 VAC or 110/50 VAC and features Class F insulation with a DIN 43650A connector. The coil provides reliable electromagnetic operation for solenoid valve control applications.
Specification
Value
Brand
Parker
Model/Part Number
D100P3
Series
Skinner 7000 Series
Coil Voltage
120/60 VAC, 110/50 VAC
Power Rating
10 Watts
Frequency
50/60 Hz
Insulation Class
Class F
Connection Type
DIN 43650A
Connector Size
30mm 3-Pin DIN
Coil Type
7F Type
Enclosure Rating
NEMA 4/4X
Construction
Molded Epoxy
Industry Standards
ISO 4400, DIN 43650A
Certification
UL Recognized
Replacement For
491514P3
Weight
0.43-0.48 lbs
We warranty all items for 30 days from date of purchase.

SKU: AI0852
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Parker
Enclosure Type: NEMA 4/4X
Part Number: D100P3
Shelf: K-47
Model: D100P3
MPN: D100P3
Type: Solenoid Valve
