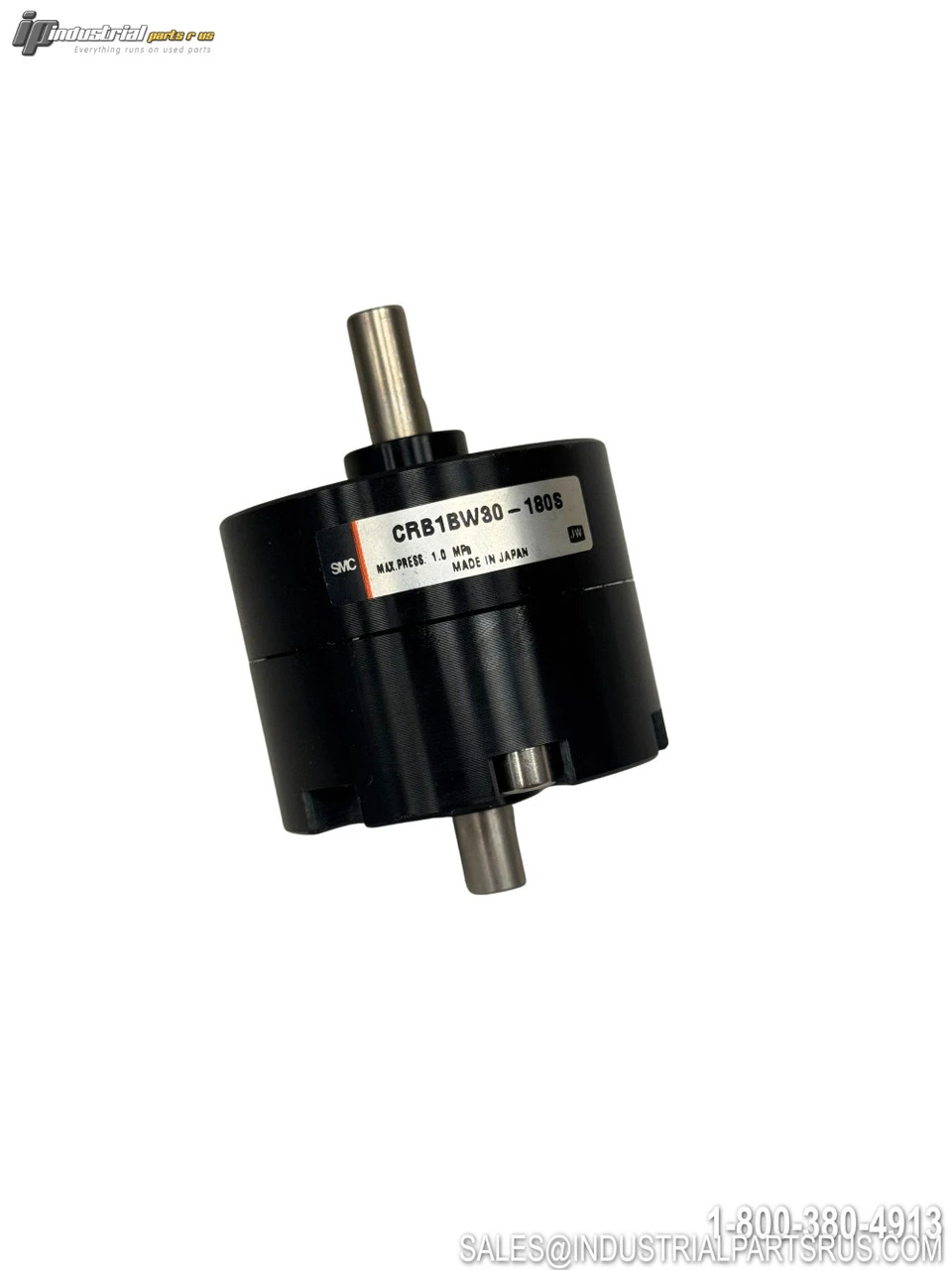

USED SMC CRB1BW30-180S
Overview
Description
The SMC CRB1BW30-180S is a single vane type pneumatic rotary actuator designed for precise rotational control in industrial automation applications. This actuator features a 30mm bore diameter with 180-degree rotation capability and operates at pressures up to 145 PSI. The compact aluminum body design with rubber bumper cushioning provides reliable performance in manufacturing, packaging, and assembly line applications.
Specification
Value
Brand
SMC
Model/Part Number
CRB1BW30-180S
Product Type
Pneumatic Cylinder
Actuator Style
Single Vane
Bore Diameter
30mm
Rotation Angle
180°
Maximum Operating Pressure
145 PSI (1.0 MPa)
Minimum Operating Pressure
15 PSI (0.1 MPa)
Maximum Operating Temperature
140°F (60°C)
Minimum Operating Temperature
41°F (5°C)
Port Type
Side Ported
Shaft Type
Double Shaft
Cushion Type
Rubber Bumper
Body Material
Aluminum
Series
CRB1BW
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI0862
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Part Number: CRB1BW30-180S
Shelf: B-12
Bore Diameter: 30 mm
Model: CRB1BW30-180S
MPN: CRB1BW30-180S
Type: Pneumatic Cylinder
