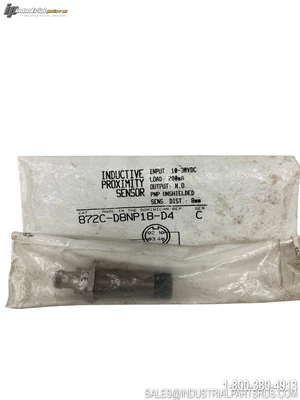

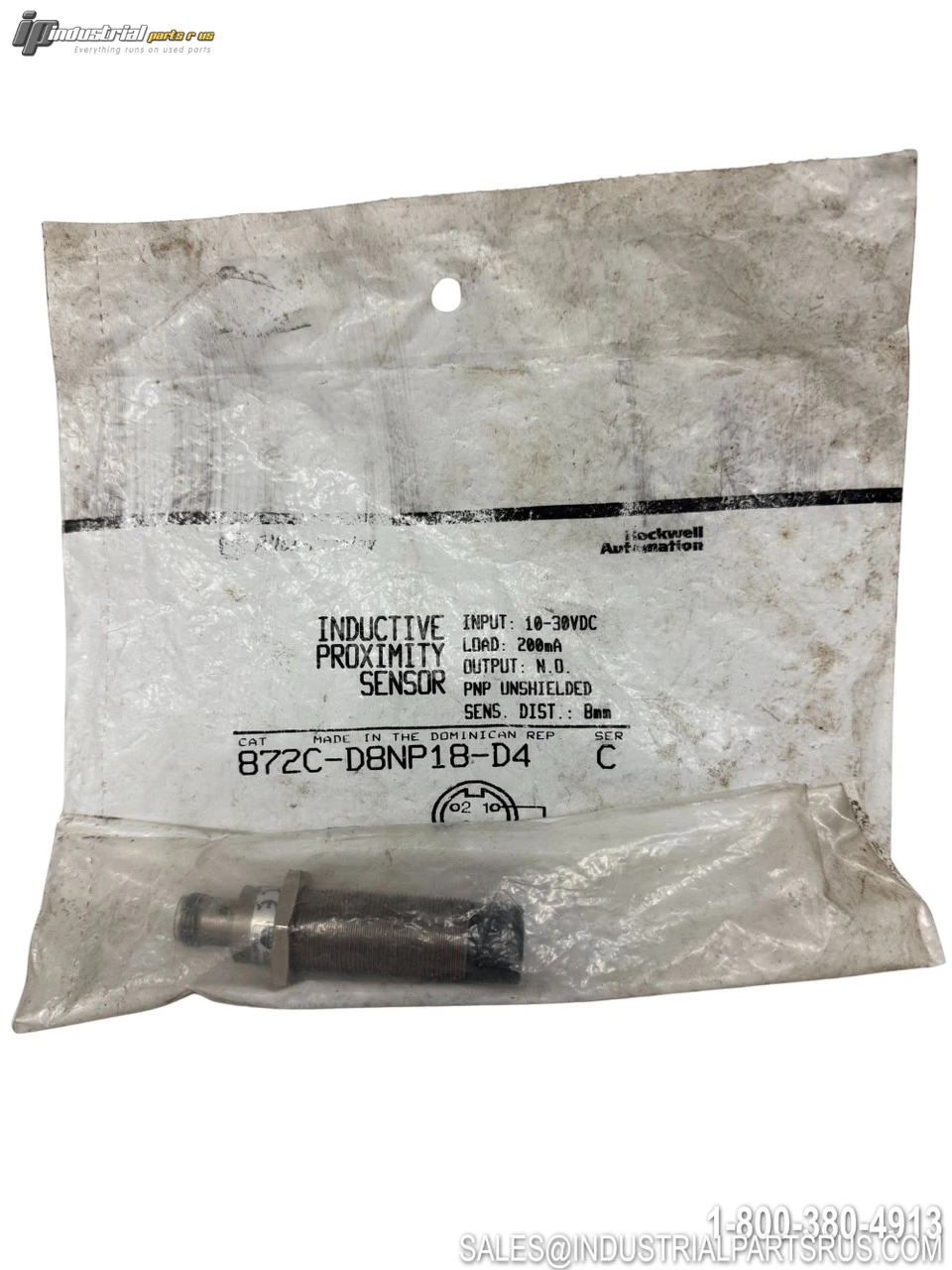

NEW ALLEN-BRADLEY 872C-D8NP18-D4

The Allen-Bradley 872C-D8NP18-D4 is an 18mm barrel inductive proximity sensor designed for non-contact detection of metallic objects in industrial automation applications. This 3-wire DC sensor features PNP (source) output with 8mm sensing distance and operates on 10-30VDC with micro quick-disconnect connector for easy installation.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
872C-D8NP18-D4
Series
872C WorldProx
Barrel Diameter
18mm
Sensing Range
8mm
Output Type
PNP (Source)
Output Mode
Normally Open (NO)
Voltage
10-30VDC
Current Type
3-Wire DC
Maximum Load Current
200mA
Operating Frequency
1500Hz
Connection Type
4-Pin DC Micro QD
Connection Size
M12x1
Material
Nickel-Plated Brass
Shielding
Unshielded
Enclosure Rating
IP67, NEMA 4/6P/12/13
Temperature Rating
-25°C to +70°C (-13°F to +158°F)
Body Style
Barrel/Cylindrical
Mounting Type
Threaded
Certifications
UL, CUL, CE, RCM, KC, CCC
We warranty all items for 30 days from date of purchase.

SKU: AI0957
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: PNP
Sensor Type: Inductive
Operating Distance: 8mm
Full Load Amps: 200mA
Manufacturer: Allen-Bradley
Enclosure Type: IP67
Part Number: 872C-D8NP18-D4
Shelf: O-5
Model: 872C-D8NP18-D4
MPN: 872C-D8NP18-D4
Type: Inductive Proximity Sensor
