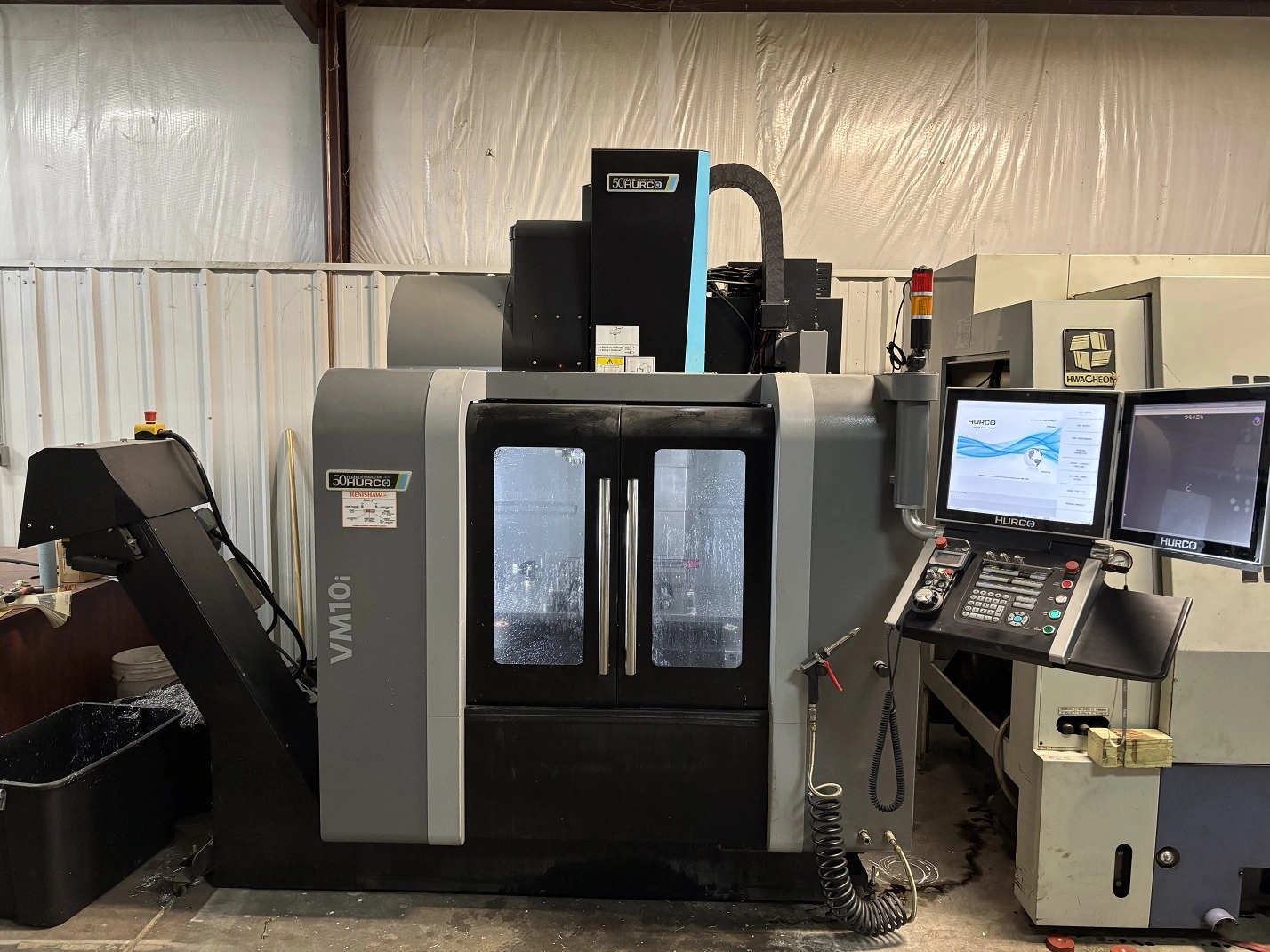

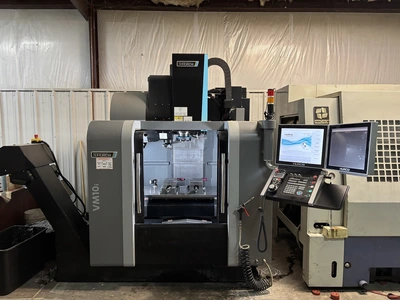

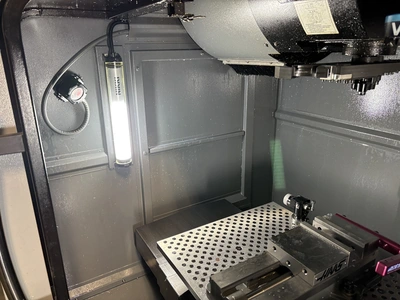

2018 HURCO VM-10i

Winmax, 26.16.20", 12000 RPM, Cat 40, 15HP, 20 Tools, Probes, Rigid Tap, Flood Coolant System, Chip

X-Axis: 26"
Y-Axis: 16"
Z-Axis: 20"
Table Size: 30" x 16"
Spindle Speed: 12,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 15 HP
Tools: 24
Table Load Capacity: 3300 lbs.
Rapid Traverse Rates (X & Y / Z): 1181 / 944 IPM
Max Tool Diameter: 3.1"
Max Tool Length: 9.8"
Max Tool Weight: 15.4 lbs.
Machine Dimensions (L x W x H): 128.5" x 133.2" x 101"
Machine Weight: 7200 lbs.
Spindle Nose to Table Top: 4" - 24"
Spindle Torque: 54 ft. lbs.

HURCO WINMAX CNC CONTROL

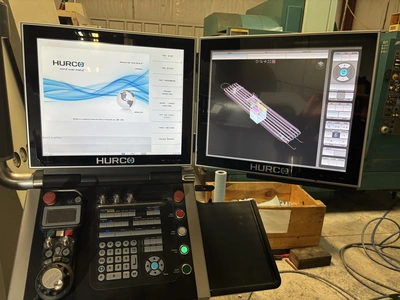

Dual Screen Color LCD
Conversational Programming

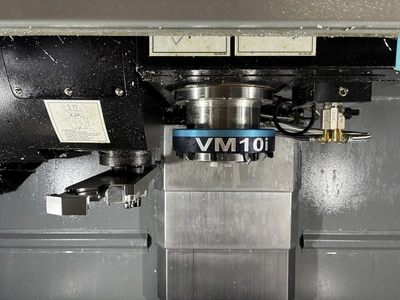

CAT 40 Spindle Taper
12,000 RMP Spindle Speed
20 Position Side Mount Tool Changer

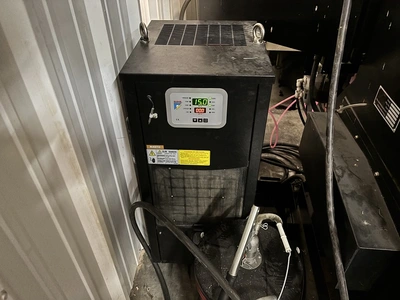

Spindle Chiller Unit
Advanced Verification Graphic
NC Conversational Merge
DXF

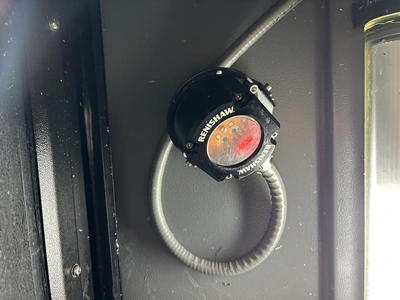

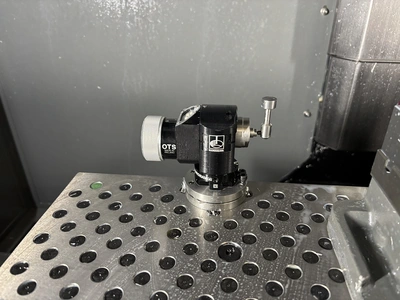

Tool and Part Probing
Ultipockets
Insert Pockets
Helical Ramp
Rigid Tapping
Selectsurface Finish Quality
Tool and Material Library
UltiMotion
Tool Change Optimization
Ultimonitor
Remote Data Advanced
3D Print Export
Linear Thermal Compensation
Flood Coolant System
Coolant Ring
Saunders Aluminum Sub Plate
Chip Conveyor (Left Side Exit)
2438 Machine Hours
862 Spindle Hours
