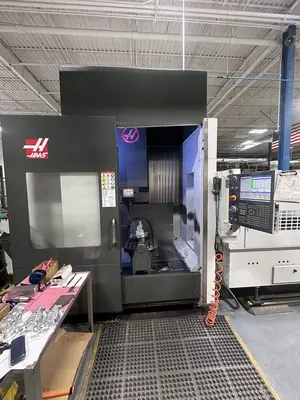

USED 2016 HAAS UMC 750SS

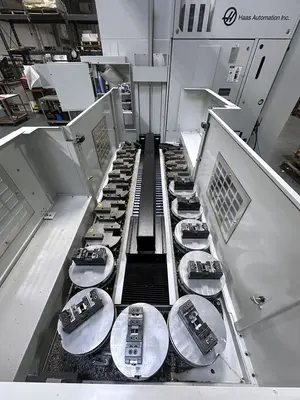

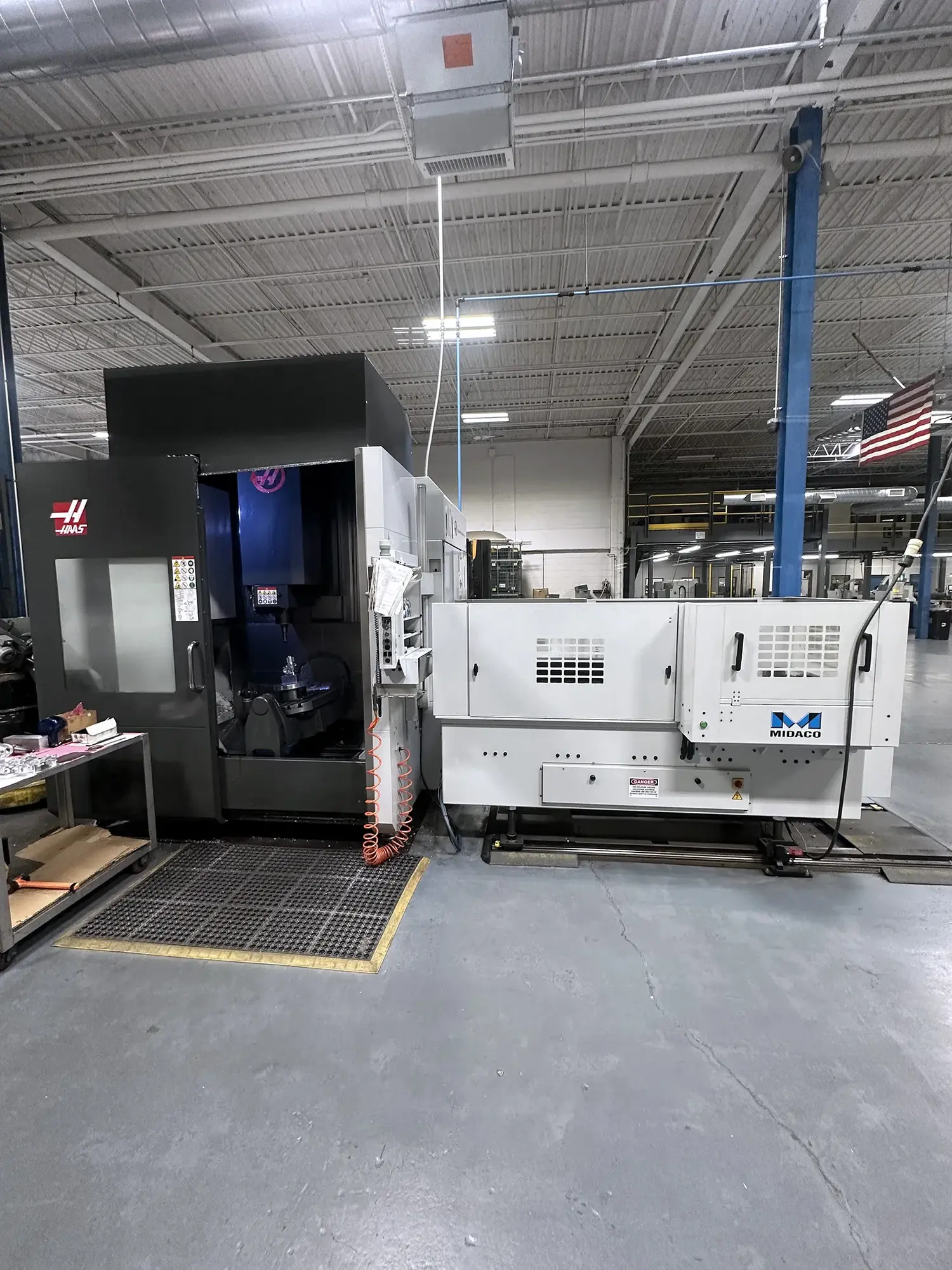

19 Station Midaco Pallet Changer

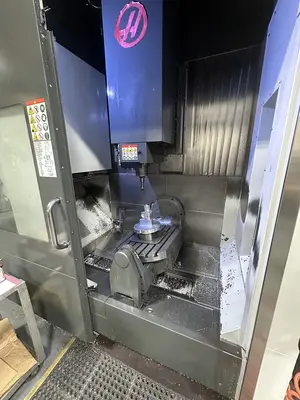

The 2016 Haas UMC-750SS 5-Axis Machining Center with Haas Gen-2 Control is a high-speed CNC system designed for precision machining of complex, multi-sided components. Ideal for aerospace, automotive, and medical industries, it efficiently produces intricate 3D shapes, contoured surfaces, and detailed parts such as molds and curved components in a single setup, improving accuracy and productivity.

X Axis Travel: 30"
Y Axis Travel: 20"
Z Axis Travel: 20"
Max Table Load: 660 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40
ATC: 30

Midaco 19 Pallet Changer System - $125000 Option
Coolant Through the Spindle
15000 RPM Spindle
