Press, Screw Press, Dewatering Machine, Model CT-300, Steel, #5991719

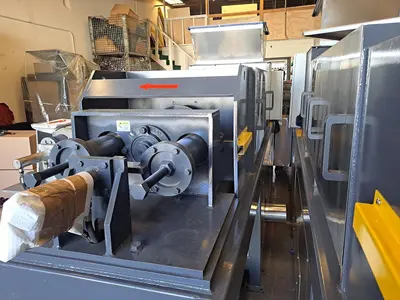

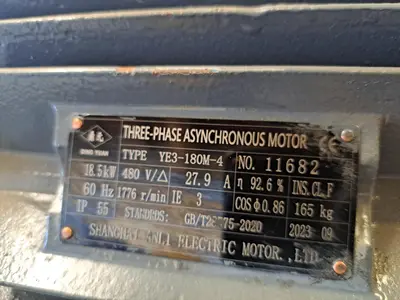

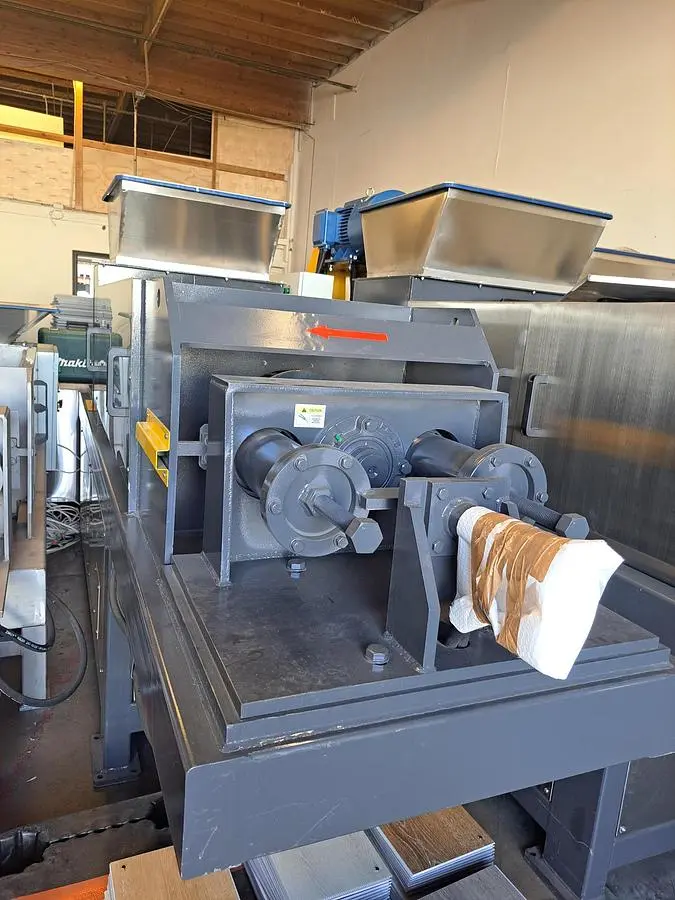

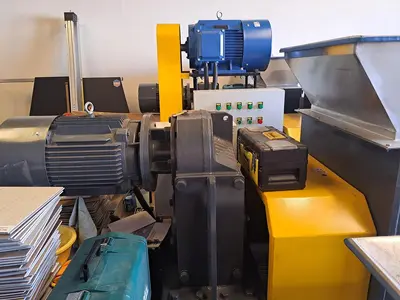

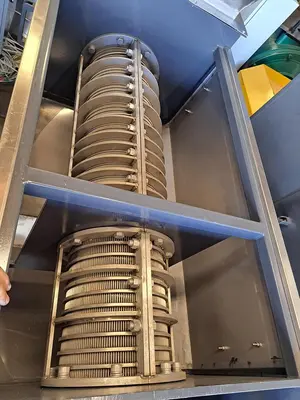

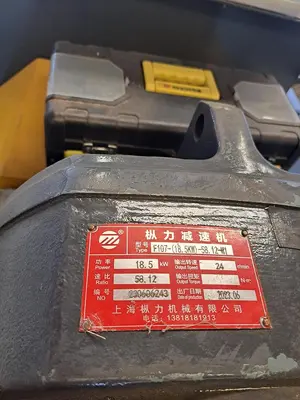

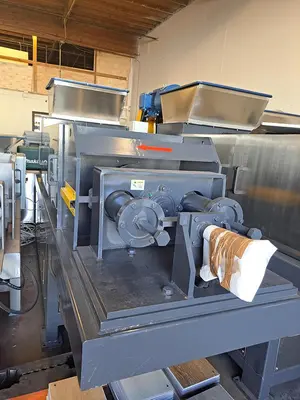

Unused CT-300 screw press / dewatering machine designed for continuous solid-liquid separation using progressive mechanical compression. Material is introduced through the feed hopper where a rotating spiral auger compresses the product against a 0.75 mm sieve screen, allowing liquid to drain while conveying solids toward the discharge outlet. Product contact surfaces are constructed of stainless steel, with the exception of the screw shaft end and sludge plug which are mild steel. The unit is driven by an 18.5 kW motor operating on 480V, 3-phase power at approximately 1776 RPM, coupled to a gear reducer with a ratio of 58.12:1 resulting in a final output speed of approximately 30 RPM. The screw measures approximately 52 inches in length by 12 inches in diameter, with a bottom solids discharge of approximately 6 inches in diameter. Designed for processing capacities of approximately 5 to 8 cubic meters per hour (approximately 1,320 to 2,113 gallons per hour) depending on material characteristics. The unit is mounted on a structural base frame. Suitable for processing sludge, food waste streams, agricultural byproducts, manure, and other high-moisture materials requiring mechanical dewatering.

Stock Number: 5991719
Model: CT-300
Materials of Construction: Steel
Moter Power: 18.5 kW
Voltage: 480 V
Feed Capacity: 2,113 Gallons per Hour
Screen Mesh: 0.75mm
Basis: FOB
