USED 1999 BELL & GOSSETT E-80

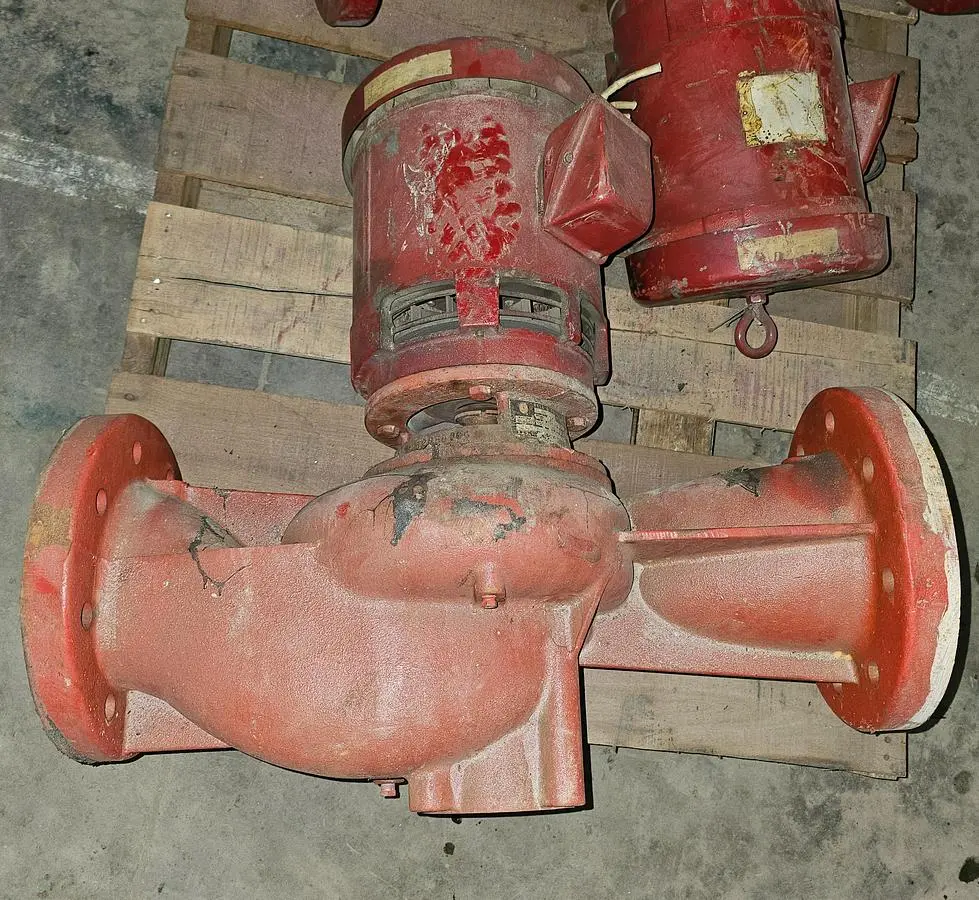

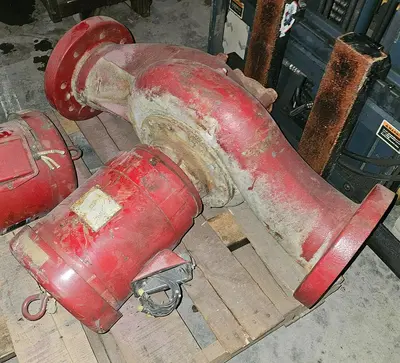

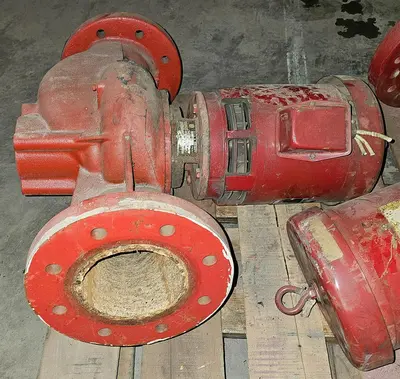

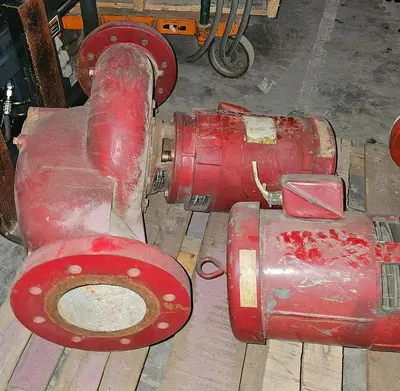

Bell & Gossett e-80 6x6-7B Inline Circulation Pump | 7.5 HP | 460VThe Bell & Gossett Series e-80 is a high-efficiency centrifugal pump designed for vertical or horizontal in-line mounting in commercial HVAC and industrial hydronic systems. This 7.5 HP configuration (6x6-7B) is a heavy-duty workhorse, valued for its space-saving design and "back pull-out" maintenance capability, which allows for seal and impeller service without disturbing the system piping.This unit (S/N 1269737) features a stainless steel fitted (SSF) construction and is powered by a reliable 7.5 HP NEMA motor. Built in 1999, these pumps are renowned for their longevity; they are fully rebuildable and remain a current production series for B&G, ensuring that parts, seals, and gaskets are readily available through local distributors.Technical SpecificationsManufacturer: Bell & Gossett (a Xylem brand)Series: e-80 (In-Line Centrifugal)Size: 6x6x7B (6" Suction, 6" Discharge)Serial Number: 1269737Year of Manufacture: 1999Motor: 7.5 HPRPM: 1750 (4-Pole)Electrical: 208-230/460V, 3-Phase, 60 HzConstruction: Stainless Steel Fitted (SSF) / Cast Iron VoluteMax Working Pressure: 175 PSIMax Temperature: 225°F (Standard Mechanical Seal)Weight: Approx. 360 lbsKey FeaturesIn-Line Space Efficiency: The vertical in-line design eliminates the need for expensive baseplates, concrete pads, and complex alignment, significantly reducing installation costs.Internally Flushed Mechanical Seal: Ensures constant lubrication and cooling of the seal faces, drastically extending the service interval compared to older pump designs.Serviceability: The "Back Pull-Out" design allows the motor and impeller to be removed as a single unit, making seal replacements a fast, one-person job.Proven Reliability: B&G e-80 pumps are the industry standard for commercial boilers and cooling towers, offering decades of service life when properly maintained.

Series: E-80

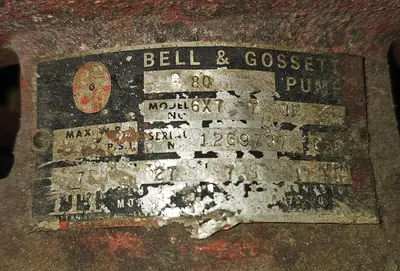

Serial #: 1269737
Max Water Pressure: 275 psi (?)

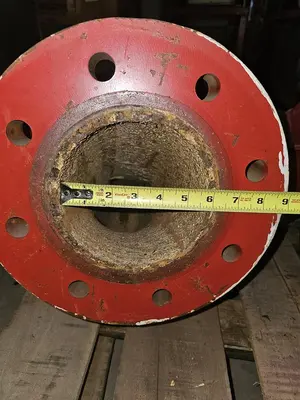

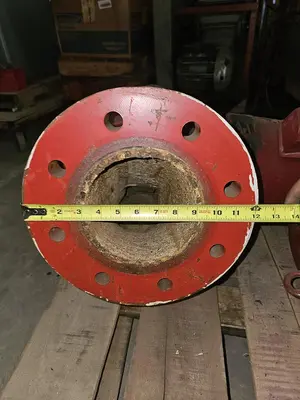

Flange Diameter: 12"
* Series: e-80 (In-Line Centrifugal)
* RPM: 1750 (4-Pole)

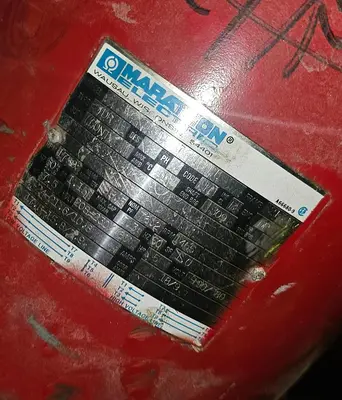

* Motor: 7.5 HP
* Electrical: 208-230/460V, 3-Phase, 60 Hz
* Max Working Pressure: 175 PSI
* Max Temperature: 225°F (Standard Mechanical Seal)
* Weight: Approx. 360 lbs
