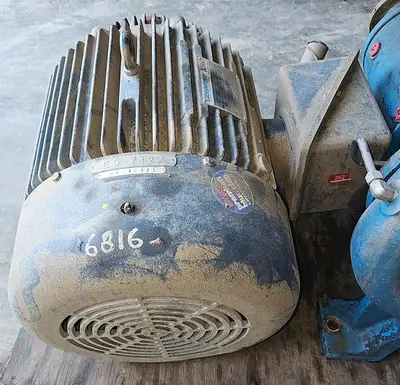

USED 1990 GOULDS 3196

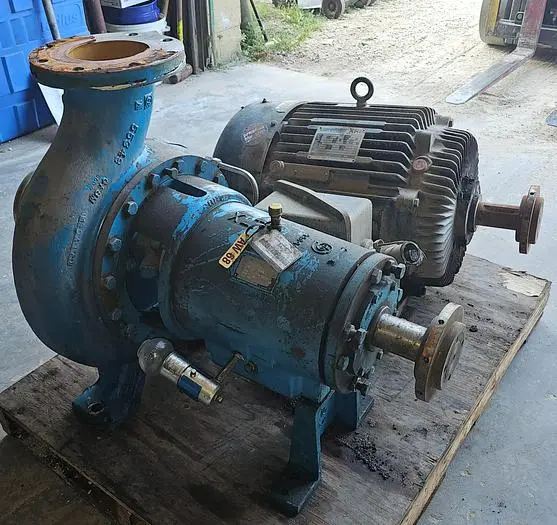

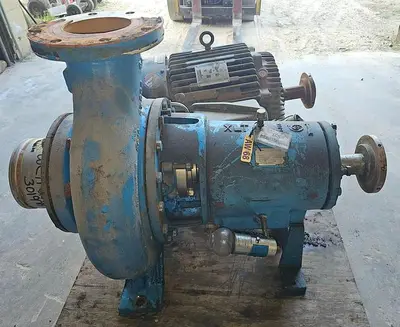

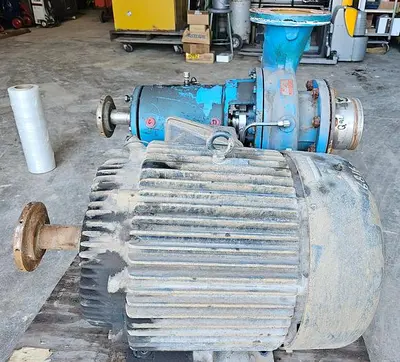

Goulds 3196 8x10-15G ANSI Process Pump | 50 HP | 316 Stainless SteelThe Goulds 3196 is the global benchmark for ANSI B73.1 process pumps. This 8x10-15G model is a high-capacity workhorse, featuring a 316 Stainless Steel (316SS) wet end for maximum resistance to corrosive chemicals and industrial solvents. Powered by a 50 HP motor and rated for approximately 1,700 GPM, it is ideally suited for primary plant intake, bulk chemical transfer, and large-scale industrial fluid circulation.Built on the extra-large XL power frame, this pump (S/N 200C073) is engineered to handle the high radial loads associated with a 15-inch impeller. The design features Goulds' "back pull-out" capability, allowing the rotating assembly to be serviced without disturbing the system piping, and an external impeller adjustment to maintain peak hydraulic efficiency over years of service.Technical SpecificationsManufacturer: Goulds Pumps (ITT)Model: 3196 (ANSI B73.1)Size: 8x10-15G (10" Suction, 8" Discharge)Serial Number: 200C073Year of Manufacture: 1990Material: 316 Stainless Steel (316SS)Motor: 50 HP 3-Phase InductionFlow Rate: ~1,700 GPMPower Frame: XL (Extra-Large)Max Impeller: 15"Key FeaturesIndustrial Durability: Constructed from heavy-walled 316SS, providing a significant corrosion allowance and superior structural integrity compared to modern thin-cast alternatives.XL Power Frame: Optimized bearing housing and shaft design to minimize deflection, extending the life of both the mechanical seal and the bearings.Serviceability: The external impeller adjustment allows for clearance restoration in minutes, maintaining factory-level performance without a full pump teardown.ANSI Standardization: Fully interchangeable with any standard 8x10-15 ANSI piping configuration, making it a perfect "drop-in" replacement or mission-critical spare.

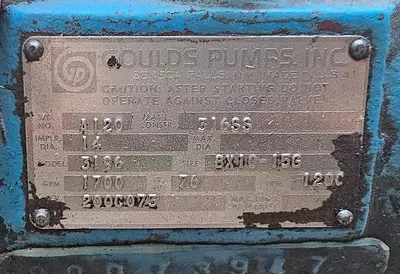

Material: 316SS
Impeller Diameter: 14"

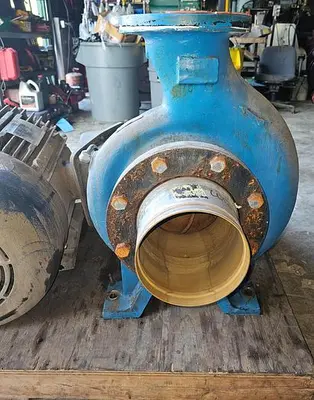

Size: 8X10-15G
GPM Flow Rating: 1700
Ft HD: 76
RPM: 1200
Service Factor: 1.15
Frame: 365T
Enclosure: TEFC
* Material: 316 Stainless Steel (316SS)

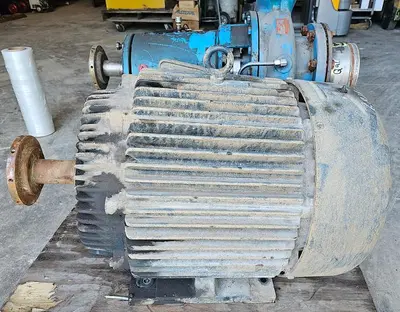

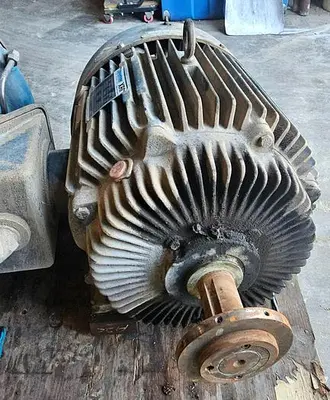

* Motor: 50 HP 3-Phase Induction
* Flow Rate: ~1,700 GPM
* Power Frame: XL (Extra-Large)
* Max Impeller: 15"
