USED 1987 GOULDS 3196

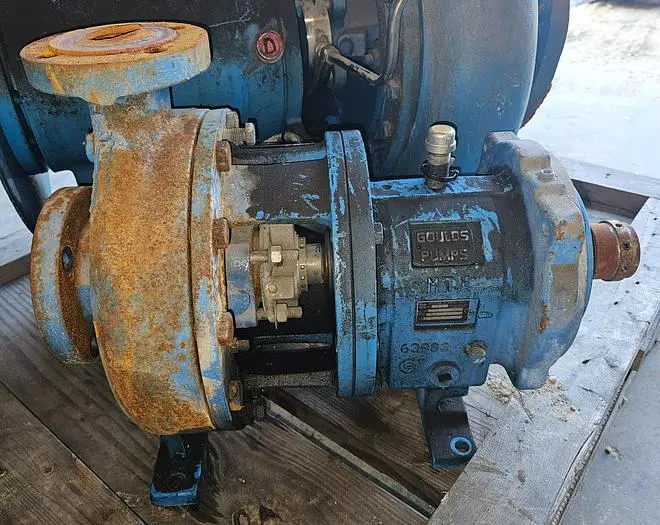

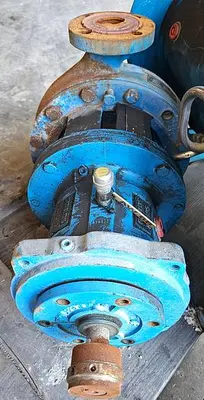

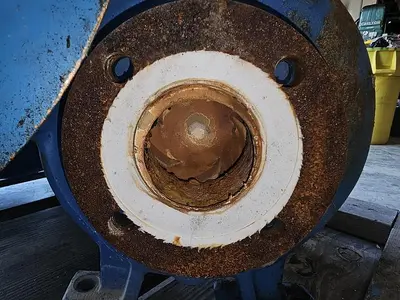

Goulds 3196 2x3-10 ANSI Process Pump End | 316 Stainless SteelThe Goulds 3196 is the quintessential ANSI process pump, recognized globally for its reliability in chemical and high-temperature services. This 2x3-10 pump end is constructed from premium 316 Stainless Steel (316SS), providing excellent corrosion resistance and mechanical integrity. It is an ideal asset for chemical transfer, solvent handling, and industrial process circulation.This 1987 unit (S/N 771E101) features the robust MTX power frame, designed for heavy-duty industrial use with a focus on bearing longevity and shaft stability. Utilizing Goulds' proven "back pull-out" design, this pump end allows for seamless maintenance of the rotating assembly without the need to disconnect system piping, significantly reducing downtime and labor costs.Technical SpecificationsManufacturer: Goulds Pumps (ITT)Model: 3196 (ANSI B73.1 Standard)Size: 2x3-10 (3" Suction, 2" Discharge)Serial Number: 771E101Year of Manufacture: 1987Material: 316 Stainless Steel (316SS)Power Frame: MTX (Medium Frame)Max Impeller Diameter: 10" (Standard)Flow Rate: Up to 400–600 GPM (Depending on RPM/Trim)Max Head: 350+ FeetKey FeaturesLegacy 316SS Casting: Built during an era of heavy-walled industrial castings, providing a substantial corrosion allowance and long-term durability.MTX Power Frame: Engineered with large oil reservoirs and high-load bearings, the MTX frame is the industry workhorse for mid-sized ANSI pumps.External Impeller Adjustment: Allows for the restoration of factory clearances in minutes, maintaining peak hydraulic efficiency without pump disassembly.Total Interchangeability: As a standard ANSI B73.1 pump end, this unit is a "drop-in" replacement for any existing 2x3-10 setup, regardless of the original manufacturer.

Size: 2X3-10

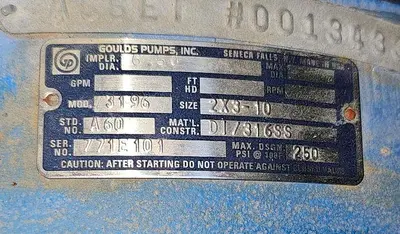

Impeller Diameter: 6.5"

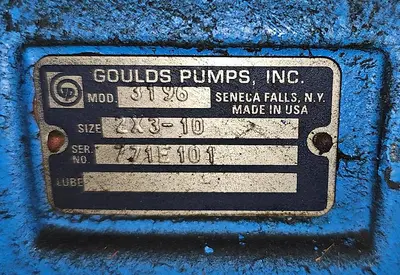

S/N: 771E101
