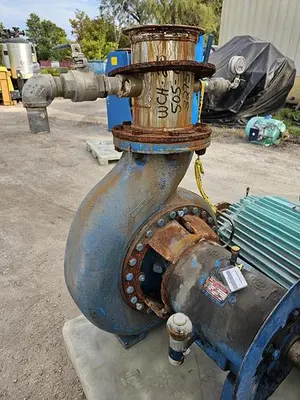

USED 1993 GOULDS 3196XL

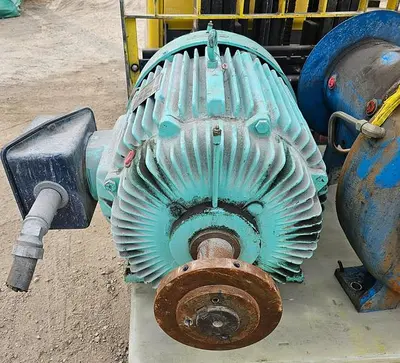

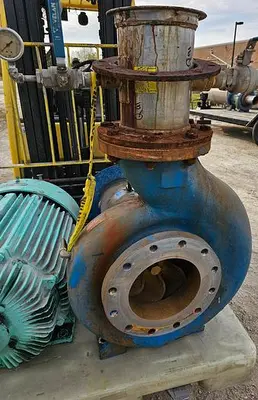

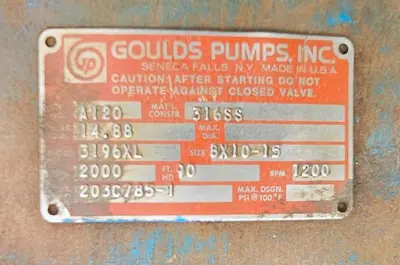

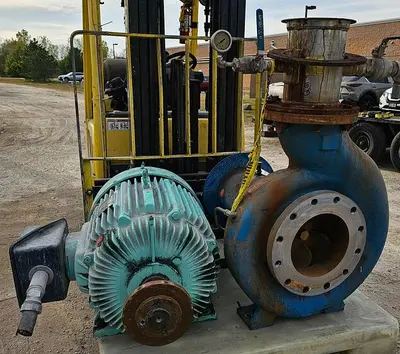

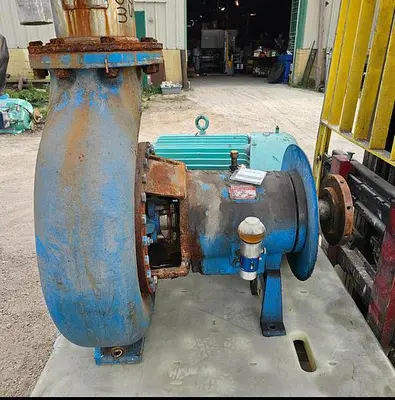

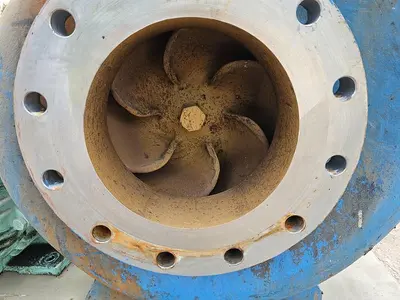

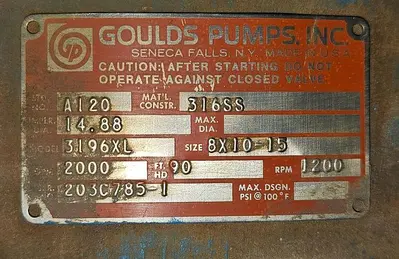

Goulds 3196XL 8x10-15 ANSI Process Pump | 75 HP | 316 Stainless SteelThe Goulds 3196XL is a high-capacity ANSI process pump designed for the most demanding chemical and industrial fluid transfer applications. This extra-large 8x10-15 configuration is constructed from 316 Stainless Steel (316SST), providing maximum resistance to corrosion and erosion. Rated for 2,000 GPM, it serves as a primary intake and process workhorse for large-scale manufacturing facilities.This 1993 unit (S/N 203C785-I) features the rugged XL power frame, engineered with a heavy-duty shaft and oversized bearings to handle the high radial loads of the 15" impeller. The "back pull-out" design ensures that maintenance on the rotating assembly can be performed without disturbing the suction or discharge piping, a critical feature for minimizing plant downtime.Technical SpecificationsManufacturer: Goulds Pumps (ITT)Model: 3196XL (Extra-Large ANSI)Size: 8x10-15 (10" Suction, 8" Discharge)Serial Number: 203C785-IYear of Manufacture: 1993 (January)Material: 316 Stainless Steel (316SST)Motor: 75 HP High-Efficiency Induction MotorFlow Rate: 2,000 GPMPower Frame: XL (Extra-Large)Impeller: Fully Open Process Impeller (15" Max)Key FeaturesCorrosion-Resistant 316SST: The heavy-walled 316 Stainless Steel wet end is designed for long-term service in aggressive chemical and process environments.Heavy-Duty XL Frame: The XL series power end provides superior shaft stiffness and bearing life compared to standard ANSI frames, specifically optimized for the larger 8x10-15 casing.Maintenance Efficiency: The back pull-out design and external impeller adjustment allow for rapid service and "like-new" clearance restoration without complete pump teardown.ANSI B73.1 Standard: Fully interchangeable with existing ANSI systems, allowing for a seamless "drop-in" replacement or high-value critical spare.

Material: 316SST
GPM Rating: 2500
Size: 8x10-15
Impeller Diameter: 14.88
Ft HD: 90
Frame: 405T
Enclosure: TEFC
* Material: 316 Stainless Steel (316SST)
* Flow Rate: 2,000 GPM
* Power Frame: XL (Extra-Large)
