USED 1982 GOULDS 3196

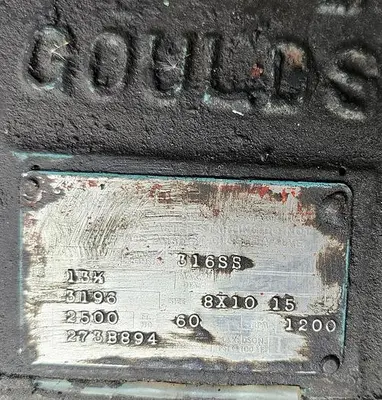

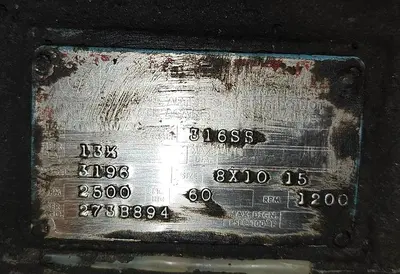

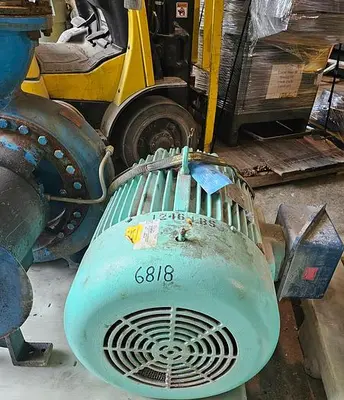

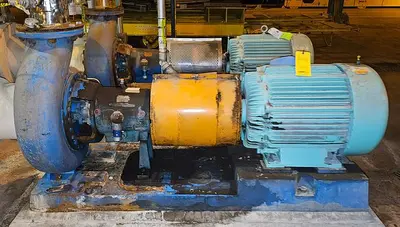

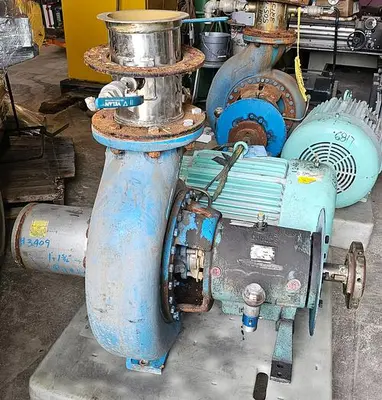

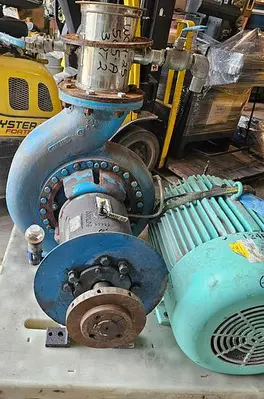

Goulds 3196 8x10-15 ANSI Process Pump | 75 HP | 316 Stainless SteelThe Goulds 3196 is the definitive ANSI process pump, set as the industry benchmark for high-volume chemical and fluid transfer. This large-frame 8x10-15 configuration, constructed from premium 316 Stainless Steel (316SST), is designed for the most demanding corrosive services. Capable of moving up to 2,500 GPM, it serves as a primary workhorse for plant intake, bulk chemical circulation, and large-scale industrial processing.This unit (S/N 273B894) features the classic heavy-duty Goulds architecture, offering exceptional mechanical stability and a "back pull-out" design for rapid maintenance. Built in 1982, this machine comes from an era of over-engineered industrial durability, making it a perfect candidate for continued high-duty cycle service or a high-value spare for critical systems.Technical SpecificationsManufacturer: Goulds Pumps (ITT)Model: 3196 (ANSI Standard)Size: 8x10-15 (10" Suction, 8" Discharge)Serial Number: 273B894Year of Manufacture: 1982Material: 316 Stainless Steel (316SST)Motor: 75 HP High-Efficiency Induction MotorFlow Rate: Rated for up to 2,500 GPMMax Impeller Diameter: 15" (Standard)Power Frame: Heavy-Duty ANSI FrameService: Corrosive Chemicals, Industrial Process, Bulk TransferKey FeaturesLegacy 316SST Durability: Constructed from heavy-walled 316 Stainless Steel, providing superior corrosion and erosion resistance compared to modern thin-cast alternatives.Fully Open Impeller: Specifically designed for process services, handling solids and stringy fibers while allowing for easy external clearance adjustments to maintain factory efficiency.Back Pull-Out Design: Simplifies maintenance by allowing the removal of the rotating assembly without disturbing the suction or discharge piping.Standardized ANSI Dimensions: Fully interchangeable with any modern ANSI B73.1 system, ensuring easy "drop-in" installation and parts availability.

Material: 316SST
GPM Rating: 2500
Size: 8x10-15
Frame: 405T
Enclosure: TEFC
* Material: 316 Stainless Steel (316SST)
* Max Impeller Diameter: 15" (Standard)
* Power Frame: Heavy-Duty ANSI Frame
