| X Axis | 47.2" | 1,198.9 mm |
| Y Axis | 23.6" | 599.44 mm |
| Z Axis | 23.6" | 599.44 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT-50 | CAT-50 |
| Table-W | 23.6" | 599.44 mm |
| Table-L | 51.2" | 1,300.5 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc 18i-MB CNC Control) | CNC (Fanuc 18i-MB CNC Control) |
| Dimensions | 134″ x 98″ x 110″ High Approx. | 134″ x 98″ x 110″ High Approx. |
| Weight | 16500 lbs Approx. | 16500 lbs Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

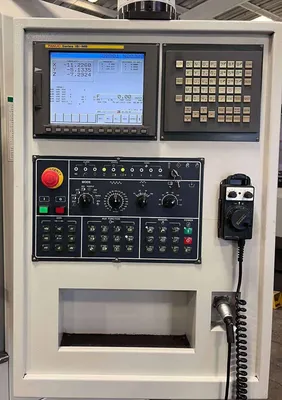

Fanuc 18i-MB CNC Control
6,372 Hours Cutting Time
Box Way Construction
6000 RPM Spindle
PCMCIA Interface
Rigid Tapping

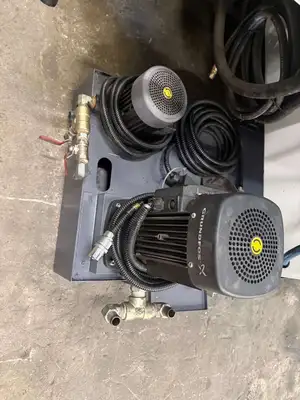

Coolant System

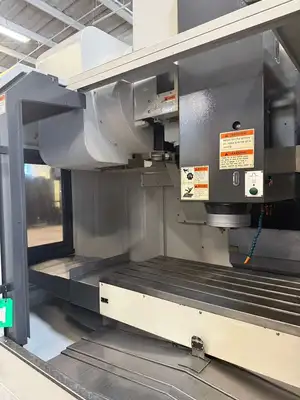

Table:
Length: 51.2″
Width: 23.6″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 2650 lbs
Travel:
X-Axis: 47.2″
Y-Axis: 23.6″
Z-Axis: 23.6″
Rapid Traverse Rates: 945 Inch Per Minute
Cutting Feed Rates: 788 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4.9″ – 28.5″
Spindle:
Taper Size: CAT-50
Speed Range: 6000 RPM
Spindle Power: 25 HP
Tool changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 33 lbs
Max Tool Dia: 7.8″
Max Tool Length: 11.8″
Tool Changing Time: 2.7 Seconds

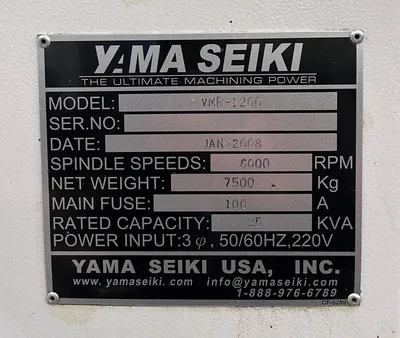

General:
Air Required: 85 psi, 6 scfm
Power: 220v / 50/60 Hz / 3-Phase / 25 kva
Overall Dimensions: 134″ x 98″ x 110″ High Approx.
Weight: 16,500 lbs Approx.
CAT-50 Taper Gear Head Spindle
30 Station Automatic Tool Changer
Through Spindle Coolant
MPG Handwheel Control
Spindle Chiller Unit
Chip Conveyor
