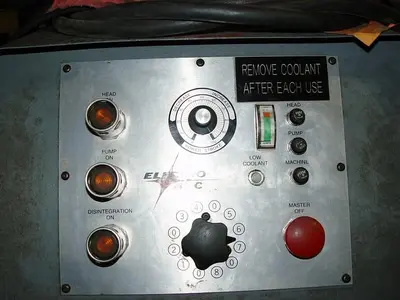

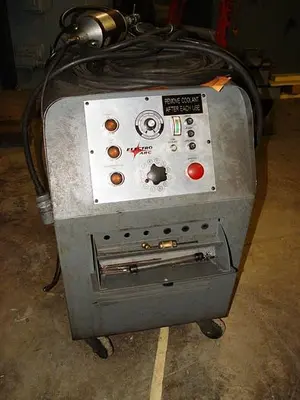

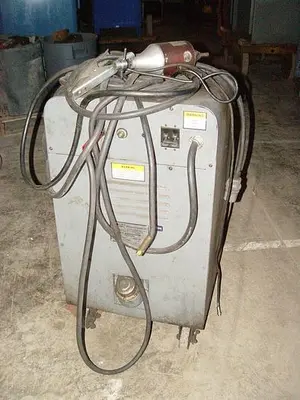

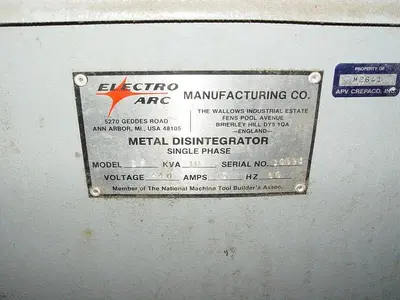

Electro Arc Model 2-S Portable Metal Disintegrator | 10 KVA | 440VThe Electro Arc Model 2-S is the industrial standard for portable, high-speed tap and drill removal. This self-contained unit is engineered to shatter broken HSS tooling from #2 up to 1-1/4" in a single pass without damaging the surrounding workpiece threads. Built with a heavy-duty 10 KVA power supply and a dedicated 90 PSI coolant system, the 2-S provides the "brute force" necessary for 24/7 maintenance and machine shop service.This unit (S/N 10093) features the classic 4-caster cabinet design for easy movement across the shop floor and includes the integrated tool storage drawer. Whether you are using the head in its portable configuration or chucked into a drill press via its 1/2" shank, this machine is designed to eliminate scrap and save hours of manual extraction labor.Technical SpecificationsManufacturer: Electro Arc (Stillion Industries)Model: 2-SSerial Number: 10093Year of Manufacture: Late 1970sPower Supply: 10 KVAElectrical: 440V, 1 Phase, 60 Hz, 13 AmpsDisintegration Capacity: #2 (2mm) to 1-1/4" (32mm)Coolant System: 7.4-Gallon Tank / 90 PSI PumpOperating Head: Arc-er or LBH (Verify head type on unit)Net Weight: ~450 lbsFootprint: 20" W x 22" D x 39" HKey FeaturesPortable Cabinet Design: Heavy-duty casters and a built-in push handle allow for rapid response to broken tools anywhere in the facility.Precision Disintegration: The AC patented process shatters the core of the broken tool, allowing the flutes to be easily removed without heat-distortion to the part.Versatile Head Mounting: The head can be operated at any angle and features a 1/2" x 2" straight shank for easy mounting in standard shop machinery.Industrial Durability: Vintage Electro Arc units are renowned for their longevity; these machines are fully rebuildable and supported by factory parts today.Integrated Storage: Includes a built-in drawer for organized storage of electrodes, collets, and tools.
Item type: Tap Disintigrator
* Power Supply: 10 KVA
* Net Weight: ~450 lbs
