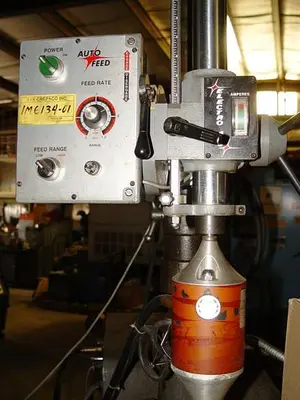

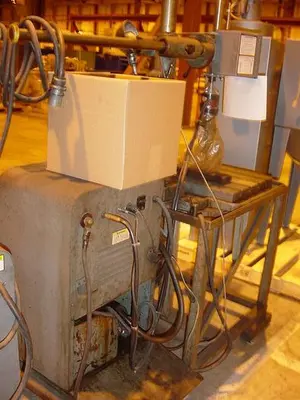

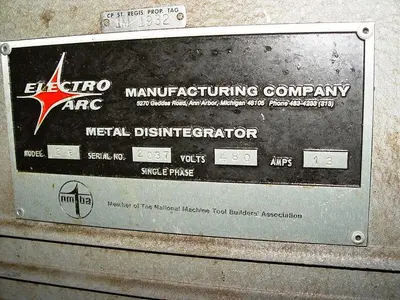

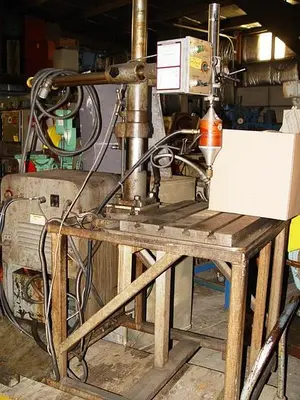

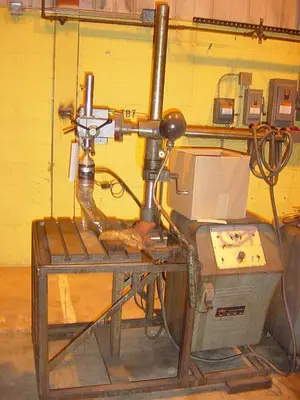

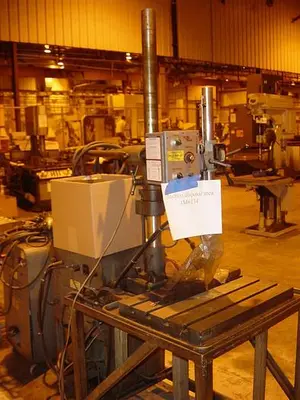

Electro Arc 18 KVA Portable Tap Disintegrator | Model 2-S | Power FeedThe Electro Arc Model 2-S is a heavy-duty, portable metal disintegrator designed for the precision removal of broken taps, drills, and studs. Known as the "workhorse" of the industry, the 2-S allows for the non-contact extraction of hardened tools without damaging the parent metal or original threads.This specific unit (S/N 2037) is equipped with a swiveling head and automatic power feed, allowing for angled disintegration and hands-free operation. Featuring the high-capacity 18 KVA / 480V power supply, this machine is capable of handling larger tool removals that would stall smaller units. Mounted on heavy-duty casters with an integrated coolant system, the Model 2-S is the ultimate "part saver" for any high-volume machine shop or heavy equipment repair facility.Technical SpecificationsManufacturer: Electro Arc Manufacturing Co.Model: 2-S (Portable)Serial Number: 2037Year of Manufacture: Circa 1971Head Type: Swiveling ARC-ER HeadFeed Type: Automatic Variable Power FeedPower Supply: 18 KVA High-Output TransformerElectrical: 480V, 1 Phase, 60 Hz (13 Amps)Table Size: 20" x 22" (Cast Iron with T-slots)Coolant System: Integrated Tank and 90 PSI PumpApproximate Weight: 450 lbsKey FeaturesSwiveling Head Assembly: Enables the head to be positioned at any angle, allowing for the extraction of broken tools in workpieces that cannot be squared up vertically.Automatic Power Feed: Reduces operator fatigue and improves electrode life by maintaining a precise, consistent arc gap throughout the disintegration process.18 KVA Transformer: Provides the high-amperage current necessary to burn through large diameter bolts and carbide drills quickly.Portable C-Frame Design: Heavy-duty casters allow the entire unit to be rolled directly to large workpieces, or the head can be removed for use on oversized castings.Non-Destructive EDM Process: Uses high-frequency spark erosion to remove the core of the tool, leaving the workpiece threads completely intact and the metallurgy unaffected.
Item type: Tap Disintigrator
* Head Type: Swiveling ARC-ER Head
* Feed Type: Automatic Variable Power Feed
* Power Supply: 18 KVA High-Output Transformer
* Approximate Weight: 450 lbs
