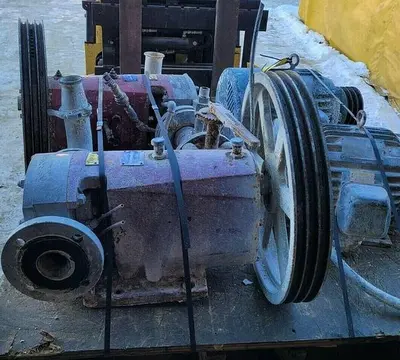

USED LOBEFLO SR/4/055/LS

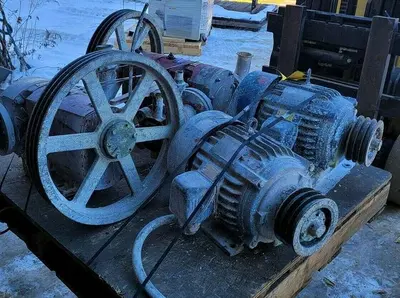

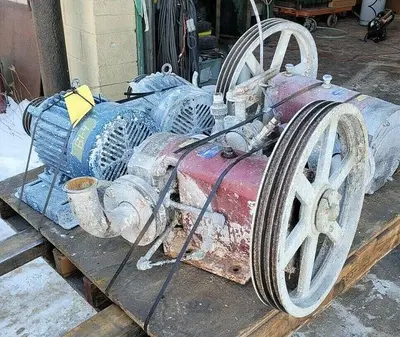

Lobeflo SR/4/055/LS Rotary Lobe Pump | 15 HP Hostile Duty DriveThe Lobeflo SR series is a premier industrial solution for positive displacement pumping. This SR/4/055/LS model (Pump #: 60722/01A) is constructed from high-grade 316 Stainless Steel, providing excellent chemical resistance and durability. Known for its gentle, low-shear pumping action, it is ideal for handling viscous fluids, delicate solids, or shear-sensitive media in food, chemical, and waste-handling sectors.This unit is powered by a 15 HP Hostile Duty drive motor, engineered to withstand harsh environments and provide the torque necessary for high-viscosity transfer at a consistent 1165 RPM. The tri-lobe rotor design ensures pulse-free delivery and high volumetric efficiency, while the modular gearbox allows for flexible porting to fit your facility's layout.Technical SpecificationsManufacturer: Lobeflo (MGI Pumps)Model Number: SR/4/055/LSPump Number: 60722/01AMaterial: 316 Stainless Steel (316SS)Motor: 15 HP Hostile Duty DriveVoltage: 230/460V, 3-PhaseSpeed: 1165 RPMFrame Size: 215TInlet/Outlet: 2-1/8" DiameterPump Type: Positive Displacement Rotary LobeKey Features316SS Construction: All wetted parts are cast from 316 Stainless Steel, ensuring maximum protection against corrosion and contamination in aggressive process environments.High-Torque Hostile Duty Motor: Specifically rated for severe duty, this 15 HP motor is designed to provide long-term reliability in damp, dusty, or corrosive atmospheres.Low-Shear Displacement: The tri-lobe design moves fluid in fixed volumes without crushing or shearing, making it perfect for gels, emulsions, and delicate food products.Back Pull-Out Design: Allows for easy inspection of rotors and mechanical seals without disconnecting system piping, significantly reducing downtime for routine maintenance.

Rated power: 15 hp

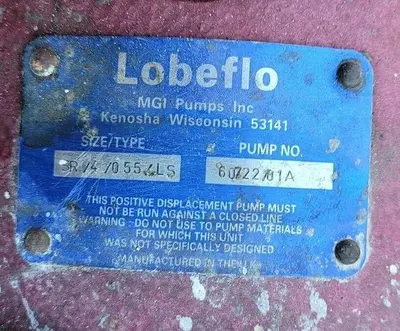

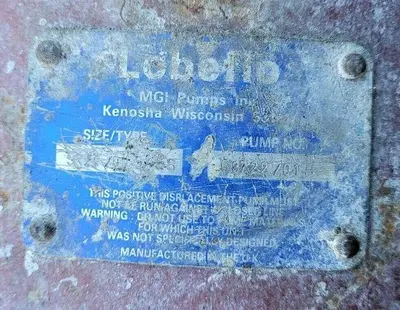

* Pump Number: 60722/01A
* Material: 316 Stainless Steel (316SS)
* Voltage: 230/460V, 3-Phase
* Frame Size: 215T
* Speed: 1165 RPM
* Pump Type: Positive Displacement Rotary Lobe

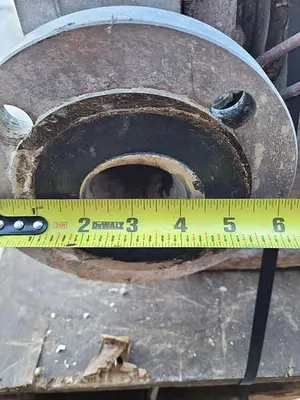

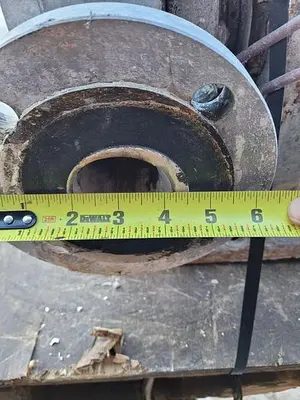

* Inlet/Outlet: 2-1/8" Diameter
