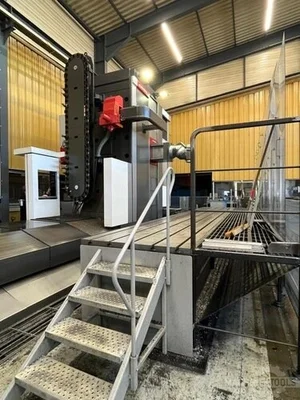

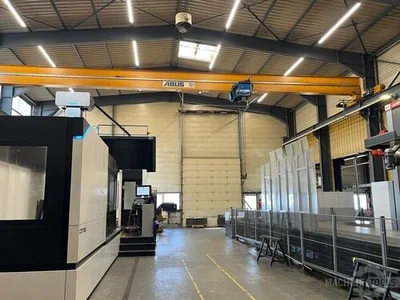

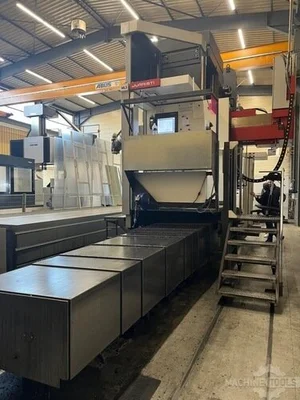

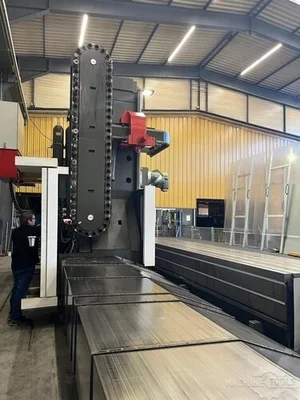

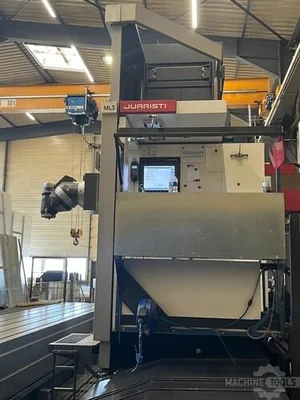

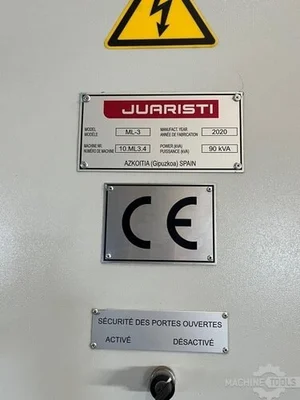

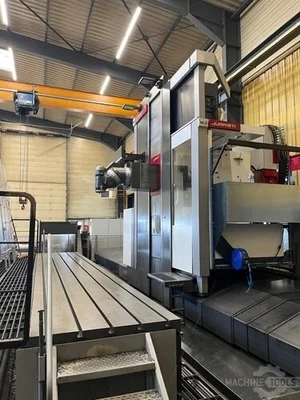

USED 2020 JUARISTI ML3

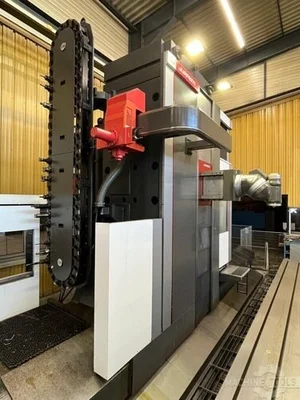

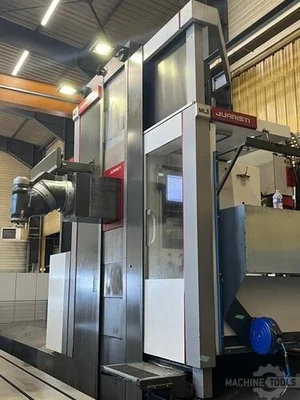

Travelling Column High performance, precision and machining power
Linear guiding of RAM combined with Hydrostatic Guiding HDS

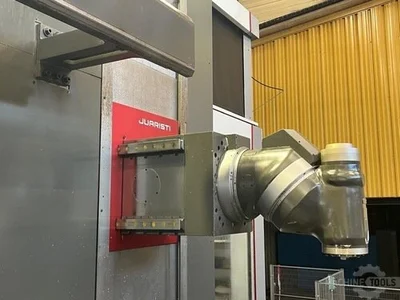

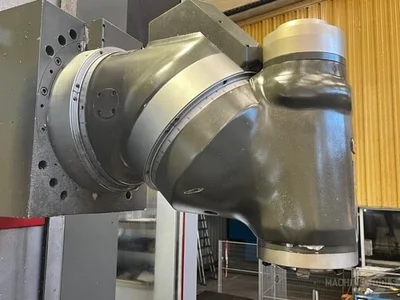

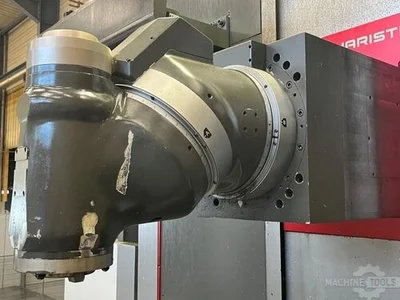

ACD2 Milling head with 5000 Rpm and 1400 Nm torq

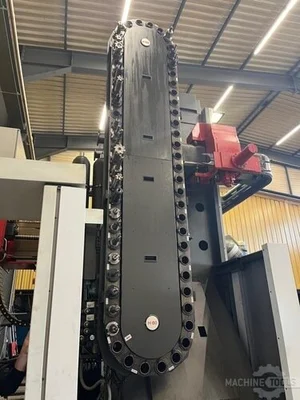

Aitek ATC chain 60 position with L=400 and 250 diameter x 35 Kg

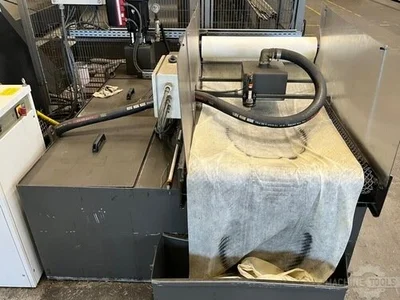

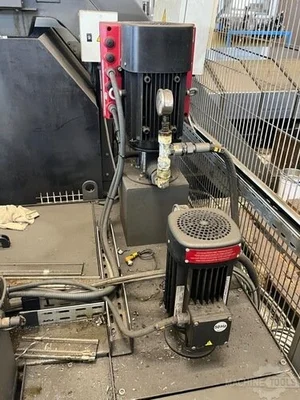

Filtration with IKZ 15 Bar
Chip conveyor
BLUM 3D Measuring probe
Wide bed linear guided in X-Travel W=930 mm

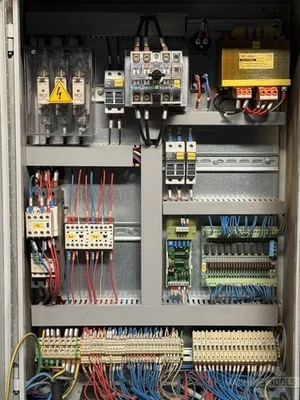

Rotary table driver prepared in E-Cabinet

X-Axis: 8000 mm
Y-Axis: 1300 mm
Z-Axis: 2500 mm
Table Length: 10000 mm
Table Width: 1250 mm
Power on spindle: 40 kW
Spindle speeds: 5000 Rpm
Spindle Taper: 50 ISO/Bt/Mk
Feed rate X-Axis: 35000 mm/min.
Feed rate Y-Axis: 40000 mm/min.
Feed rate Z-Axis: 40000 mm/min.
Millinghead auto-index: 0.001 x 0.001 Gr °
Working hours: 3800 H
Length: 13500 mm
Width: 5800 mm
Height: 4500 mm
Weight: 45000 kg
