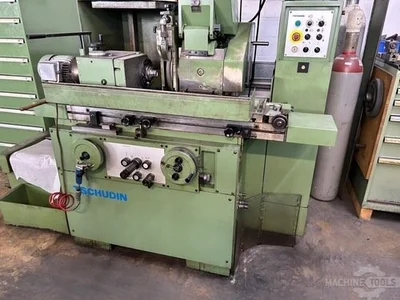

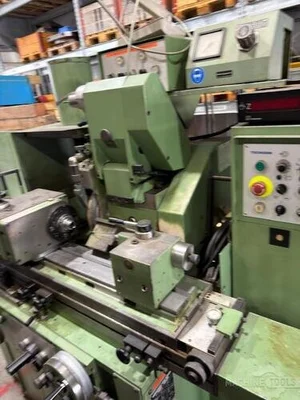

USED 1990 TSCHUDIN HTG-310

Headstock taper Mk5
Rotation headstock 360
Headstock speeds 50 - 500 Rpm
Tailstock Mk3
Stroke pinole 20 mm
Carriage length ways:
Carriage stroke lengte 340 mm
Cariiage speeds 0 5000 mm/Min
Table inclasement 11 Degreees
Carriage Cross ways
Stroke 45 mm
Adjustment 0,05 mm
Dr. HeidenHain digital readout for infeed

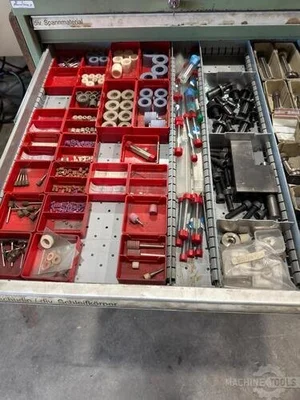

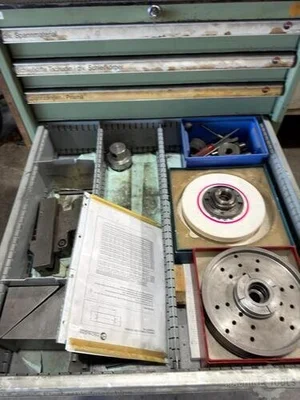

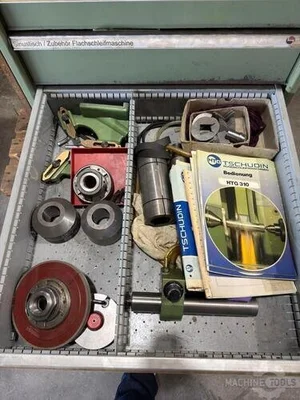

Tooling cabinet

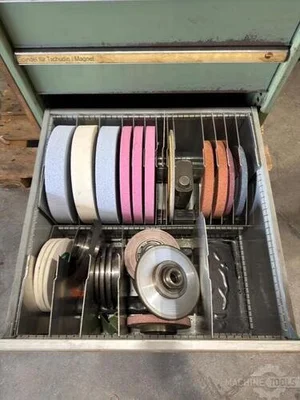

Flanches and stones

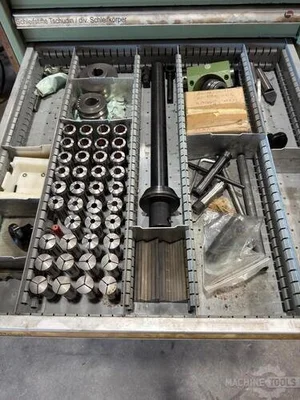

Collet device with inserts
Cups and internal stones

Centre height: 100 mm
Grinding Ø: 200 mm
Grinding length: 340 mm
Grinding stone dimensions: 350 x 50 x 127 mm
Grinding stone speeds: 1800 Rpm
Table inclasement: 10 °
Tailstock: 4 Mk
Length: 1300 mm
Width: 1500 mm
Height: 1350 mm
Weight: 2100 kg
