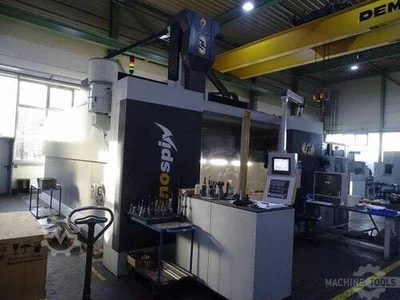

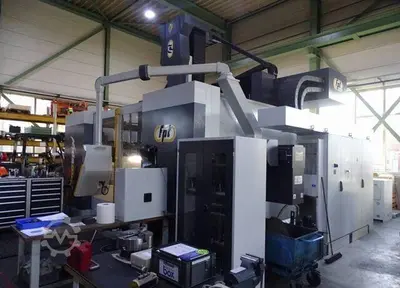

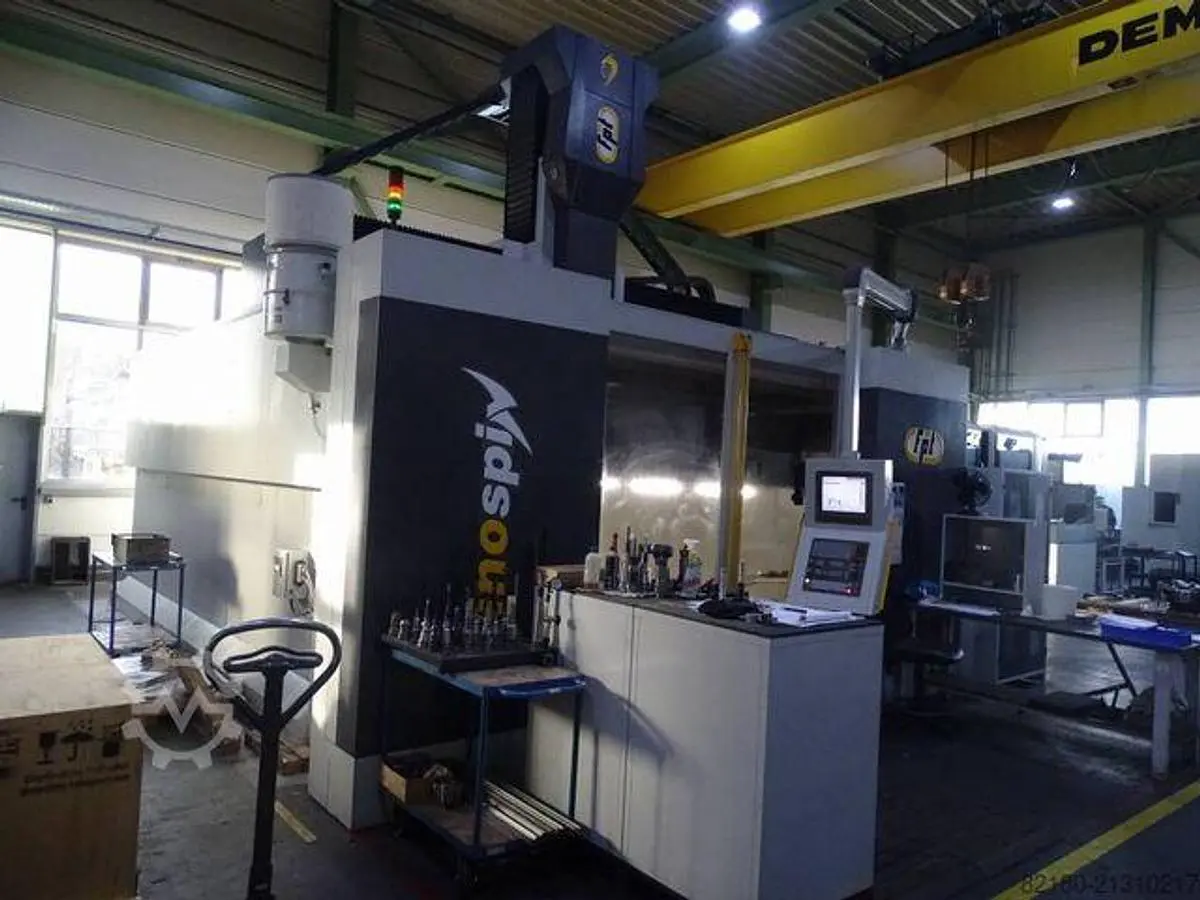

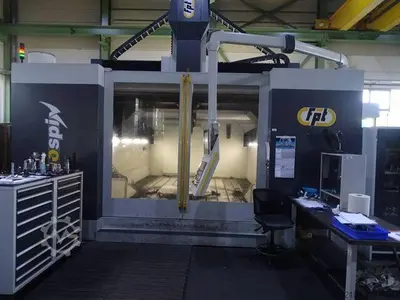

USED 2022 FPT DINOSPIN
Overview

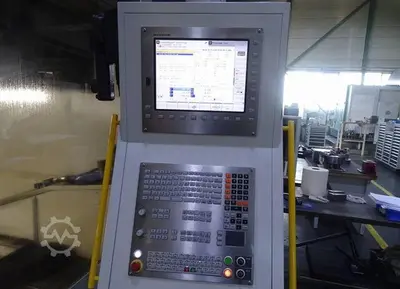

Heidenhain TNC 640 CNC Control
5-Axis Universal Piper Head - 18,000 rpm
C-Axis ± 270°
A-Axis ± 185°
Max Torque A/C Axis - 450 Nm
Max Axis Clamping Torque - 1,400 Nm
120 Position Automatic Tool Changer - HSK-A63 - DIN 69893
Electronic Handwheel
Internal External Coolant Supply
Compressed Air Through Spindle
Machine Enclosure
1x Chip Conveyor in front, 2x Chip Conveyors on sides
Specs
Manufacturer: FPT
Model: Dinospin
Year: 2022
Condition: Used
Stock Number: 5654332
Spindle speeds: 18,000 rpm
X axis travel: 4,000 mm
Y axis travel: 2,500 mm
Z axis travel: 1,300 mm
Table dimensions: 2,500 x 4,000 mm
Table capacity: 5 t/m²
Spindle taper: HSK-A63 - DOM 69893
Spindle power (S1/S6): 22 / 33 kW
Spindle torque (S1/S6): 84 / 128 Nm
Spindle speed at constant power: 2,500 - 18,000 rpm
Spindle speed at constant torque: 10 - 2,500 rpm
