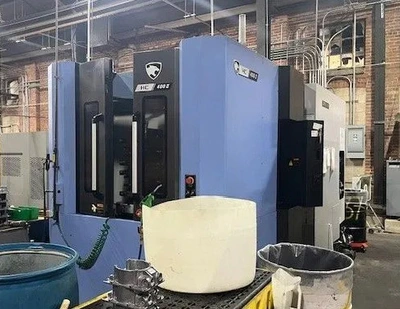

Doosan HC-400II – 2023

DOOSAN HC400II Horizontal Machining Center

X-AXIS 23.6″

Y-AXIS 22″

Z-AXIS 22.2″

# AXIS 4

POWER 25 hp

Feed Rates-

Rapid Traverse (X/Y/Z): 40 m/min / 1,575 ipm

Main Spindle-

Max Spindle Speed: 12,000 RPM

Spindle Motor: 18.5/11 kW / 25/15 hp

Max Spindle Torque: 353.4 N·m / 261 ft-lb

Spindle Taper: ISO #40 (CAT 40 / BT 40 / Big-Plus)

Pallet / Table-

Pallet Size: 400 × 400 mm / 16″ × 16″

Max Workpiece Weight: 400 kg / 882 lb

Number of Pallets: 2 (APC)

B-Axis Indexing: 1° (full 4th axis optional)

Tool Storage: 60 TOOLS

Doosan-Fanuc i Series

CHIP CONVEYER

HYDRAULICS

FULL 4TH AXIS
