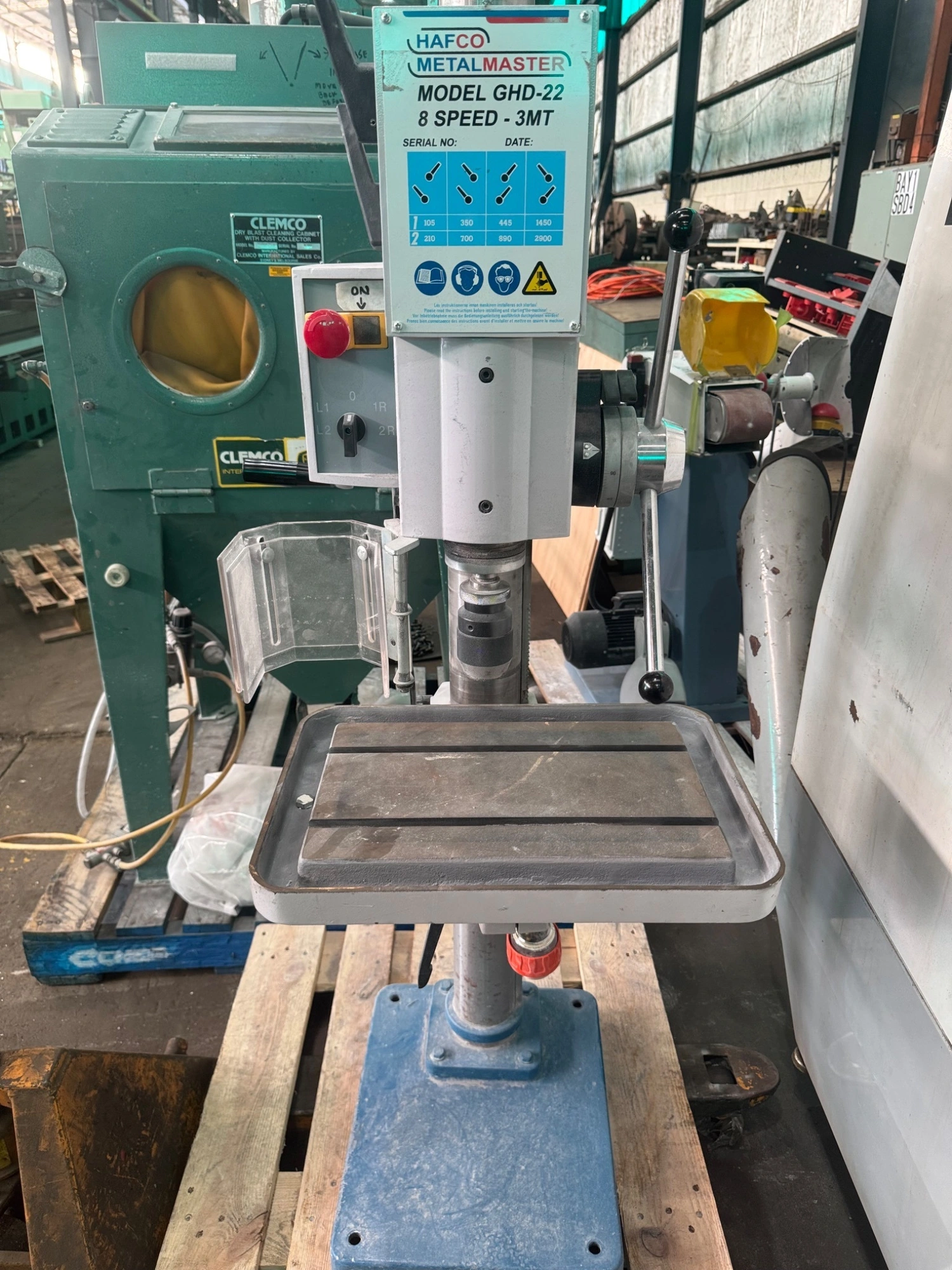

USED HAFCO GHD-22

Industrial Geared Head Drilling Machine - GHD-22A
25mm Drilling Capacity
In as new condition.
The GHD-22A Industrial Drilling Machine features a 3 Morse Taper spindle geared head rather than a pulley and belt drive system, making adjusting speed faster and simpler.
Using this machine is straightforward, thanks to its large cast table with 14mm T-slots, which rotates 360 º and uses a rack and pinion to adjust its height. Drilling speeds vary from 105 to 2900rpm and, there is a drill depth stop for accurate and repeatable drilling.
Features
Ideal for industrial or workshop use
Geared head drilling machine with 3 morse taper spindle
8 drilling speeds from 105 - 2900 rpm
High/low with forward & reverse switch
Helical cut gears for quiet & smooth operation
Interlocked spindle safety guard
Rack and pinion wind-up drill head
Rack & pinion table height adjustment with locking lever
Thick walled column ensuring greater rigidity
Drill ejector lever
Safety emergency stop/reset switch
Table rotates 360º
Drilling depth stop setting with scale
T slotted work table
