5 Axis, Heidenhain ITNC 530, 60 ATC, HSK63 Taper, 24000 RPM
| X | 82.7" | 2,100.6 mm |
| Y | 82.7" | 2,100.6 mm |
| Z | 49.2" | 1,249.7 mm |
| # Axis | 6 | 6 |
| Power | 70 hp | 52.2 kW |
| RPM | 24,000 RPM | 24,000 RPM |
| # ATC | 60 | 60 |
| Taper | HSK63 | HSK63 |

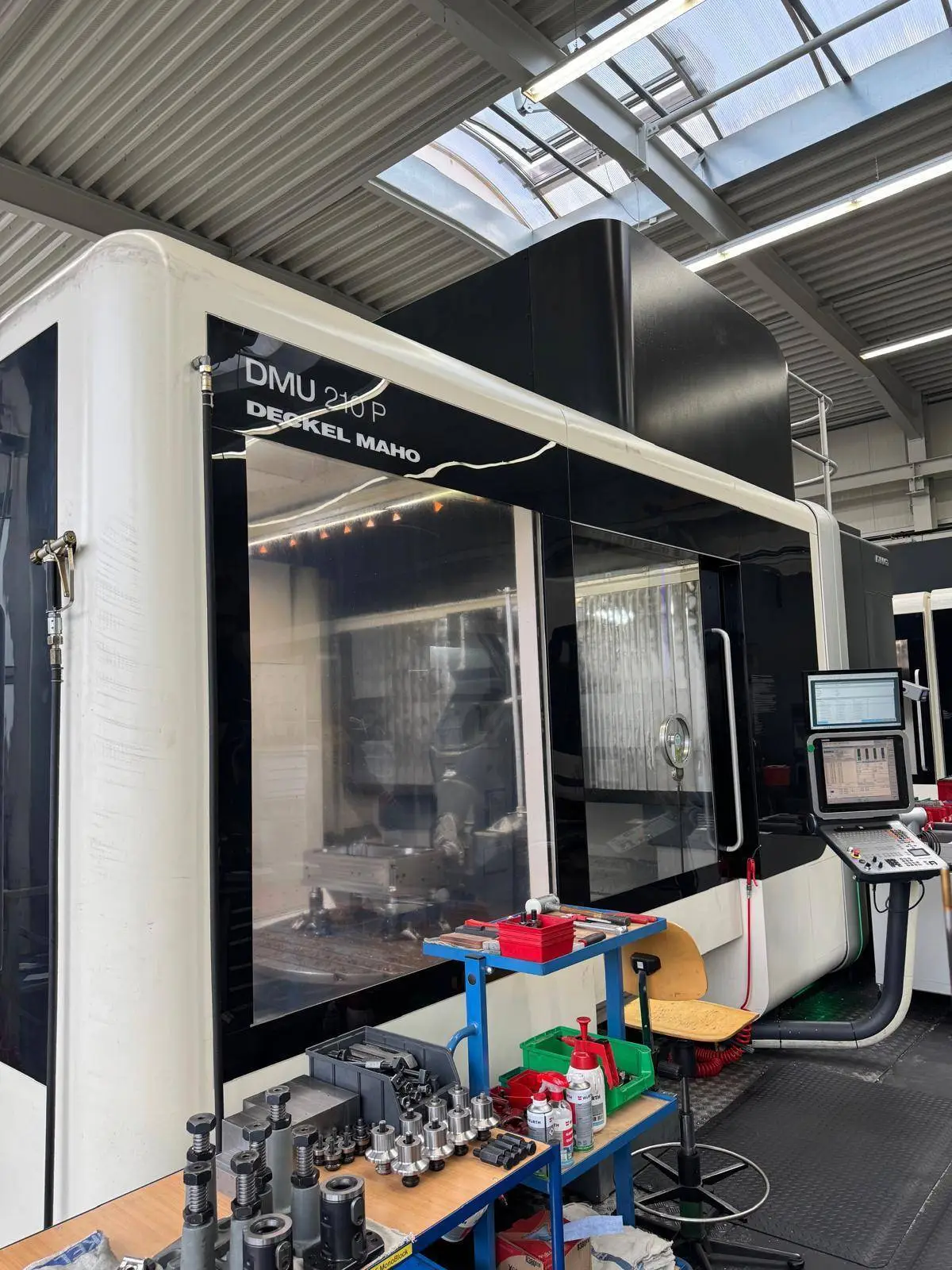

DMG DMU 210P 5 Universal Machining Center (2011)
X-Travel 1800 mm
Y-Travel 2100 mm
Z-Travel 1250 mm
Swivel range -30 / +180 °
Table Load 10000 kg
Max. rotary table diameter 1700 O
Table speed range 12 min/-1
Tool Taper HSK63
Tool Changer Positions 60
Weight Of The Machine Ca. 41 t
Motor spindle 24000 RPM
Feed drive A, C 30 min/-1
horizontal milling head 130-1.380 mm
Heidenhain ITNC 530
High Pressure Coolant
Paper Filtration
Chip Conveyor
60 Position Automatic Tool Changer
