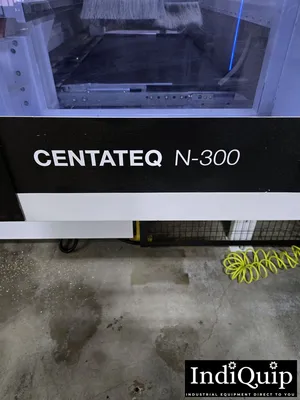

USED 2018 HOMAG CENTATEQ N-300
Overview
Description

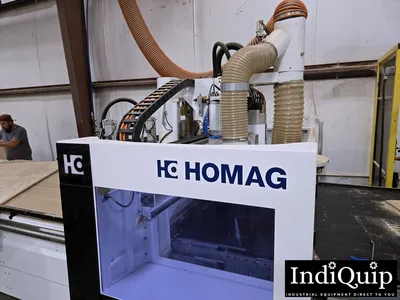

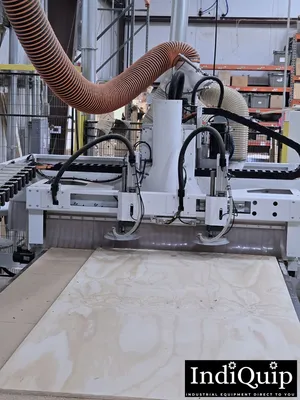

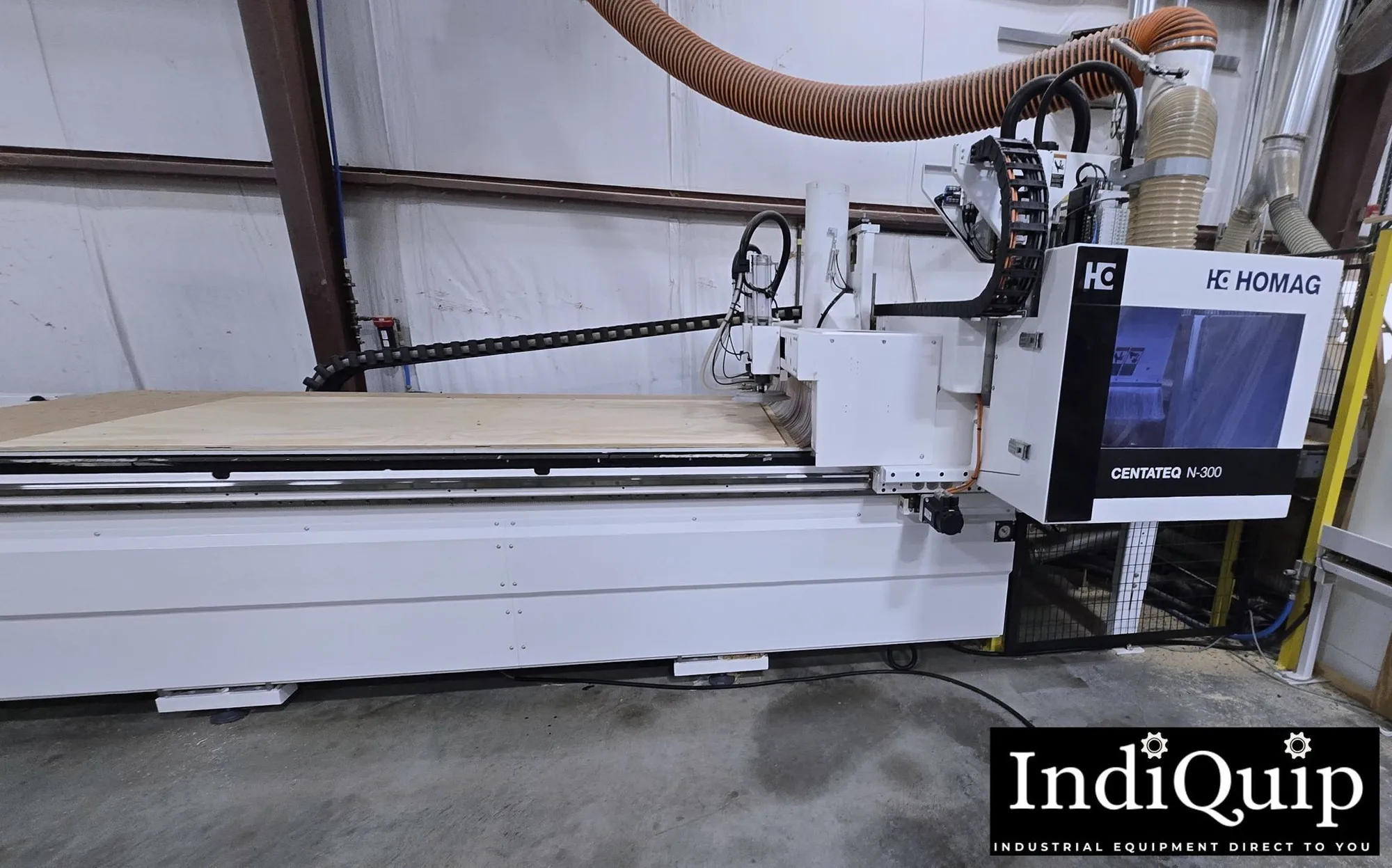

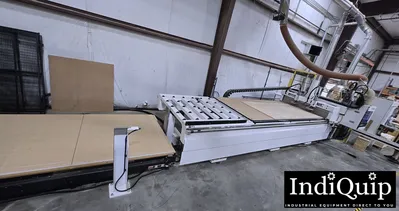

2018 HOMAG CENTATEQ N-300 CNC nesting router with 5' x 12' table, 13–18 HP HSK-63 spindle, 13-position tool changer, and vertical drilling unit. High-speed CNC with woodWOP programming and MATRIX vacuum table for cabinetry, panel processing, and nested-based manufacturing.
Specifications

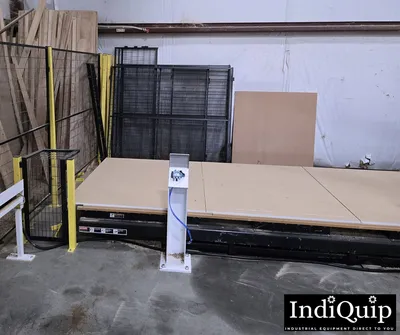

Table Size: 5' x 12'
Z Axis Clearance: 3.9"

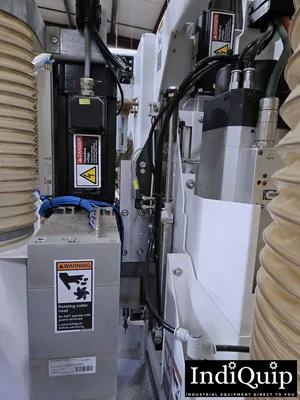

Routing Spindle: HSK-63
Spindle Power: 13 HP (10 kW) or 18 HP (13.2 kW)
Maximum Spindle Speed: 24,000 RPM

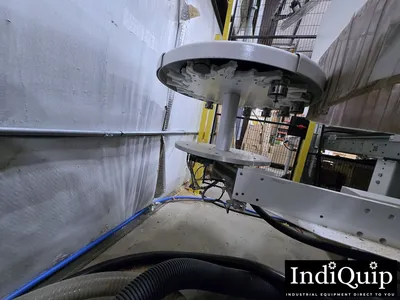

Tool Changer: 13-position automatic tool changer (disc type)
Drilling Unit: Up to 12 vertical drilling spindles

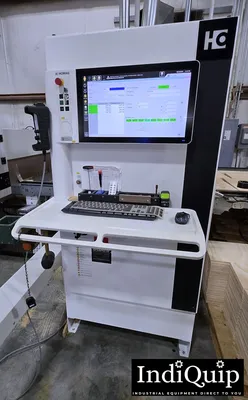

Control System: HOMAG PowerControl with powerTouch
Programming Software: woodWOP
Axis Vector Speed (X/Y): up to 96 m/min (3,780 IPM)
Z Axis Speed: 25 m/min (984 IPM)

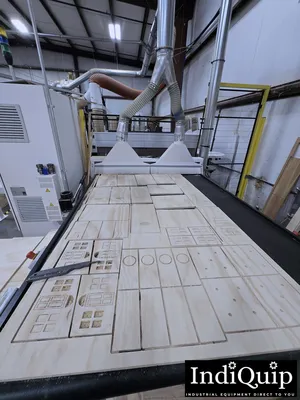

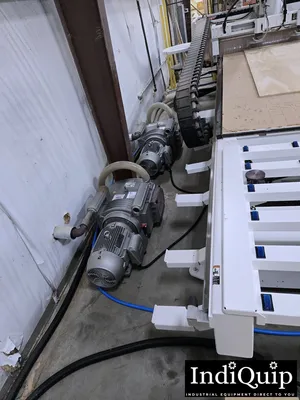

Table System: MATRIX vacuum table with segmented vacuum zones

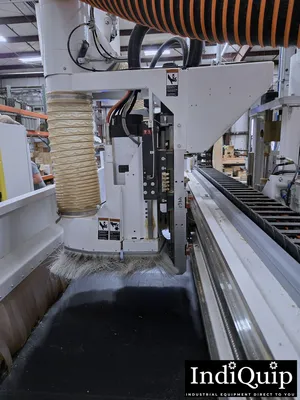

Dust Extraction Port: 7.9" (200 mm)
Compressed Air Requirement: 7 bar
Electrical Power Connection: approx. 27 kW total load
Voltage: 480V / 3 Phase / 60 Hz
