| size | 19" x 13" x 11" | 19" x 13" x 11" |
| X | 19" | 482.6 mm |
| Y | 13" | 330.2 mm |
| Z | 11" | 279.4 mm |
| Auto Threading (Yes/No) | Yes | Yes |
| Dimensions | 102″ LR x 104″FB x 84″H | 102″ LR x 104″FB x 84″H |
| Weight | 9200 LBS | 9200 LBS |

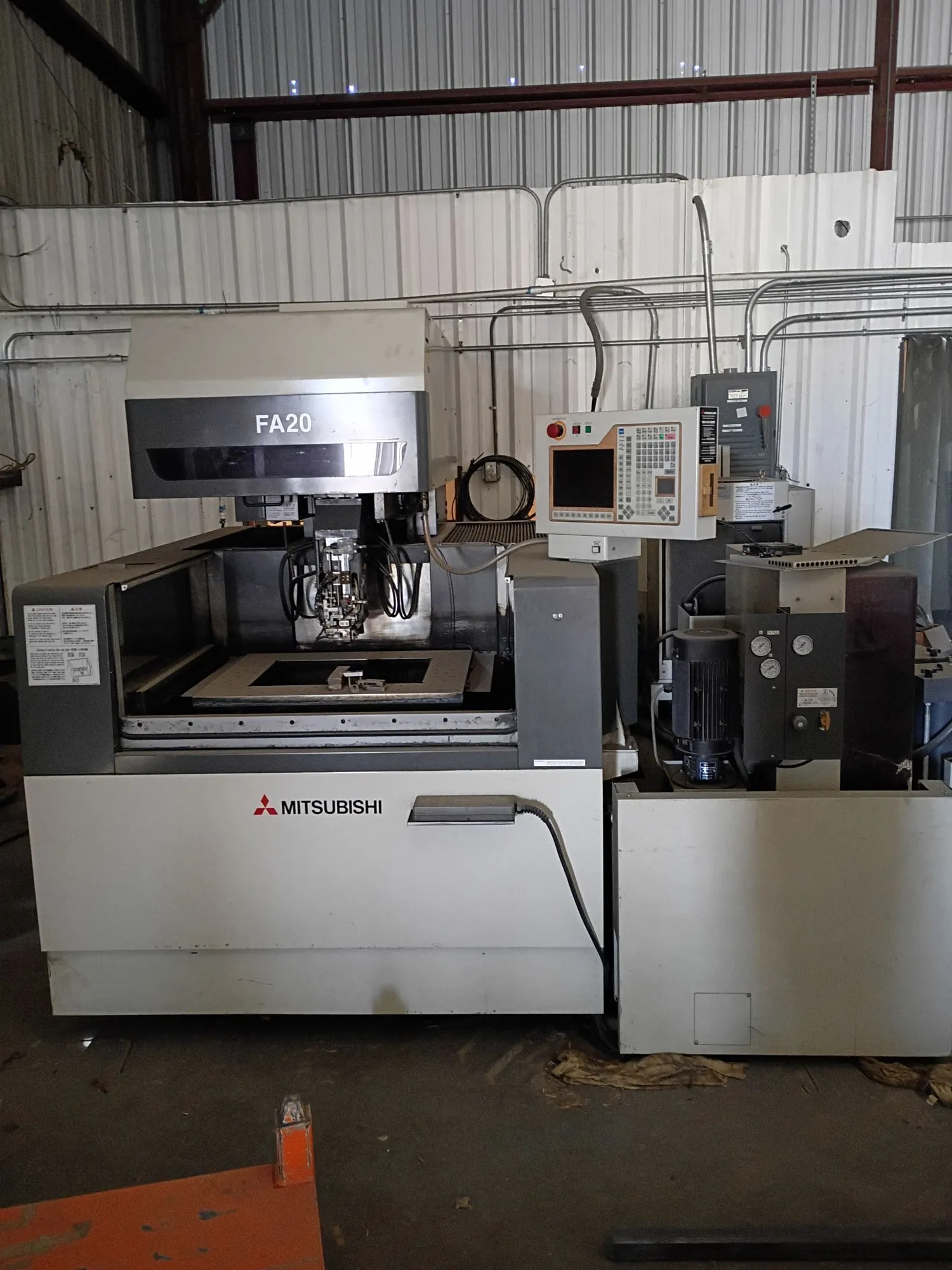

Mitsubishi FA20 Wire Type EDM Electrical Discharge Machine (2003)
Travels: 19.7″ x 13.8″ x 11.8″
Table Dimensions: 30.7″ x 24.8″
Max Workpiece Weight: 3,300 lbs
Wire Dia. Capability: .004″ – .012″
Wire Guides Included: .012″
Taper Unit Travel (U x V): +- 1.25″ x 1.25″
Electrical Requirements: 200V-220V VAC/60Hz/3Ph 13.5KVa
Total System Weight: 9,116 lbs
Footprint Dimensions (W x D x H): 102″ LR x 104″FB x 84″H
