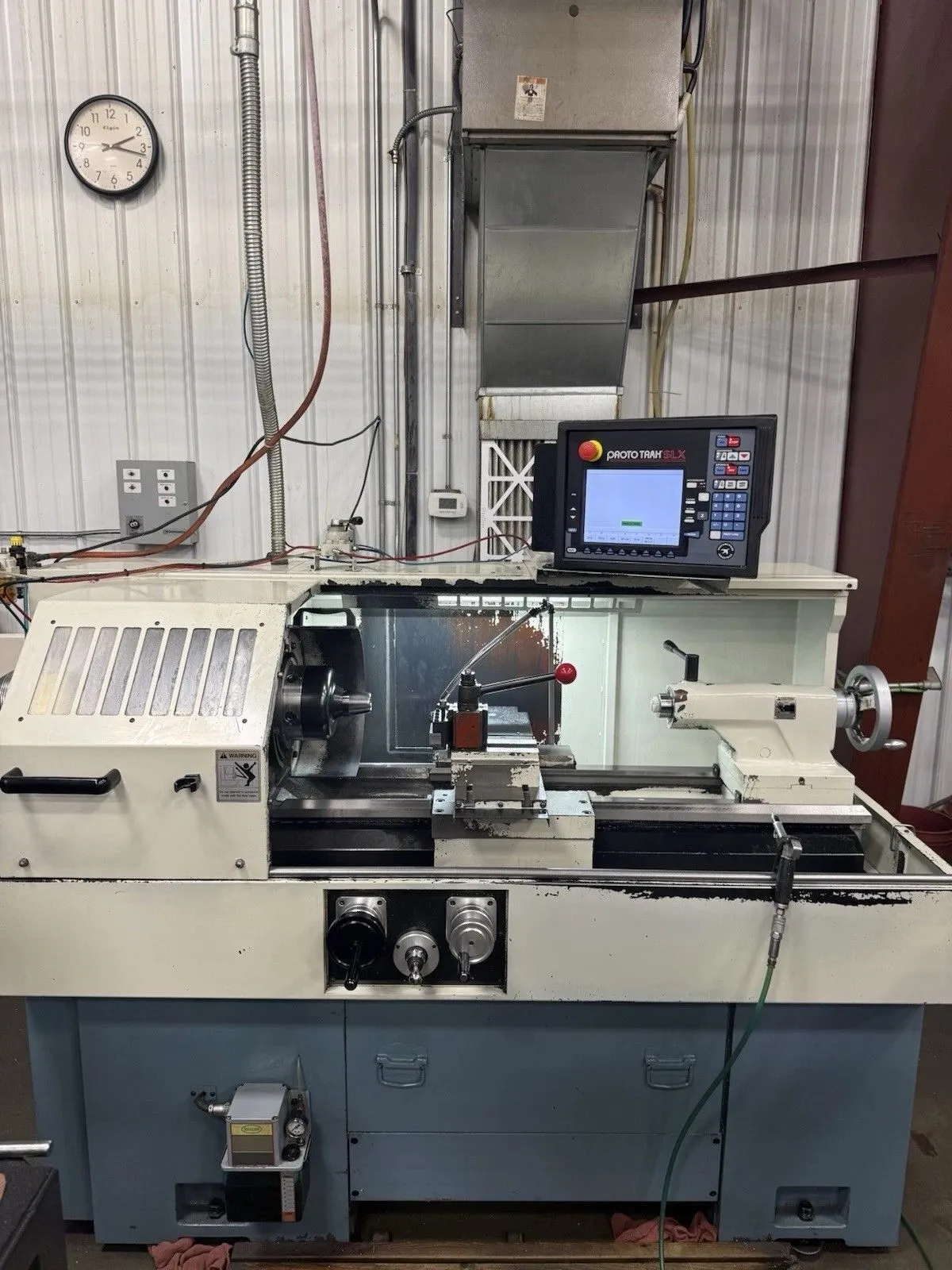

USED 2014 SOUTHWEST INDUSTRIES TRAK TRL 1630SX
Overview
2014 SWI Prototrak 1630SX CNC Lathe with SLX Control, Tailstock & Steadyrest, 3-Jaw Chuck & Royal 5C Collet.
Specs
Swing Over Bed.................16"
Swing Over Saddle Wings........16"
Swing Over Cross Alide.........8.6"
Distance Between Centers.......30"
Cross Slide Travel.............8.5"
Height of Centers..............8"
Width Of Bed...................12.6"
Height of Bed..................12.6"
Spindle Motor..................7.5 HP
Spindle Nose (Camlock).........D1-6
Spindle Through Hole...........2.12"
Spindle Taper..................MT-6
Spindle Dia At Front Bearing...3.15"
Spindle Speed..................150-2500 RPM
Tailstock Quill Travel.........6.3"
Quill Diameter.................2.36"
Quill Taper Hole...............MT-4
Tool Section Max...............3/4"
Coolant Tank Capacity..........9.3 gal.
Power Requirements, Control....110V; 1P; 8 A
Power Requirements, Machine....220V/3P/60Hz
Amps Full Load Current.........25
Dimensions Shipping............87 x 45 x 67"
Weight Approx..................3,420 lbs.
Equipped With
ProtoTRAK SLX & Pendant Control
Tailstock & Steady Rest
Coolant System
Enclosed Guards
Tooling shown
3-Jaw Chuck
Royal 5C Collet
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
