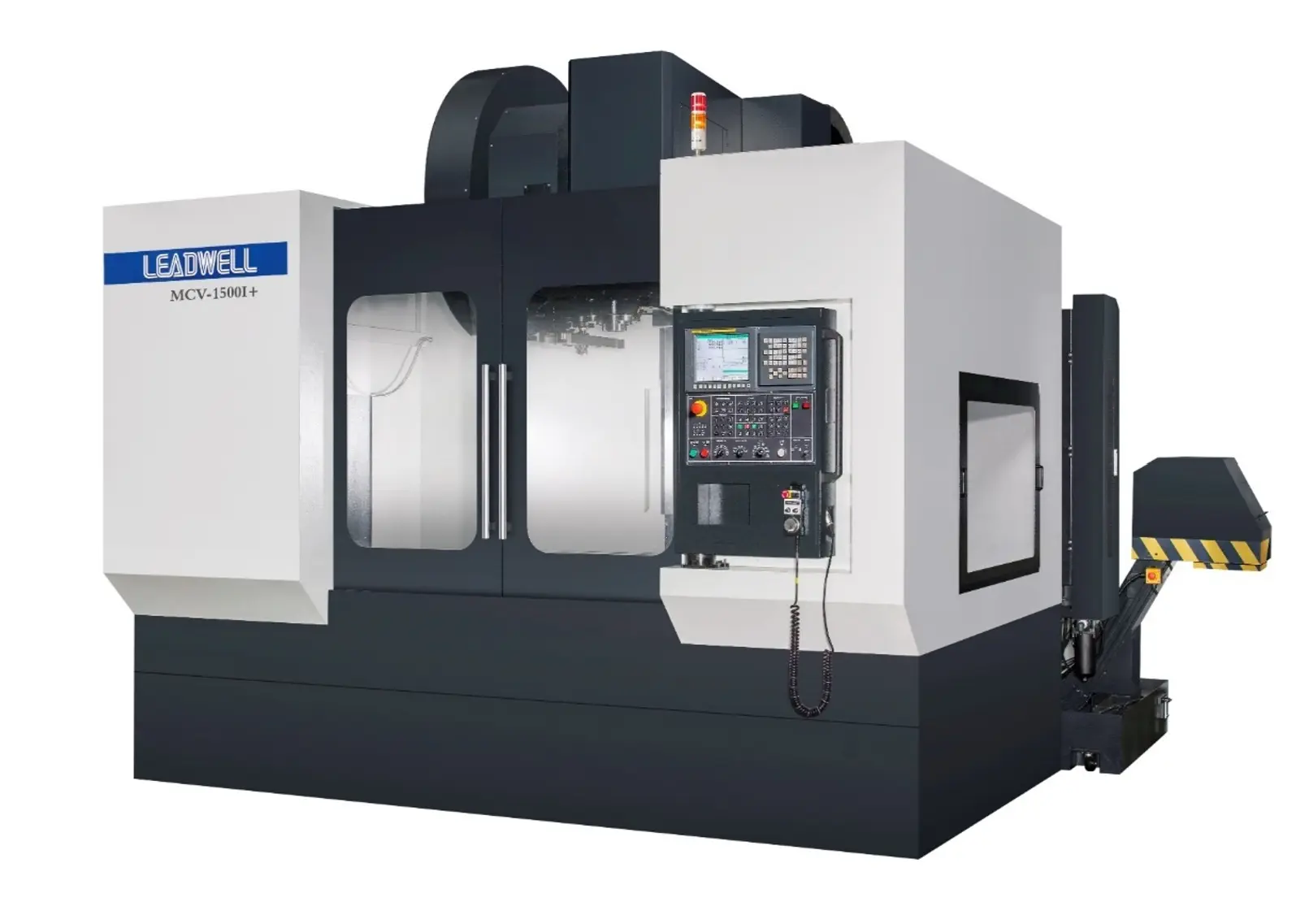

Travels : X = 60", Y = 40", Z = 36.2" ~ 50 Taper ~ 40 Tool ATC ~ Fanuc 0iMF Plus ~ 8,000 RPM Spindle, 47Hp. Fanuc A/C Spindle Motor *, 8,000 rpm Spindle with ZF gear box 5.5:1, Full Guarding, Machine is Laser Calibrated for full travel accuracy, 40 Tool Arm Magazine Style Automatic Tool Changer, BT-50 or Cat-50 Spindle Taper, Flood Coolant Unit & Spindle Coolant Ring, Heat Exchanger for cooling inside electrical cabinet, Alarm & Work Light, Spindle Air Blow to clean tool, Four screw type chip augers, Coolant Thru the Spindle Preparation, Spindle Oil chiller, BOX way all Axis, Chain Type Chip Conveyor w/Big Tank
| X | 60" | 1,524 mm |
| Y | 39.4" | 1,000.8 mm |
| Z | 28.3" | 718.82 mm |
| Power | 47 hp | 35 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 40 | 40 |
| Taper | CAT 50 | CAT 50 |
| Table-W | 29.5" | 749.3 mm |
| Table-L | 60" | 1,524 mm |
| # Axis | 3 | 3 |
| Control | CNC (• Fanuc 0i-MF Plus Controller) | CNC (• Fanuc 0i-MF Plus Controller) |
