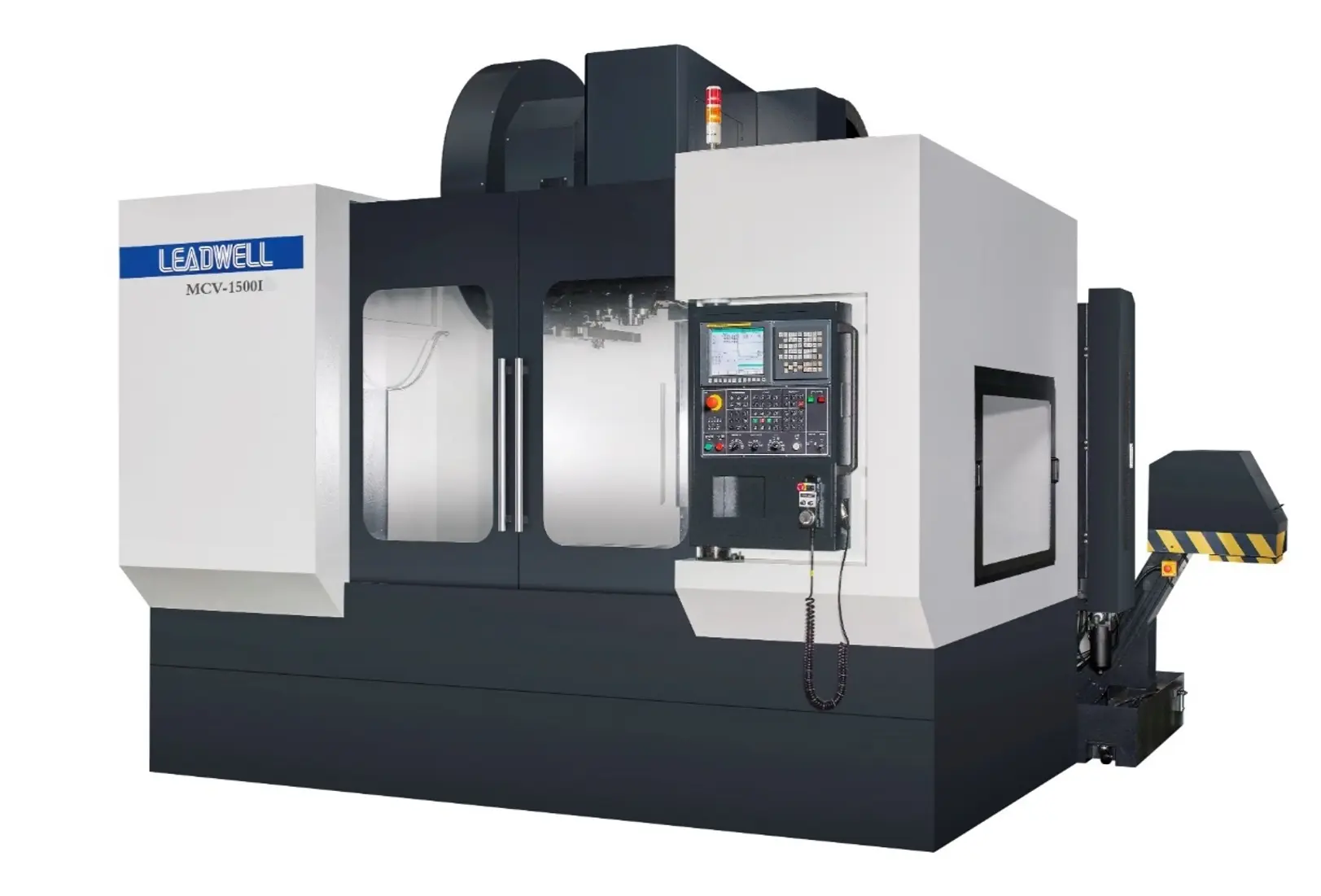

NEW LEADWELL MCV-1500I

Maine, United States
673Listings|13Followers
Overview
Vertical Machining Centers

Travels : X = 60", Y = 31.5", Z = 36.2" ~ 50 Taper ~ 40 Tool ATC ~ Fanuc 0iMF Plus ~ 8,000 RPM Spindle, 47Hp. Fanuc A/C Spindle Motor *, 8,000 rpm Spindle with ZF gear box 5.5:1, Full Guarding, Machine is Laser Calibrated for full travel accuracy, 40 Tool Arm Magazine Style Automatic Tool Changer, BT-50 or Cat-50 Spindle Taper, Flood Coolant Unit & Spindle Coolant Ring, Heat Exchanger for cooling inside electrical cabinet, Alarm & Work Light, Spindle Air Blow to clean tool, Four screw type chip augers, Coolant Thru the Spindle Preparation, Spindle Oil chiller, BOX way all Axis, Chain Type Chip Conveyor w/Big Tank

Specs
X
60"
1,524 mm
Y
29.9"
759.46 mm
Z
28.3"
718.82 mm
Power
47 hp
35 kW
RPM
8,000 RPM
8,000 RPM
# ATC
40
40
Taper
CAT 50
CAT 50
Table-W
29.5"
749.3 mm
Table-L
61"
1,549.4 mm
# Axis
3
3
Control
CNC (• Fanuc 0i-MF Plus Controller)
CNC (• Fanuc 0i-MF Plus Controller)
