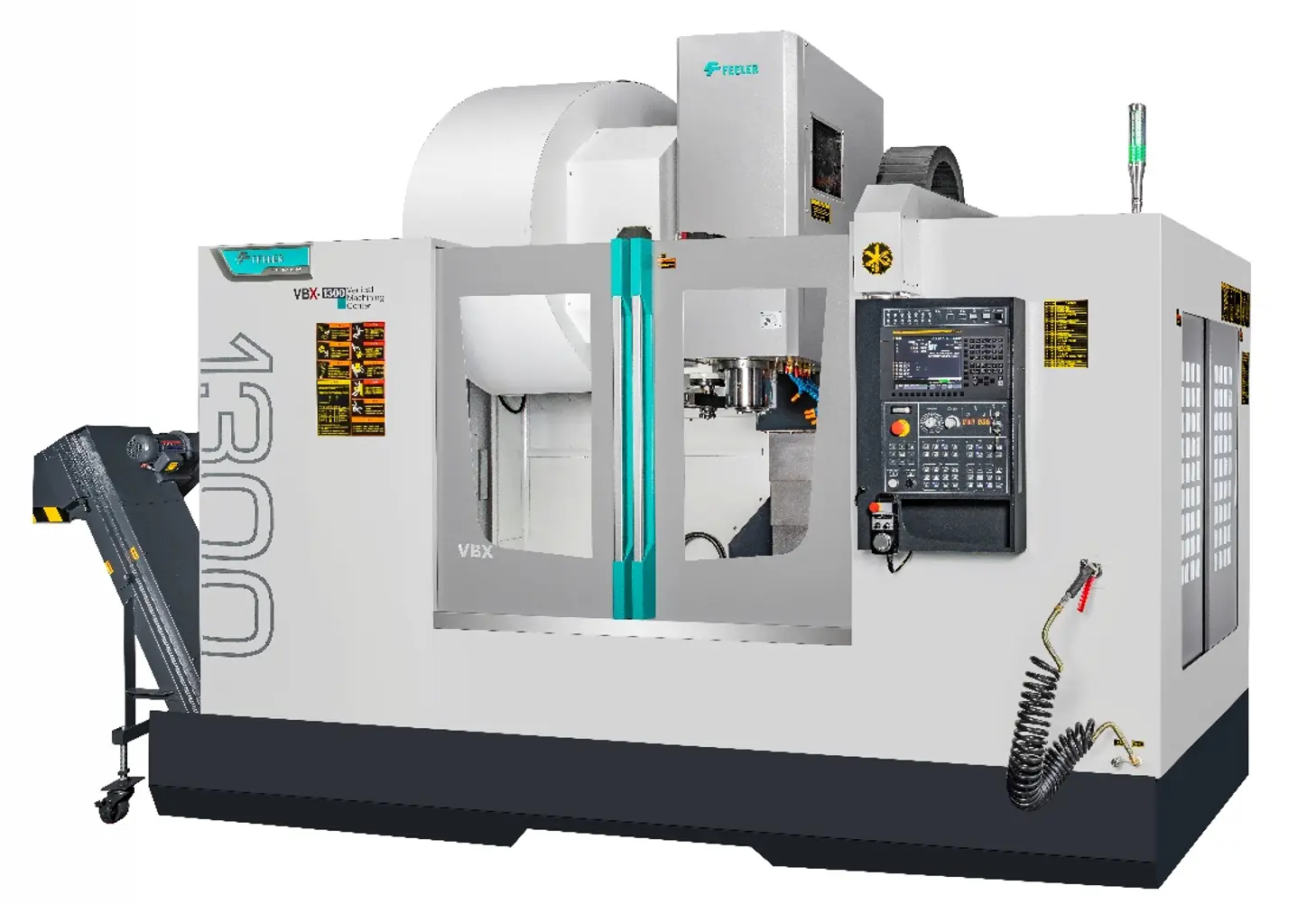

Travels : X = 1,300 mm (51.2”), Y = 610 mm (24”), Z = 600 mm (23.6”), Fanuc 0i-MF Plus with 10.4" LCD & Manual Guide i, αil15 15/18.5/30 (S3/S6 15%)kW Spindle Motor, 6000rpm Spindle with Oil Cooler, GTP Gearbox, CAT #50 Dual Contact (MAS-I Pull Stud), X/Y/Z Travel: 1300/610/600 mm, Rapid Traverse: 24/24/24 m/min, 30-Tool Arm-Type ATC, Door Interlock, Heat Exchanger, Lubrication System, Leveling Blocks & Plates, 2yr FANUC Warranty, Coolant Through Spindle (C.T.S.) Interface + Top Roof + Electrical Wiring (70bar), Auto Power Off, Rear Side Chip Flushing System with Coolant Gun, Oil-Water Skimmer, Extra 8 M-Codes, Chip Conveyor (without bucket), 2-Sided Chip Screw on Y-Axis, Preparation for 4th Axis Interface (software, wiring, & corrections with socket), Front Door Interlock (lock type), 2 Side Door Interlocks (4 interlocks; 2 interlocks per door)
| X | 51.2" | 1,300.5 mm |
| Y | 24" | 609.6 mm |
| Z | 23.6" | 599.44 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT 50 | CAT 50 |
| Table-W | 23.6" | 599.44 mm |
| Table-L | 59" | 1,498.6 mm |
| # Axis | 3 | 3 |
| Control | CNC (• Fanuc 0i-MF Plus Controller) | CNC (• Fanuc 0i-MF Plus Controller) |
