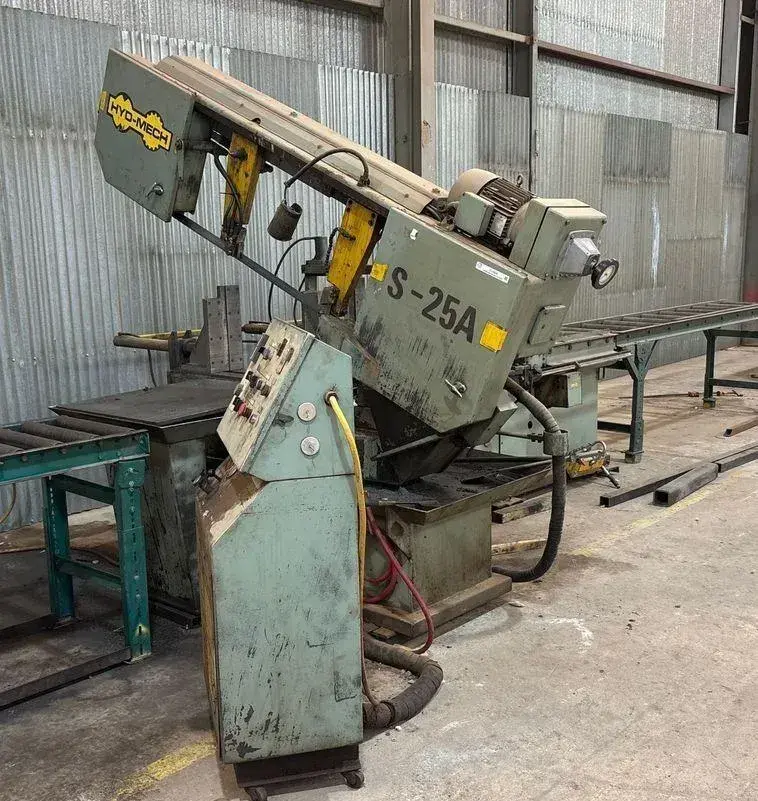

HYD-MECH Mitering Automatic Horizontal Bandsaw Model S25-A, Capacity 18" x 27"
The HYD-MECH S25A is a heavy-duty, fully automatic horizontal swivel-head mitering bandsaw. Key specs include a 18" round/18" x 27" rectangular capacity at a 1-1/2" x 18'10"
blade with a 10HP main motor, and a 3HP Hydraulic motor, and a blade, making it suitable for high-volume production with a 60 degree miter capacity.
HYDMECH, founded in 1978 by Polish immigrant Stan Jasinski in Woodstock, Ontario, is a global leader in metal sawing technology. Originally an engineering consulting firm for forestry equipment, it pivoted to manufacturing innovative mitering band saws in 1980. It is now a top North American band saw manufacturer.
| Rect-Cap (H) | 18" | 457.2 mm |
| Rect-Cap (W) | 27" | 685.8 mm |
| Rounds-Cap | 18" | 457.2 mm |
| Square-Cap | 27" | 685.8 mm |
| Power | 10 hp | 7.5 kW |
| Type (Auto, Manual, Semi) | Auto | Auto |
| Blade Width | 1.5" | 38.1 mm |
| Blade Thickness | 0.05" | 1.27 mm |
| Blade Length | 226" | 5,740.4 mm |
| Dimensions | 90" x 106" x 63" | 90" x 106" x 63" |
| Weight | 4,850 lbs. | 4,850 lbs. |
MODEL ......................... S-25A
ROUND CAPACITY ................ 18" DIAMETER
RECTANGULAR CAPACITY .......... 18" H X 27" W
CAPACITY @ 45 DEGREE ANGLE .... 18" DIAMETER
CAPACITY @ 30 DEGREE ANGLE .... 12" DIAMETER
BLADE WIDTH ................... 1.5"
BLADE LENGTH .................. 18'10"
BLADE SPEED ................... 75 TO 400 SFM
BLADE TENSION ................. HYDRAULIC
BLADE WHEEL DIAMETER............22"
MITERING ...................... YES
AUTO CYLCE .................... YES
OPERATOR'S CONSOLE ............ YES
WORK LOAD ..................... 8000 LBS
COOLANT ....................... 3.5 GPM
AUTOMATIC FEED STROKE ......... 0" TO 40" SINGLE STROKE
NUMBER OF FEED STROKES ........ 1 TO 99
BLADE DRIVE MOTOR ............. 10 HP
HYDRAULIC DRIVE MOTOR ......... 3 HP
Features: Carbide blade guides, coolant pump, 20 US Gal hydraulic tank
