KMA-3 SHARP HEAVY-DUTY BED TYPE VERTICAL MILL - 20” X 87” Table - Align Power Draw Bar - 59” X - 24” Y - 27.6” Z - NST #50 Taper
| Table-W | 20" | 508 mm |
| Table-L | 87" | 2,209.8 mm |
| Travel-Long | 24" | 609.6 mm |
| Travel-Cross | 59" | 1,498.6 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 1,500 RPM | 1,500 RPM |
| Taper | NST 50 | NST 50 |
| Dimensions | 14’7” x 8’4” x 9.5” | 14’7” x 8’4” x 9.5” |
| Weight | 15400 | 15400 |

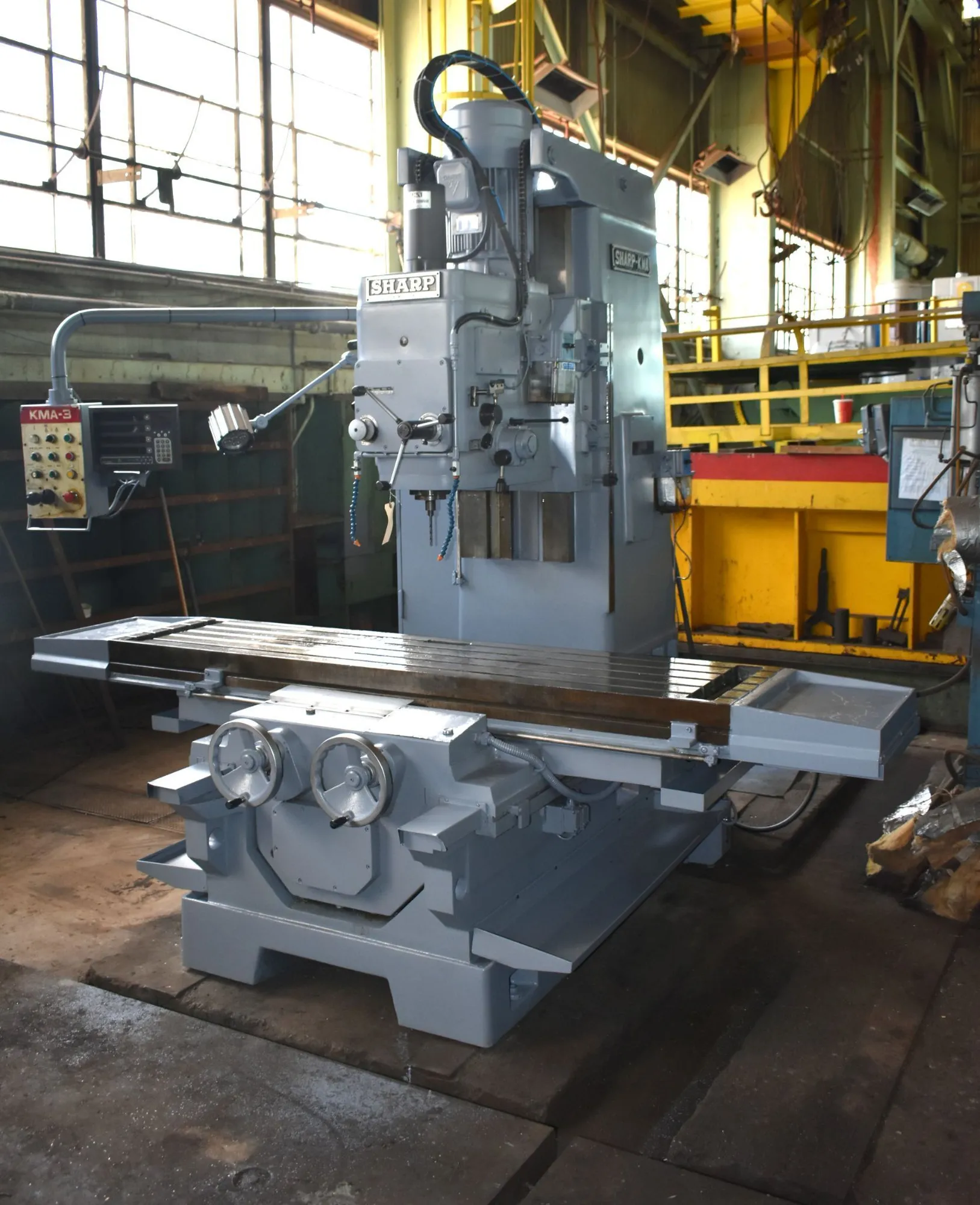

KMA-3 SHARP HEAVY-DUTY BED TYPE VERTICAL MILL
Serial No 5504, Model KMA-3, SerieS Bed Type
EQUIPPED WITH:
Newall DP 1200 3-Axis Digital Readouts
Align Power Drawbar w/Foot Pedal Control
Pendant Control w/4-Way Toggle Control Power Rapid
Double Nut Backlash Eliminator
Hardened And Ground Box Ways
Pneumatic Locks On Spindle, Table, Saddle
Eye Level Tri-Lever Handle Vertical Head Control
Coolant System (Built-In)
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 20" x 87"
Table Longitudinal Travel (X-Axis) 59"
Saddle Cross Travel (Y-Axis) 23.62"
Spindle-Head Vertical Travel (Z-Axis) 27.56"
Spindle Taper #50 NST
Spindle-Nose to Table, Minimum 3.93"
Spindle-Nose to Table, Maximum 31.5"
Spindle Speeds, Range 45 to 1500 RPM
Spindle Center to Column 21.625"
Longitudinal and Cross Feeds 1.125 to 39.375 IPM
Vertical Head Feeds, Range .002 to .008 IPM
Power Rapid Traverse, Long & Cross 130 IPM
Spindle Motor, Horsepower 20 HP
Table Feed Motor, Horsepower 2 HP
Electrical System 220-440/3/60
Floor Space Required, W x D 14’7" x 8'4"
Overall Height 9'5"
Weight, Approximately 15400 LBS
F.O.B. OUR WAREHOUSE
